Product Details:
|
PProduct Name: | Pouch Cell Top&Side Heating Sealing Machine | Top Sealing Times: | 0-99s Adjustable |
---|---|---|---|
Side Sealing Times: | Recommended 3~4s | Sealing Thickness: | 0~0.5mm |
Sealing Length: | 190mm | Sealable Battery Size: | Max L180mmxW180mm(with Air Pocket, With Tab) |
Sealing Width: | 5mm(standard) |

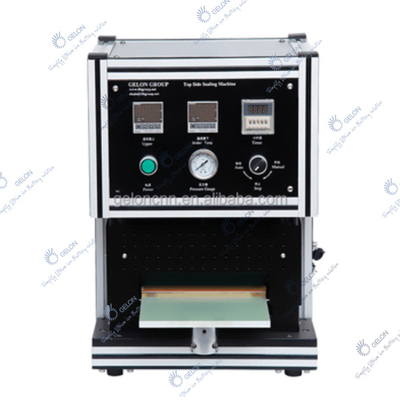

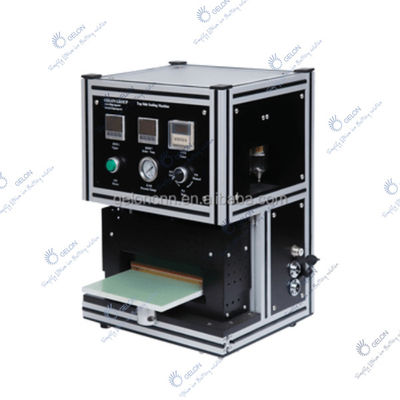

Gelon Lab Pouch Cell Top&Side Heating Sealing Machine Heat Sealer Pouch Cell Assembly Equipment
PRODUCT FEATURE:
1)The machine can be used for different sizes batteries and can be adjusted easily by speed governing (or changing) clamps or adjusting(or changing)end cover.
2)Top and bottom end covers are drove by two cylinders, moving elastically.

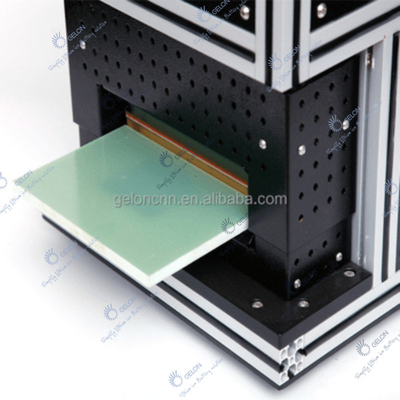

3)The cover is made of copper material, having good heat effectiveness and saving electricity.
4)The pressure of top end cover can be adjusted by valve regulation.
5)The temperature of top and bottom end covers can be adjusted by temperature controller.
6)The machine has the warning function on temperature anomaly.
7)The Machine has great protective function with safety light curtain and double buttons protection.
8)The machine has PLC controller for easily operating.It's light for carrying.
9)The machine's rack is made of aluminium with good-looking.It can take manual operation while testing machine and take PLC auto-operation while bulk producing.
Upper mould soft seal temperature | Recommended 200°C |
Lower mould temperature | Recommended160℃-180℃ |
Power source | AC220V/50Hz.AC110V/60Hz |
Power | 1800W |
Equipment Size | L350mm*W380mm*H520mm |
Equipment weight | Around 42Kg |
