Max 15KW Slot Die Coating Machine Slot Die Coater Process Pouch Cell Assembly Equipment

Description
Product Name: Slot Die Bttery Electrode Coating Machine Application: Battery Electrode Making Machine
Weight (KG): 1500 Warranty: 1 Year
Coating Method 1: Comma Bar Coating Coating Method 2: Slot Die Coating
Power: Max 15KW Gas Supply: 0.6-0.8MPa
Coating Enviroment Temperature: 23 Coating Humidity: 45%RH
Power Supply: 380V 50Hz Brand Name: GELON
High Light:

15KW Slot Die Coating Machine

,

Pouch Cell Slot Die Coating Machine

,

Coater Pouch Cell Assembly Equipment

Slot Die Coating Machine Slot Die Coater Process Pouch Cell Assembly Equipment



Equipment function:

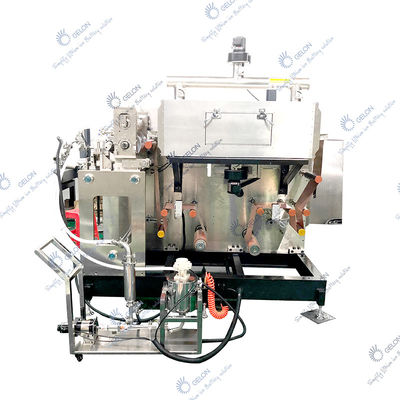

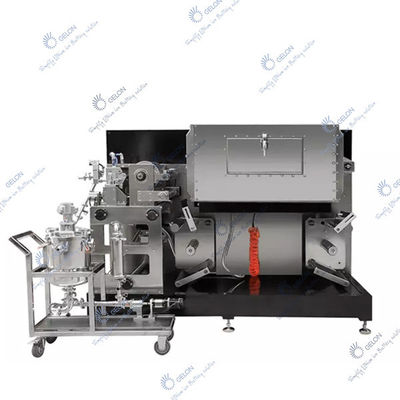

The GN-360S is an all-in-one machine with a variety of coating options to meet different coating process needs. It is mainly used for the surface coating process for lithium battery Cathode and Anode, and it is an experimental coating equipment with high precision and stability. The device can realize two methods of slot die extrusion coating and comma bar coating by switching the coating mode and the coating head assembly,continuous coating and intermittent coating can be achieved. Reserve test communication interface or test system with thickness/surface density; Electrode tension control, constant tension unwinding, constant tension coating, drying; System parameters are centrally controlled, the man-machine interface adopts touch screen and keystroke mode, and hierarchical control, and process parameters can be locked, stored and called.



Modular structure can achieve two different coating methods
1. Comma bar coating method
1) Continuously coating is ok, and its with a wider coating window;
2)Use comma bar with precision adjustment mechanism and micrometer to achieve thickness adjustment;
3) Feeding with trough;

2. Slot die coating method
1) Coating valve cooperating with die gasket, user can achieve continuous coating,intermittent
coating, Strip coating, grip coating, etc;
2) Metering pump feeding, slurry closed operation, user can adjust the feeding amount according to the coating speed;
3) Slot die coating with high coating precision and good coating consistency;
3 .System control
1) The system uses EtherCAT bus control;
2) Substrate closed-loop tension control;
3) Equipped with infrared, unwinding correction, winding correction, and high correction precision;
4) Baking method, hot air oven, hot air circulation, air blowing up, user can get good dry effect;
Substrate Parameters:

Cathode
Anode
Substrate
Aluminum foil
Copper foil
Width (mm)
280-400
280-400
Thickness
11-30
6-30
Slurry Parameters :

Cathode
Anode
Materials
LCO,LFP,LMO,NMC
Graphite,LTO, etc
Solvent
NMP(Oily/DI-water( Water-based)
Proportion of slurry(g/cm3)
1.5~3.0

1.0~2.0
Viscosity(cps)
2000-20000
1000-10000
Binder
Viscosity(cps)
PVDF/SBR
Coating electrode sheet parameters:

Cathode electrode
Anode electrode
Remarks
Dry thickness of single-
sided coating (μm)
50~150
50~150
Related to
Particle size
Coating width (mm)
≤320
≤320

Mechanical speed (m/min)
15m/min
15m/min

Coating speed (m/min)
≥1m/min
≥1m/min
Related to slurry
Coating method
Intermittence coating or continuous coating
Density of one side
coated surface (g/㎡)
35~300
35~300

Oven Partial Parameters:
Drying oven
1 ovens
Total oven length
2m
Oven heat source
Electric heating, hot air circulation structure
Oven temperature
Max150℃, temperature difference Max150℃±5℃ in single oven
Oven materials
Stainless steel, inner tank (SUS304 :1.0mm), housing
(SUS201 :2.0mm)



Max 15KW Slot Die Coating Machine Slot Die Coater Process Pouch Cell Assembly Equipment 0Max 15KW Slot Die Coating Machine Slot Die Coater Process Pouch Cell Assembly Equipment 1



We can also supply:
1.)full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Alumimun foil,copper foils,battery separator,etc.
2.)full set of lithium battery equipments,for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.)full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.



Max 15KW Slot Die Coating Machine Slot Die Coater Process Pouch Cell Assembly Equipment 2

Max 15KW Slot Die Coating Machine Slot Die Coater Process Pouch Cell Assembly Equipment 3
