Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment

Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment
Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment

Large Image :  Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment

Product Details:
Place of Origin: china
Brand Name: Gelon
Certification: ce
Model Number: GN-GB-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD22K/pcs
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

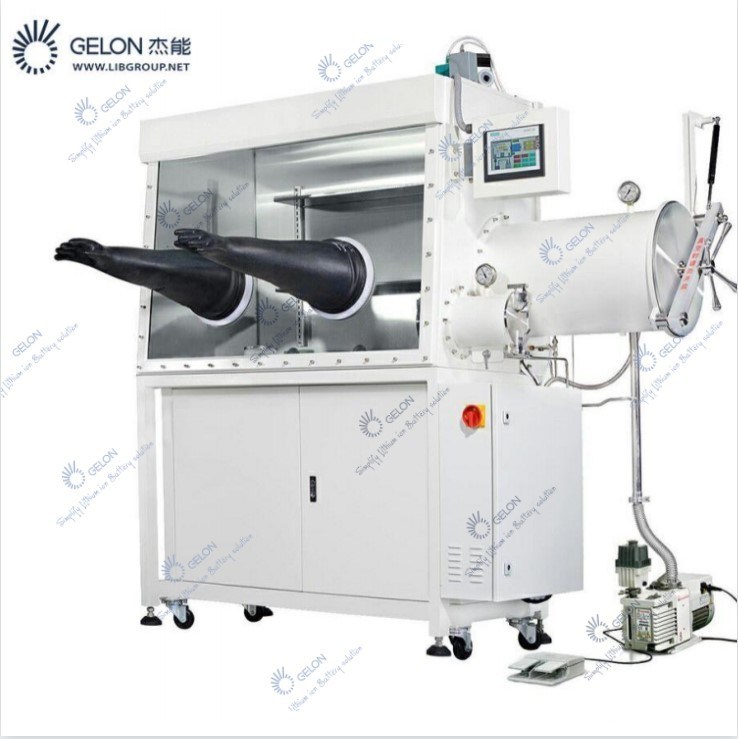

Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment

Description
Product Name: VACUUM GLOVE BOX Application: Control Of Water And Oxygen Content
Usage: Lithium Ion Battery Manufacturing Warranty: 1 Year
Material: 304st.st.,Thickness: 3mm Outside Surface: Painting,White
High Light:

Vacuum Glove Box 304st

,

Lithium Ion Battery Manufacturing Equipment

,

Vacuum Glove Box OEM

Vacuum Glove Box Single Working Station Pouch Cell Assembly Equipment

Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment 0





The Inert Gases will be closed recirculation by Fan and Cleaner, to continuously remove water and oxygen. The materials for dehydration and deoxidization can be regeneration by programmed control. Gasreplacement can be taken by automatic controlled cleaning valve. Box Pressure Control Pressure inner box has PLC controlling, working pressure (+/- 10mbar) can be freely set and auto-protected (exceeding +/- 12mbar).
Closed Box (With Gradient Worktop and Dismountable Safe Glass Window), Pass Box,
Cycling Scavenging Unit, PLC & Touch Panel, Vacuum System, Display System,
Holder, etc.
Including:
1 sets of st. st#304 box, thickness: 3mm, corrosion resisting.
1 sets of vacuum passing box. Dia.: 360mm, Length: 600mm, right side.
1
sets of small passing box. Dia.: 100mm, Length: 300mm, right side.
1 glass
windows with 2 gloves ports
1 pairs of butyl rubber gloves.
1 sets of lighting system.
1 set of power interface inner box
1 sets of high-powered cycling fan.
1 vacuum pumps
PLC & Touch Panel
3 blind flange
Stand wheel
Foot Switch
water analyser
oxygen analyser

Material:
304st.st.,Thickness: 3mm
Internal surface :
Stainless steel wiredraw treat
Outside surface:
Painting,White
Inner Dimension:
L: 1220mm Depth:750mmH: 900mm
Box lighting:
Fluorescent lamp, set above the window.
Filter:
0.3 micron (0.12 micron optional), 1 gas entrance and 1 gas exist.



Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment 1Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment 2Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment 3

Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment 4
