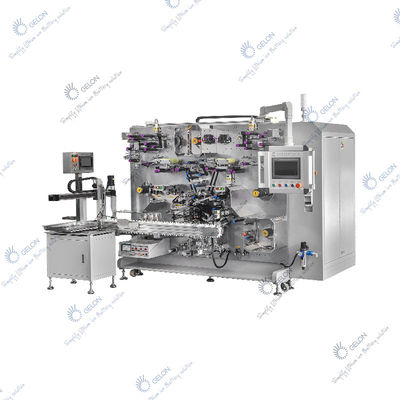

Pouch Cell Assembly Equipment18650 Cylindrical LFP battery Automatic Winding Machine for Lithium Battery Production Line

Large Image : Pouch Cell Assembly Equipment18650 Cylindrical LFP battery Automatic Winding Machine for Lithium Battery Production Line

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	30000usd-40000usd
Packaging Details:	Standard export package
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1 set /month

Contact Now

Pouch Cell Assembly Equipment18650 Cylindrical LFP battery Automatic Winding Machine for Lithium Battery Production Line

Description

Name:	Automatic Winding Machine	Application:	Cylinder Cell Electrode Winding

Pouch Cell Assembly Equipment18650 Cylindrical LFP battery Automatic Winding Machine for Lithium Battery Production Line

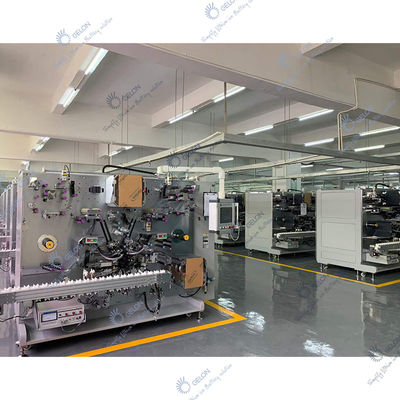

Pouch Cell Assembly Equipment18650 Cylindrical LFP battery Automatic Winding Machine for Lithium Battery Production Line 0

 The equipment is used for automatic winding of digital lithium battery core, which is one of the key equipment of battery

production. adopt three-winding needle and three-station winding, Coordination of equipment operation, fast winding speed, the failure rate is low. uses the servo system to closed loop control the positive and negative electrode and separator tension, realizing the coil-by-turn tension during the winding process, effectively preventing the deformation of battery core’s the latter process.

The PLC interface design is humanized and scientific, and can display the fault location.

			Accuracy

			±0.3mm

			Production efficiency

			≥10PPM

			Suitable cells size

			T: 2-10mm

			W:40-100mm

			H: 40-160mm

			Electrode length

			800-2500mm

			Air source

			0.5Mpa

			Operation Ratio

			≥95%

			Size

			2500mm*1700mm*1350mm

			Yield rate

			≥98%

			Winding needle number

			Three

			Power Supply

			380V 50Hz

			Air flow

			100L/min

			Environmental temperature

			-40°~+45°
