Product Details:
|
| Product Name: | Lithium Ion Battery Automatic Continuous Slitting Machine | Type: | Automatic |
|---|---|---|---|
| Running Speed: | 0-50m/min(continu Ous Adjustable） | Slitting Type: | Disk Cutters Multiterm Roll Shear Continuously At The Same Time |
| Slitting Electrode Thickness: | 50-300micron | Slitting Width Precision: | ±0.05mm |
| Dimension: | 2650*1900*2000mm | Weight: | 3.5T |
| High Light: | 26650 Battery Production Equipment,18650 battery slitting machine,Continuous Battery Production Equipment |
||

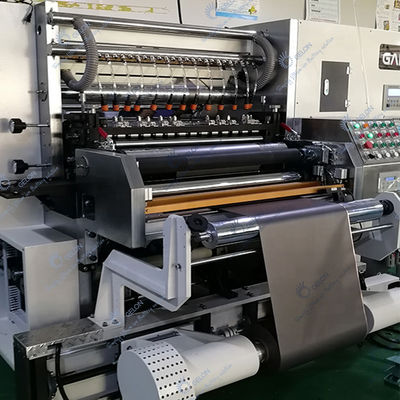

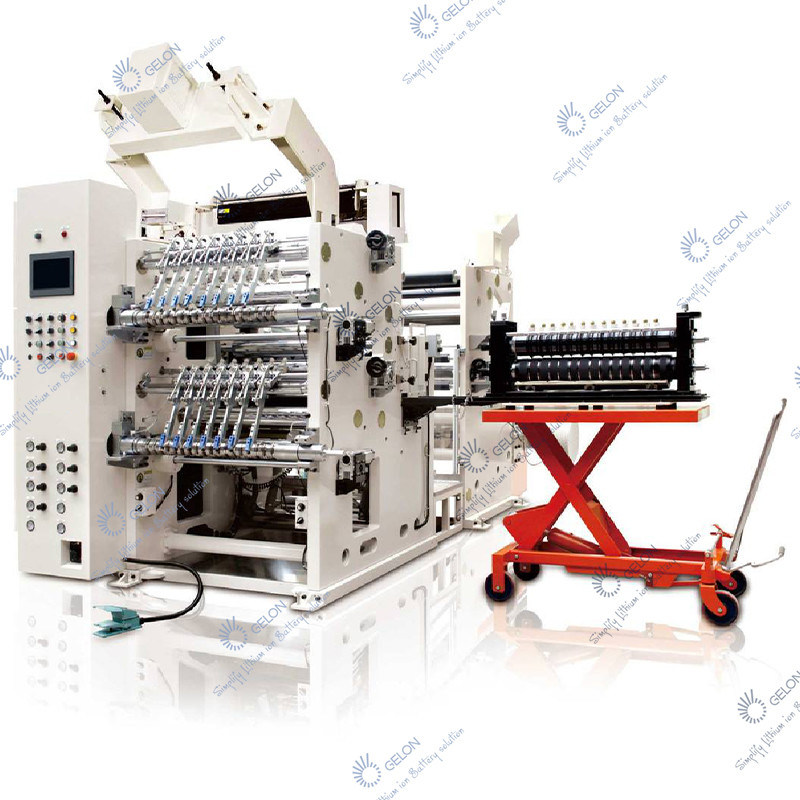

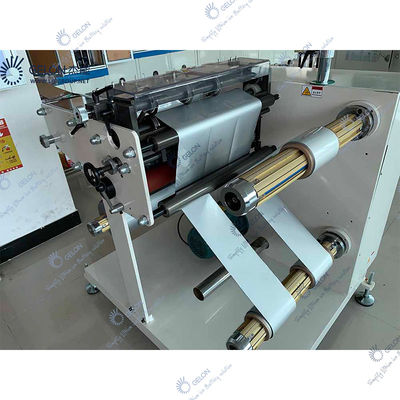

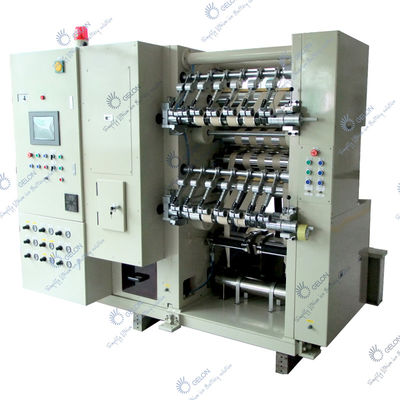

18650 26650 Lithium Ion Battery Automatic Continuous Slitting Machine Battery Production Equipment
1.It is used for normal lithium ion battery electrode, EV battery electrode and super capacity electrode
slitting.
2.It adopts French un-winder tension system, adjustable constant tension un-winder with digitizing, the electrode tension is stable, and the tension control precision is high, also with high precision EPC system. It also could cut little undesirable
electrode, so the adaptability for electrode is good.
3.Re-winder in slip frequency shaft way, it has constant tension or taper to adjust the tension re-winder mode, and with the auto-tracker for neat, steady and un-wrinkle.
4.Adopts switching cutter module, also could be ordered several modules with customers’ request. It could achieve the battery typetransform speediness, easy to operate and maintain, high efficiency.
5.PLC control
| Running speed | 0-50m/min(continu ous adjustable) |
| Application | Lithium ion Battery Production Machine |
| Slitting electrode thickness | 50-300micron |
| Slitting type | Disk cutters multiterm roll shear continuously at the same time |
