18650 Cylinder Battery Production equipment 4680 Battery Winding Machine

Description
Product Name: 4680 Battery Winding Machine Production Capacity: ≥15ppm
OEE: ≥75% Equipment Failure Rate: ≤2%
Qualification Rate: ≥ 99.5% (after The Official Production Of Equipment Mechanism1: Electrode Automatic Unwinding Mechanism
Mechanism2: Automatic Tape Splicing Mechanism For Electrode Biaxial Reel Change Mechanism3: Automatic Correction Mechanism Of Electrode And Separator
Mechanism4: CCD Mechanism5: Electrode Dust Removal And Iron Removal Mechanism
Warranty: One Year
High Light:

18650 Cylinder Battery Production Equipment

,

4680 battery winding machine

,

15ppm Battery Production Equipment

4680 Multi Tab Battery Equipment 4680 Battery Production Line 4680 Battery Automatic Winding Machine

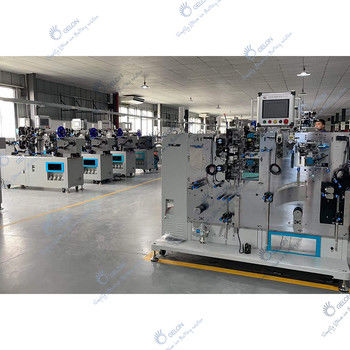

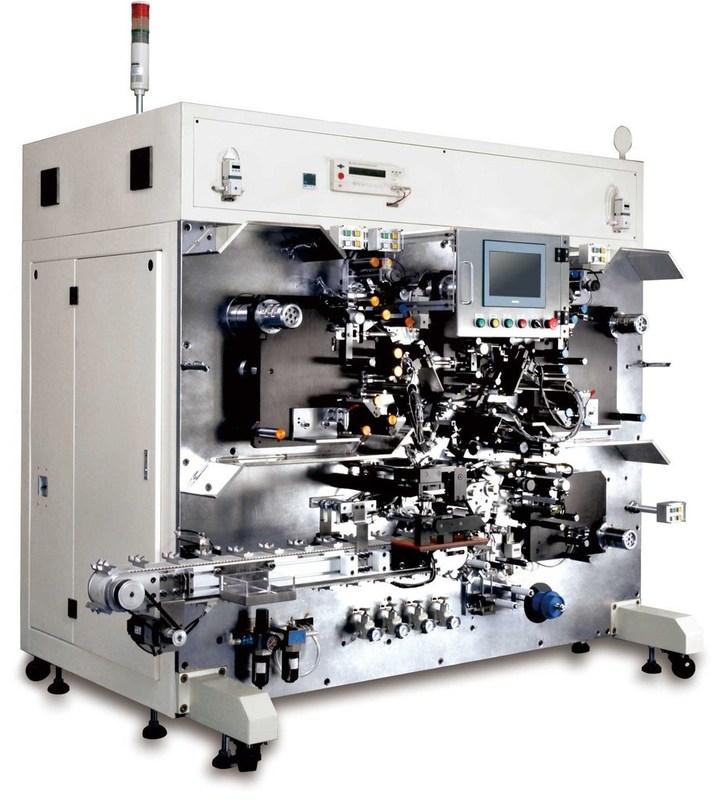

This equipment is an automatic lithium-ion battery cell winding machine for power lithium battery cells, which is mainly used for the winding and forming of cylindrical cells. This equipment adopts a three-roll three-station needle winding structure;



Equipment configuration

1. Equipment size: about 5800mm (length) × 1800mm (width) × 2450mm (height); (excluding the fan, for reference only, the final equipment size is subject to the actual design).

2. Workshop ceiling net height from floor surface: ≥ 2600mm (total equipment height ≤ 2550mm).

3. Equipment weight: about 12.3T (equipment installation site ground bearing ≥ 1000KG/㎡).

4. Appearance color: standard ; or customer provided color plate (made according to customer color plate).

5. Working power: AC380V±10﹪, power 65KW, frequency 50Hz.

6. Compressed air: 0.5~0.7 MPa, using flow rate about 3000L/min, usage rate 90%.

7. Vacuum source: minimum -60Kpa.

8. Using environment: temperature 10~35℃, dew point below 20℃, no combustible and corrosive gas, no dust (cleanliness not less than 10K Class).

Equipment noise: ≤75db (measured 1m from the outer wall of the equipment)



Adapt to below Incoming materials

material Hang Scroll no. width (mm)

Single piece length

(mm)

thickness

(μm)

Thickness difference (m) Roller diameter (mm) Max outer diameter of coil (mm)

weight

(KG)

Cathode electrode 2 60~150 1600~6000 60~280 ≤3μm Ф76.2±1 Ф 800 Max 200
Anode electrode 2 60~150 1600~6000 60~280 ≤3μm Ф76.2±1 Ф 800 Max 200
Separator 2 60~150 1600~6100 8~25 Ф76.2±1 Ф 600 Max 80
Tape 1 2 10~30 60~120 15~40 Ф76.2±1 Ф 200
