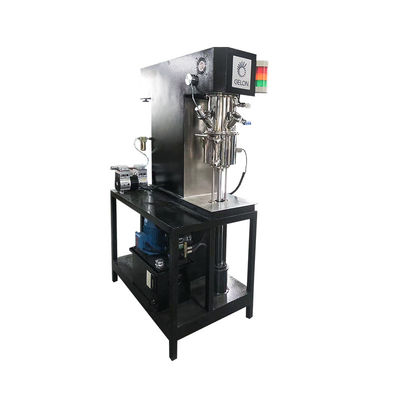

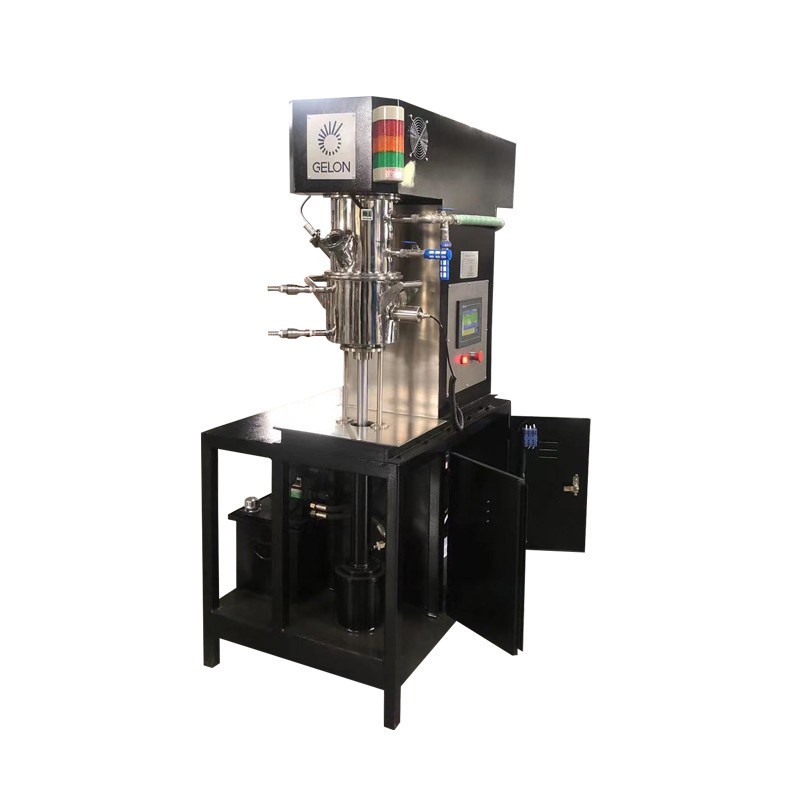

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix
Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix

Large Image :  Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-PM-5L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 13000usd - 16000usd/ set |1 set/sets(Min. Order)
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging.
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram, Western Union
Supply Ability: 1000sets/month

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix

Description
Mixer Type: Planetary Barrel Volume (L): 5L
Material Processed: Lithium Ion Battery Max. Loading Volume (L): 1000 L
Weight (KG): 570 KG Product Type: Mixing Machine, Battery Slurry Mixing
Application: Liquid, Lithium Ion Battery Voltage: 380V
Dimension(L*W*H): 1350*800*1550mm Power (kW): 1.85 KW
High Speed: 0~8800r/min Fast Shaft: Double Fast Shaft With Two Sets Dia 50 Dispersion Disk
Vacuum Degree: -0.098MPa Rotation Speed: 0~102r/min
High Light:

Lithium Ion Battery Mixing Machine

,

5L slurry mixer

,

1000 L Planetary Mixing Machine

Gelon Manufacture Double Planetary Mixing Machine for Slurry mix



Product Description



  • The main parameters of the equipment:

Lower barrel parts



  • Design total volume: 8L
  • Effective volume: 2.7-5L
  • Inner diameter of container: 240mm
  • Inner depth of container: 180mm
  • Container material: the part in contact with the material 304
  • Temperature regulating jacket form: single-layer jacket on the barrel wall, used for cooling or heating; single-layer jacket on the bottom of the barrel, used for cooling or heating
  • Temperature adjusting jacket interface: G3/8", equipped with quick-opening union, jacket pressure resistance ≤0.4MPa
  • Temperature regulating jacket circulation system: customer-provided, it is recommended that the jacket water inlet temperature is ≤8℃, and the cooling water flow is >3.5L/min
  • Discharge form: a 1" downward discharge plunger valve at the bottom of the barrel
  • Design environment temperature: -10~+120°C
  • Movement method: caster movable type
  • List of random wearing parts:



No. Name Specification Material Quantity Remarks
  •
Upper cover sealing rubber ring ΦD×ΦN Silica gel 1 Specifications are matched with corresponding models, according to supplier standards
  •
Sight glass seat sealing ring   Silica gel 2 Specifications are matched with corresponding models, according to supplier standards
  •
Filling port gasket   Silica gel 1 Specifications are matched with corresponding models, according to supplier standards
  •
High-speed mechanical seal   C+SiC 1 Specifications are matched with corresponding models, according to supplier standards
  •
High-speed synchronous belt   Rubber 1set Specifications are matched with corresponding models, according to supplier standards
  •
Scraper   Teflon 1 Specifications are matched with corresponding models, according to supplier standards
  •
Sight glass   Tempered 2pc Specifications are matched with corresponding models, according to supplier standards

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 0Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 1

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 2

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 3

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 4Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 5Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 6Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 7

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix 8
