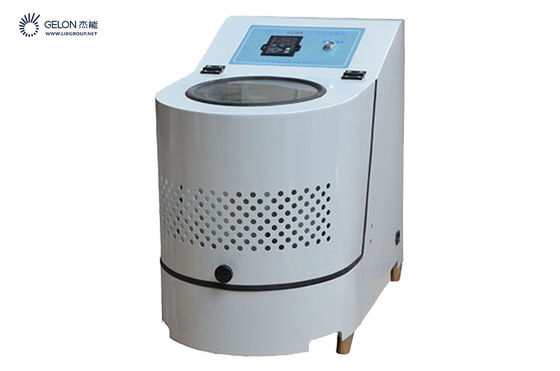

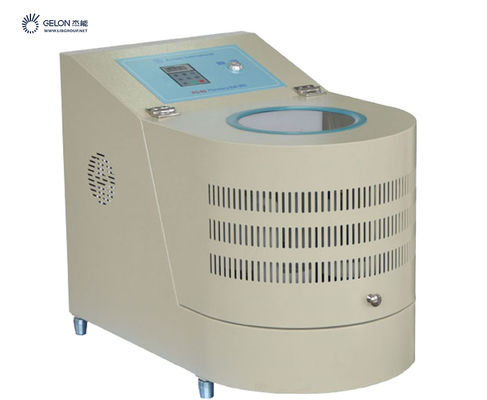

GN-XGB2 planetary ball mill can be dry, wet two different milling methods or mixed grain size, different types of solid materials particles, suspensions and pastes. Vacuum tank as ball milling or grinding may be mixed in a vacuum or inert gas in the sample.
The ball mill is widely used in geology, metallurgy, soil, building materials, chemicals, light industry, medicine, electronics, ceramics,pool, environmental protection and other fields.

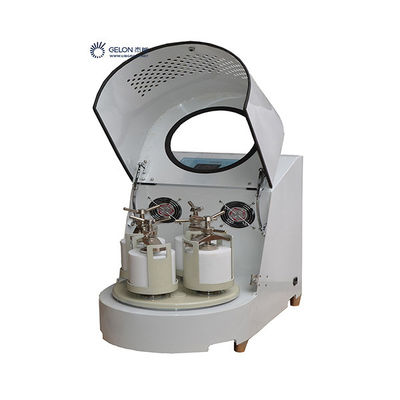

GN-XGB2 planetary ball mill has four ball milling tank on a turntable when the turntable is rotated (revolution), driving the ball grinding tank around its own central axis (rotation), thereby forming a planetary motion, by the action of the rotation and revolution, so make tank and abrasive grinding balls hit each other in 2d under the action of centrifugal force, crushing, grinding, mixing experiment samples.

Technical parameters:
1. Each tank maximum loading quantity: milling tank volume three-quarters (including the ball)
Feed particle size: soil material≤10mm, other materials≤3mm
2. The material particle size: minimum to 0.1μm.
Rated Speed: revolution (tape) from 0 to 290 r/min rotation (ball mill jar): 0 to 580 rev/min.
3. Modes: There are five mill controlled by the inverter operating modes.
1). one-way running, stopping from time to time;
2). one-way running, timed shutdown;
3). forward and backward alternately run, timed shutdown;
4). one-way run at regular intervals, timed shutdown;
5). forward and backward alternately run at regular intervals, timed shutdown.
4. Speed adjustment mode: Frequency 0 ~ 50Hz, resolution 1Hz.
5. Control mode: 0 ~ 50Hz (0 ~ 580 r/min) adjusted manually at any time, from 1 to 999 minutes timed run, 1 to 290 minutes timed inversion, timing intervals of 1 to 999 minutes run, 0 ~100 restart operation.
6. Maximum continuous working time: 72 Hour
7. Single-phase ac 220V 0.75 KW
8. Dimensions: 760*480*640 (mm).
9. Weight: 100 (kg)
