Lithium Battery Pouch Cell Stacking Machine with 200mm Max Stacking Layer Length, 1 - 9999 Travel Cycles, and 0.25 - 0.55 MPa Air Pressure

Lithium Battery Pouch Cell Stacking Machine with 200mm Max Stacking Layer Length, 1 - 9999 Travel Cycles, and 0.25 - 0.55 MPa Air Pressure
Lithium Battery Pouch Cell Stacking Machine with 200mm Max Stacking Layer Length, 1 - 9999 Travel Cycles, and 0.25 - 0.55 MPa Air Pressure Lithium Battery Pouch Cell Stacking Machine with 200mm Max Stacking Layer Length, 1 - 9999 Travel Cycles, and 0.25 - 0.55 MPa Air Pressure

Large Image :  Lithium Battery Pouch Cell Stacking Machine with 200mm Max Stacking Layer Length, 1 - 9999 Travel Cycles, and 0.25 - 0.55 MPa Air Pressure

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DP200S
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: USD 28500-31580/PCS
Packaging Details: Wooden Carton
Delivery Time: 4-6 week
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10 PCS Per Month
Contact Now

Lithium Battery Pouch Cell Stacking Machine with 200mm Max Stacking Layer Length, 1 - 9999 Travel Cycles, and 0.25 - 0.55 MPa Air Pressure

Description
Working Voltage: AC220V 50/60Hz, 30mA Stacking Layer Length: 200mm Max.
Fixed Travel Distance: 400mm Travel Cycle: 1 - 9999 Cycles
Suggested Air Pressure: 0.25 - 0.55 MPa (40 - 80 Psi) Net Weight: 70 Lbs
Compressed Sir Source: 0.5MPa~0.7MPa Swing Stroke: 180mm

Lithium Battery Lab Research Machine Pouch Cell Desktop Stacking Machine
Product Overview

GN-DP200S is a semi-automatic stacking machine designed for laboratory research applications. It serves as an ideal tool for stacking multiple layers of cathode & anode electrodes and separators for pouch cell batteries.

Technical Specifications
Working Voltage AC220V 50/60Hz, 30mA
Stacking Layer Length 200mm Max.
Fixed Travel Distance 400mm
Travel Cycle 1 - 9999 cycles
Suggested Air Pressure 0.25 - 0.55 MPa (40 - 80 psi)
Air compressor is not included in the standard package
Product Dimensions Stacking Platform: 550mm(L) x 390mm(W) x 660mm(H)
Control Box: 270mm(L) x 190mm(W) x 280mm(H)
Net Weight 70 lbs
Warranty One Year limited warranty with lifetime support
Complete Lithium Battery Solutions
We provide comprehensive one-stop solutions (turn-key projects) for your lithium battery research and production needs.
Available Materials
  • LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2
  • Graphite (MCMB) and other cathode & anode battery materials
  • Aluminum foil, copper foils, battery separator, etc.
Full Equipment Range
  • Mixing machine
  • Coating machine
  • Oven
  • Rolling machine
  • Welding machine
  • Slitting / cutting machine
  • Winding machine
  • Sealed machine
Technical Support

We offer complete lithium battery technology packages and can design laboratories and production lines according to your specific requirements.

Product Images

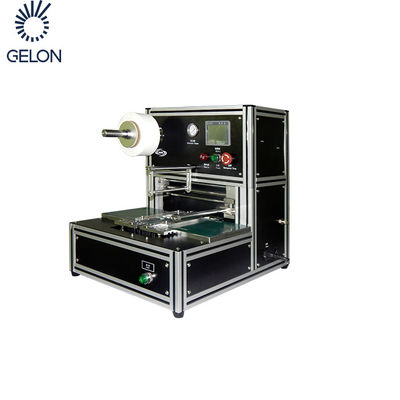

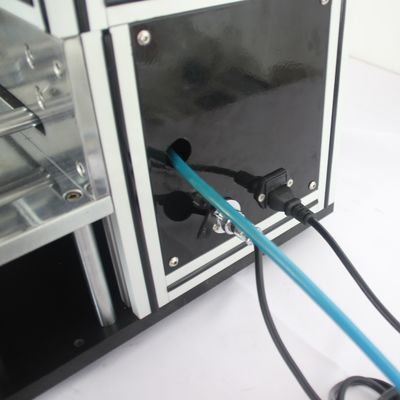

GN-DP200S Desktop Stacking Machine front view GN-DP200S Desktop Stacking Machine side view Lithium battery laboratory equipment setup Battery material processing demonstration Pouch cell stacking process close-up Complete battery research laboratory overview
