Continuous Hydraulic Calendaring Machine Lithium Battery Automatic

Continuous Hydraulic Calendaring Machine Lithium Battery Automatic
Continuous Hydraulic Calendaring Machine Lithium Battery Automatic Continuous Hydraulic Calendaring Machine Lithium Battery Automatic Continuous Hydraulic Calendaring Machine Lithium Battery Automatic Continuous Hydraulic Calendaring Machine Lithium Battery Automatic Continuous Hydraulic Calendaring Machine Lithium Battery Automatic Continuous Hydraulic Calendaring Machine Lithium Battery Automatic

Large Image :  Continuous Hydraulic Calendaring Machine Lithium Battery Automatic

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-HC500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 44000-85000 set
Packaging Details: Standard export package
Delivery Time: 15-20 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 set per month

Continuous Hydraulic Calendaring Machine Lithium Battery Automatic

Description
Product Name: Continuous Hydraulic Calendaring Machine Substrate(Anode): Copper Foil
Substrate(Cathode): Aluminum Foil Foil Width(mm): Max.200-500
Foil Thickness(µm)(Anode): 6~10 Foil Thickness(µm)(Cathode): 12~25
High Light:

Hydraulic calendering machine

,

Battery Automatic Manufacturing Machine

,

Continuous calendering machine

Continuous Hydraulic Calendaring Machine Lithium Battery Automatic Manufacturing Machine



Description:

Equipment function: This battery electrode continuous rolling production line is used for the rolling process of lithium ion battery electrode production, realizes the continuous rolling production of battery electrode coil material, and meets the specifications, size and quality required by the battery electrode process;
Equipment composition: mainly includes unwinding device, tape splicing device, trimming device, dust removal device, iron removal device, heating roller press, winding device, hydraulic system, drive control system, disassembly and assembly roller device, etc.



Specification:

No Item Spec(Anode ) Spec( Cathode )
1 Substrate Copper foil Aluminum foil
2 Coating Graphite,silicon carbon, silicon oxygen, etc LFP,LCO,LMO,NMC etc.
3 Foil width(mm) Max.200-500 Max.200-500
4 Foil thickness(µm) 6~10 12~25
5 Substrate thickness(µm) 6-300 12-300
6 Coil outer diameter(mm) Max.φ500 Max.φ500
7 Coil weight(kg) Max.550 Max.550
8 Rolling thickness accuracy ≤±2μm(feeding≤±2μm) ≤±2μm(feeding ≤±2μm)
9 Winding alignment ≤±0.3mm ≤±0.3mm

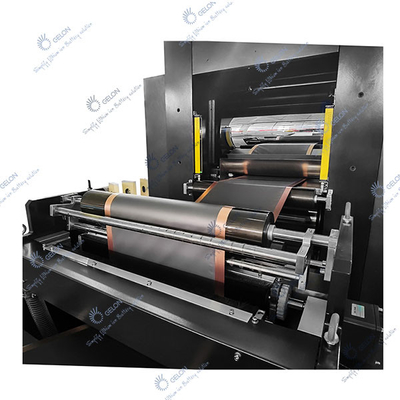

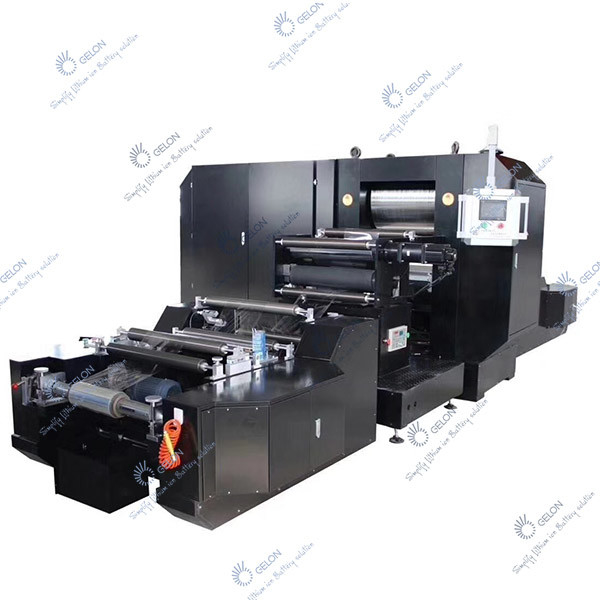

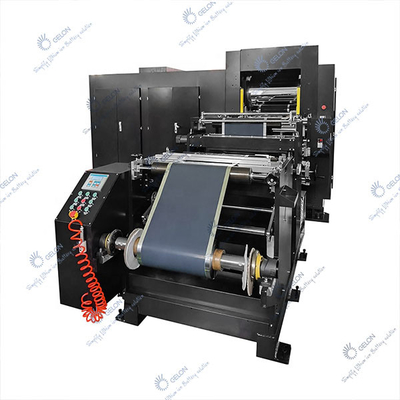

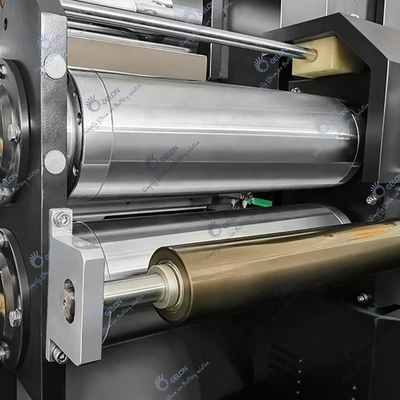

Continuous Hydraulic Calendaring Machine Lithium Battery Automatic 0Continuous Hydraulic Calendaring Machine Lithium Battery Automatic 1Continuous Hydraulic Calendaring Machine Lithium Battery Automatic 2Continuous Hydraulic Calendaring Machine Lithium Battery Automatic 3

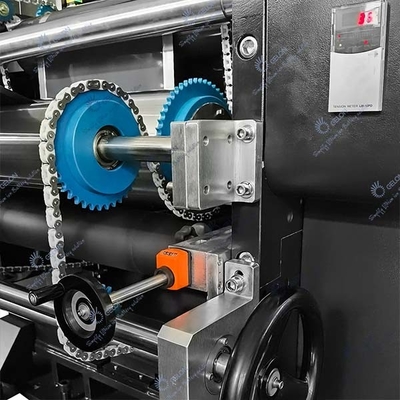

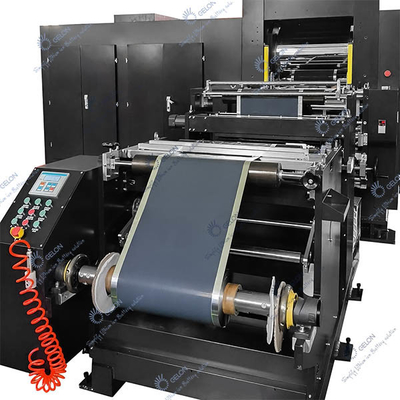

Continuous Hydraulic Calendaring Machine Lithium Battery Automatic 4Continuous Hydraulic Calendaring Machine Lithium Battery Automatic 5Continuous Hydraulic Calendaring Machine Lithium Battery Automatic 6



We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
Any more info, pls kindly contact : mavis@libgroup.net
