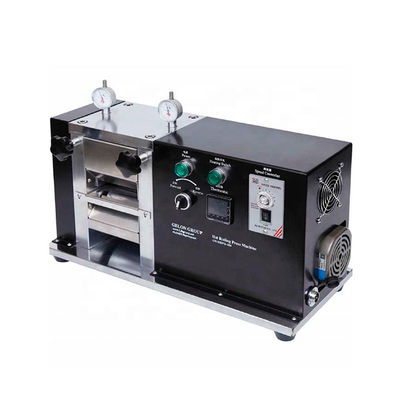

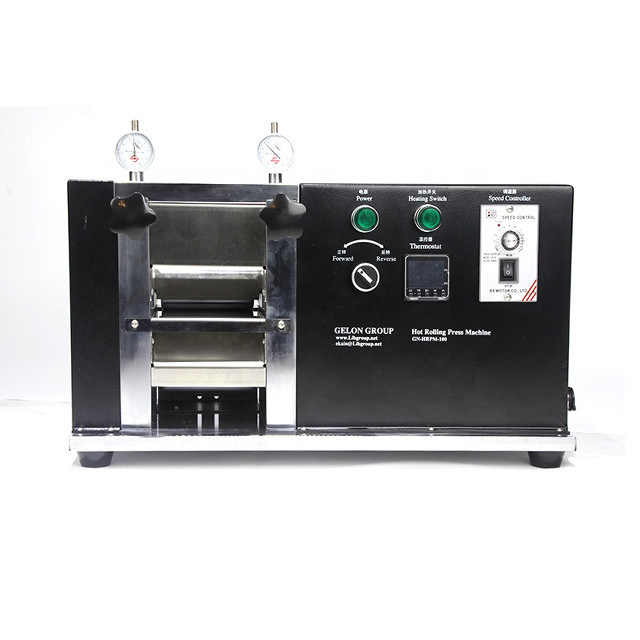

Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine

Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine
Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine

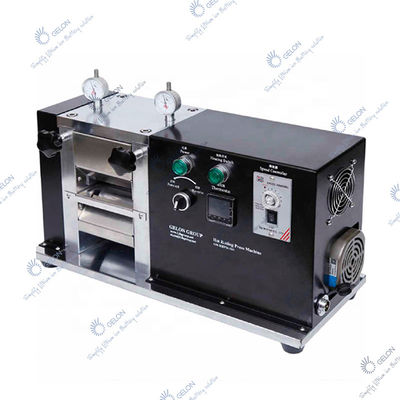

Large Image :  Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine

Product Details:
Place of Origin: china
Brand Name: Gelon
Certification: ce
Model Number: GN-MR-250H
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD2783/pcs
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging
Delivery Time: 15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine

Description
Product Name: Pouch Cell Battery Assembly Product Type: Calendaring Machine
Applicatioin: Electrode Roll And Press Usage: Battery Electrode Making
Warranty: 1 Year Roll Diameter: Φ96mm
High Light:

Lab Pouch Cell Battery Assembly

,

Heating Calendering Machine

,

Pouch Cell Battery Assembly Electrical

Lab Electrical Heating Calendaring Machine Pouch Cell Battery Assembly

Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine 0

Overview

1.This machine is mainly suitable for electric rolling in battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrousmaterials such as copper and aluminum. It is especially suitable for thinning and increasing density of lithium battery plates for clean energy materials.

2.The machine adopts gear transmission to realize roll pressing, rolling thickness can be adjusted, and it is convenient to use.Roll hardness, and surface hard chrome plated, hardness up to HRC62 and rust. Add transparent protective plate, safe to use.

3.Use the ramp to adjust compression gap, since petty good, high precision adjustment. Rolling high precision, vertical design, easy to slice with a material feed rolling.The use of gear rotation, to achieve the roll repression, tablet thickness, the speed can be adjusted, Electric rolling, forming automated, reversing operation



Features

1..Roll hardness, and surface hard chrome plated, not easy to rust.

2.Use the ramp to adjust compression gap, since petty good, high precision adjustment.

3.Tablet thickness can be adjustable, and the forward and reverse rolling functions are designed.

4.The use of gear rotation, to achieve the roll repression.

5.Driven by a speed-regulating motor, equipped with a guide plate for feeding and discharging.



Roll diameter

Φ96mm

Roll gap

0~1.2 mm

Roll width

250mm

Roll effective width

245mm

Roll heating temperature

Max:200℃

Power supply

AC220V/50Hz.110V/60Hz

Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine 1Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine 2

Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine 3

Lab Pouch Cell Battery Assembly Electrical Heating Calendering Machine 4
