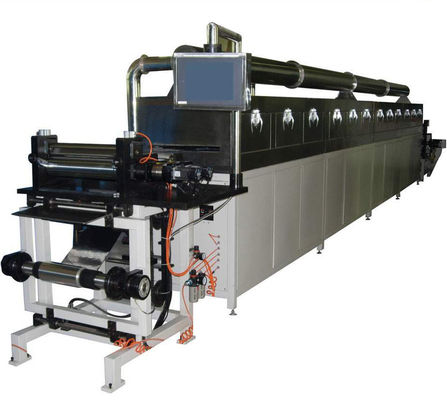

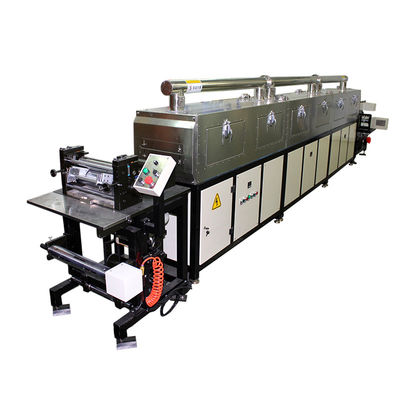

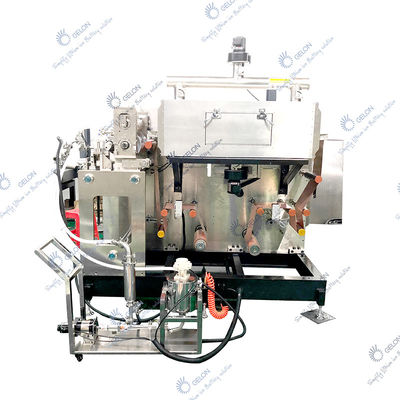

Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine

Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine
Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine
Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine

Large Image :  Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Coating Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$15000~100000 set
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~25days
Supply Ability: 20 set per month

Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine

Description
Name: Coating Machine Automatic Grade: Automatic
Core Components: PLC, Engine, Motor, Coating Material: Copper Foil & Aluminum Foil
Coating Part Humidity: 45%RH (No Condensation) Ground Requirements: Flatness ±5 Mm/㎡, Bearing Capacity 1500kg/㎡
Warranty: 1 Year
High Light:

Lithium Pouch Cell Battery Assembly

,

Auto lithium battery making machine

,

Automatic slot die coating machine

Gelon Lithium Batteries Making Machine Intermittent Doctor Blade Slot Die Coating Machine Battery Production Equipment



Automatic coating machine adopt PLC touch screen to control tension, correction, servo, temperature and other systems, high integration of the mechanical structure and high integrated closed-loop control system , reduce the equipment footprint, energy efficient, suitable for large-scale production of lithium battery production.





Name
Parts
1.Unwinding structure
Adjustable-speed motor,unwinding roller with tension control,auto rectify deviation system and etc
2.Coated floating roller tension structure
Roller,chain wheel,position sensor,counterweight roller
3.Coating structure
Controlled by PLC,feeding system,applicator knife roller,backup roll,drive motor,FOS,precision bearing,and high-performance
pneumatic elements
4.Drying system
Heater,wind machine,exhaust duct and wind hole,heat preservation box,inspection door
5.Take-up structure
Outlet of oven,float roller tension structure,wrap-up driving device and wrap-up tension sensor system.
6.Wrap-up system
Adjustable-speed motor,wrap-up roller and auto rectify deviation system
7.Drying auto control system
1)coating control system:PLC,servo motor,10.4inch color touch screen and FOS
2)Temperature control system:temperature adjustable gauge,thermocouple,heater,relay and etc.
8.Others/customization
1)working table:785*695*48mm,chroming on the surface
2)large bearing:267*220*50mm,chroming on the surface
3)coating roller:Φ117.78*500,circle run-out 0.002mm on the surface
4)Rubber roller:Φ120*500,anti-corrosion rubber
5)Guide wheel:Φ80*500,Al alloy(Surface anodic oxidation)
6)Inflatable shaft:Φ76*500 ,chroming on the surface
Can be customization

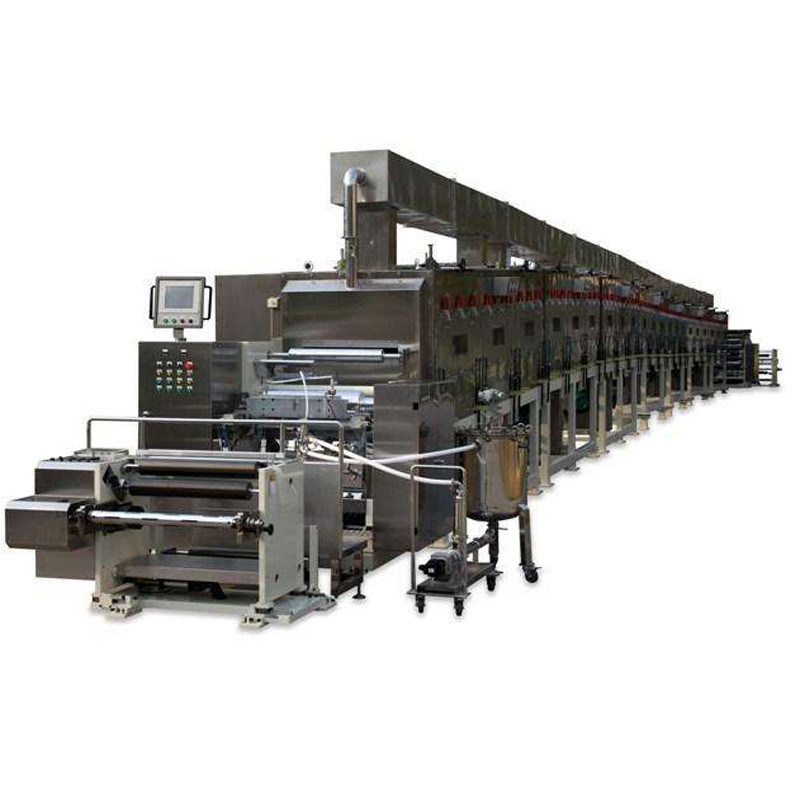

Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine 0Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine 1



Our Services



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.

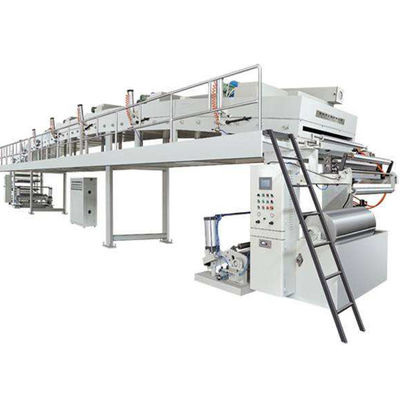

Auto Pouch Cell Battery Assembly Intermittent Doctor Blade Slot Die Coating Machine 2
