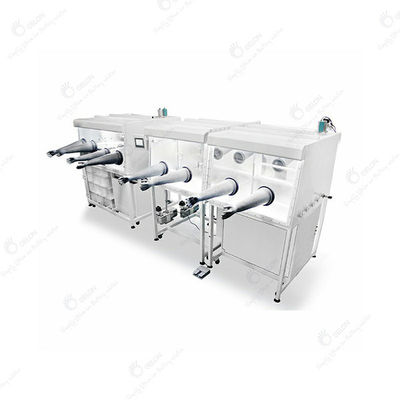

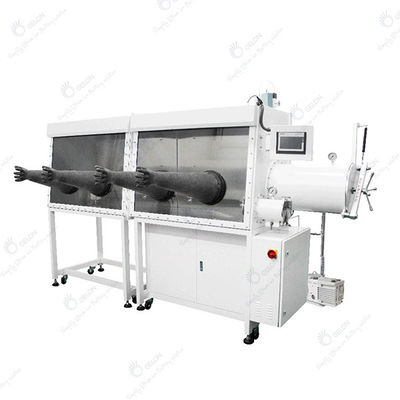

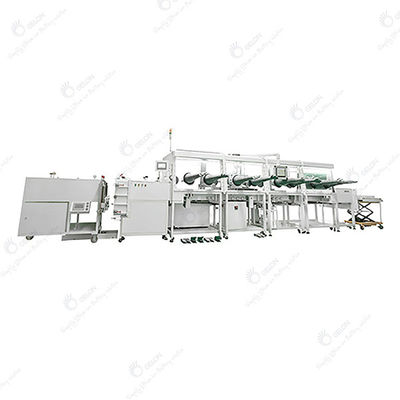

Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine

Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine
Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine

Large Image :  Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-GB-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 35580-39600 set
Packaging Details: Standard export package
Delivery Time: 30 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month

Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine

Description
Product Name: Double Station Glove Box Suitable Substrate: Cathode And Anode Electrode Of Lithiumbattery
Application: Remove Water And Oxygen Continuously Customize: YES
MOQ: 1 SET Other Equipments: Battery Coating Machine, Electrode Winding Machine,slurry Mixing Machine...
Technical Support: Yes, According To Customer's Request Voltage Input: AC220V/50HZ
High Light:

Stainless Steel isolation glove box

,

Glovebox Battery Making Machine

,

Double Station isolation glove box

Stainless Steel Double & Four Station Glove Box Battery Making Machine

 The intelligent system of the Internet of Things can be installed to realize the mobile control and centralized management of the glove box, which is safe and secure. It has real-time synchronization of equipment status, equipment data report records, historical data can be inquired, alarm messages are actively notified, equipment remote debugging, fault online diagnosis and online repair, online customer service and other intelligent functions.

Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine 0
Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine 1

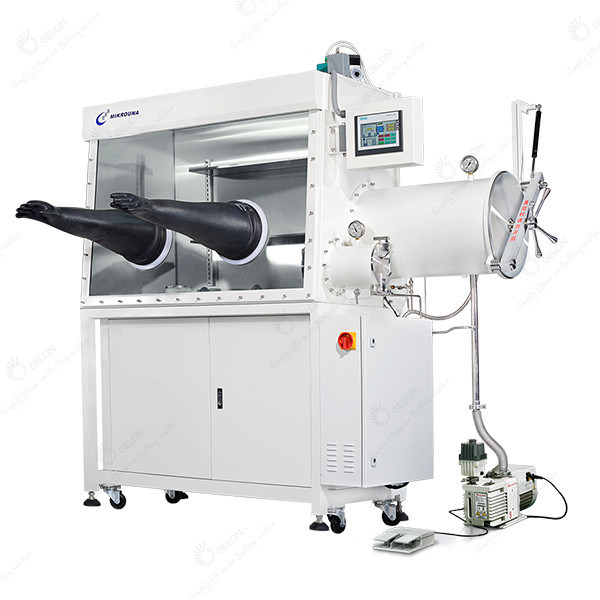

Glove box
Box Material: 304 stainless steel, thickness 3mm
  Outer surface: 304 stainless steel
  Inner surface: oil film drawing surface
  Dimensions: length 1220mm, depth 750mm, height 900mm
Front window Tilting window: transparent toughened safety glass, thickness 8mm
Glove mouth Material is POM or aluminum alloy; O-ring seal
gloves Butyl rubber: thickness 0.4mm, diameter 7'' or 8''
filter Specification: 0.3μm, one gas inlet and one gas outlet
Shelf Material: stainless steel, built-in 2 layers, height adjustable
Cabinet lighting Location: LED light, installed in the lampshade
interface Specification: DN40KF, several spare interfaces, 1 power interface (220V)
Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine 2
Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine 3


Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine 4Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine 5Stainless Steel Double / Four Station Isolation Glove Box Battery Making Machine 6

What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.
2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
