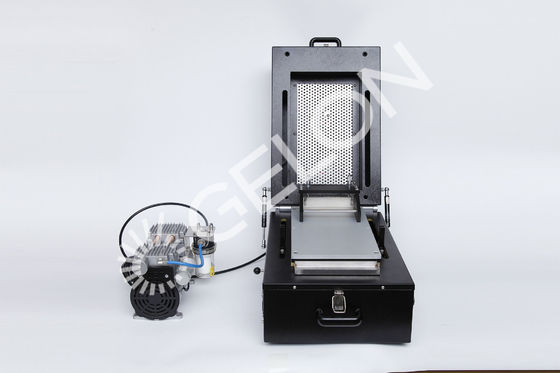

Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating

Large Image : Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-VC-10

Payment & Shipping Terms:

Minimum Order Quantity:	1/PCS
Packaging Details:	Wooden Carton
Delivery Time:	4-6 week
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 PCS Per Month

Contact Now

Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating

Description

Size:	For Lab	Width:	100-250mm
Power:	1kw	Dry Temperature:	100 Degeree Or To Be Request
Vacuum Pump:	Contains	Speed:	10-100mm/Sec Variable
Coating Length:	250-1000mm	Max Coating Width:	300mm
Highlight:	Lab Automatic Film Applicator , lithium ion battery manufacturing machines , 250mm Automatic Film Applicator

Lab Automatic Film Applicator Coating Machine

The GN-1000 automatic battery coating machine equipment is designed for laboratory use in lithium battery manufacturing. This precision equipment produces consistent thickness films with integrated heating and vacuum systems, making it ideal for research on ceramic tape castings and Li-Ion battery electrode coating.

Key Features

Coater width range: 10-200mm
Integrated dryer and vacuum pump system
Digital temperature control up to 200°C with ±1°C accuracy
Flat vacuum chuck for secure substrate placement

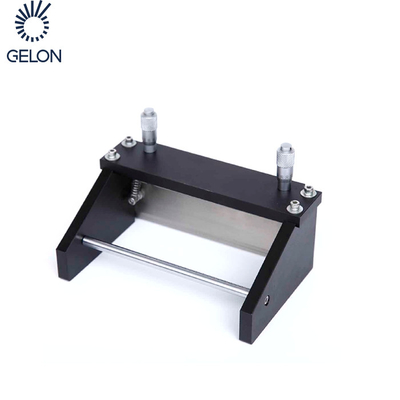

Adjustable micrometer applicator (0.02-3mm range)
Oil-free vacuum pump included
Portable and space-saving design

Technical Specifications

Item	Parameter
Machine Size	430mm(h) × 310mm(w) × 930mm(l)
Effective Coating Area	140mm(w) × 250mm(l)
Power Consumption	400W (heating power 300W)
Electric Supply	110V
Temperature Precision	≤ ±1°C
Heating Method	Electric heating, heat conduction
Coating Speed	0-100mm/s
Scraper Adjustment Range	0.02-3mm
Vacuum Plate Size	320mm(L) × 200mm(W) × 30mm(H)
Machine Weight	Approximately 22kg
Coating Route	250mm

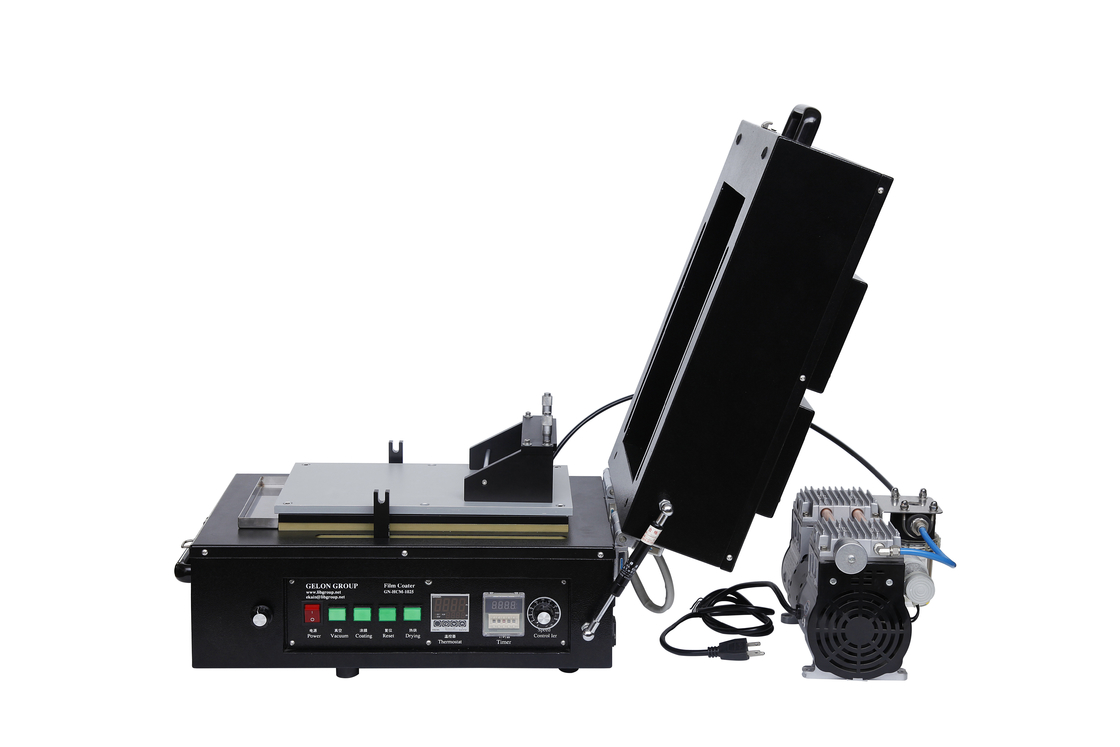

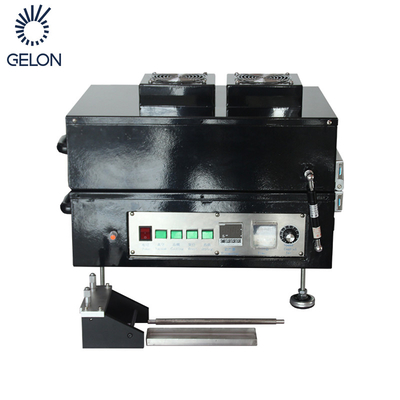

Product Images

Application Summary: This equipment is designed for small-scale coating applications in laboratory environments. It can complete cathode/anode coating processes and perform initial baking. The portable and flexible design makes it the ideal equipment for research and development laboratories.

Additional Characteristics

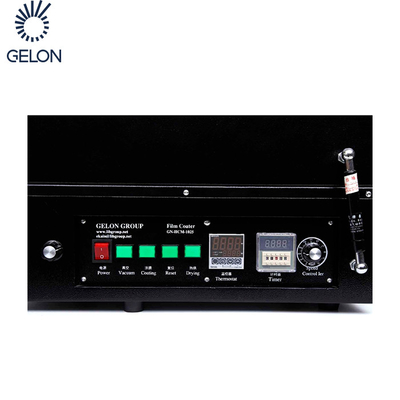

Digital display temperature control with maximum temperature of 200°C
Digital timer for precise drying time settings

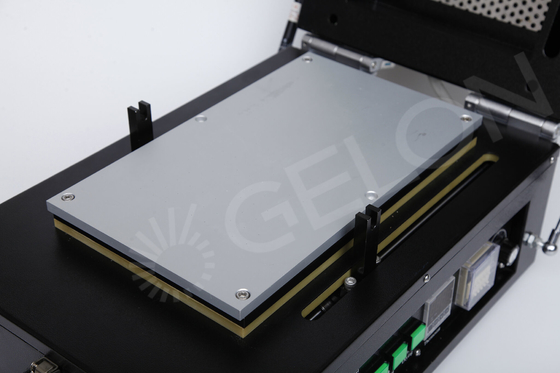

Vacuum aluminum plate for quick foil placement and removal
Adjustable coating stroke from 10-250mm
Precision applicator with 0.01mm thickness adjustment
Compact design for space-efficient laboratory use
Standard coating width of 100mm (custom specifications available)
