0.1mm-0.2mm Battery Materials for Pouch Cell Battery Assembly with Customizable Width and Length and Imported Glue Options

Large Image : 0.1mm-0.2mm Battery Materials for Pouch Cell Battery Assembly with Customizable Width and Length and Imported Glue Options

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	Battery Tabs

Payment & Shipping Terms:

Minimum Order Quantity:	5 KG
Price:	USD 0.2-0.7/PCS
Packaging Details:	Standard Packing
Delivery Time:	4-6 week
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1500kg/Month

Contact Now

0.1mm-0.2mm Battery Materials for Pouch Cell Battery Assembly with Customizable Width and Length and Imported Glue Options

Description

Thickness:	0.1mm-0.2mm	Width:	Customerization
Length:	Customerization	Glue:	White, Black, Yellow
Lead Time:	Within 7days	Supply:	Full Set Of Lithium Battery Materials, Equipments
Highlight:	Lithium Battery Pouch Cell Battery Assembly , 0.2mm pouch cell tabs , Pouch Cell Battery Assembly CE

0.1mm - 0.2mm Battery Materials For Pouch Cell Battery Assembly - Pouch Cell Tabs

Product Overview

Gelon Battery Materials for Lithium Battery Pouch Cell Battery Tabs - premium aluminum and nickel tags designed for optimal performance in pouch cell battery assembly.

Key Features

Advanced Adhesive Technology

Utilizes imported PPa-N (black glue), PPa-F (yellow glue), and PP (white glue) for superior bonding performance between tags and copper-coated nickel, copper, and aluminum metals.

Customizable Dimensions

Available in various lengths and thicknesses to meet specific application requirements.

Premium Materials

Manufactured with aluminum and nickel metals ensuring reliability and durability in battery applications.

Technical Specifications

Parameter	Specifications
Tag Glue Length	4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm, 14mm, 20mm
Tag Glue Thickness	0.072mm, 0.1mm
Colors Available	Black, Yellow, White
Metal Tag Width	1-100mm (customizable according to customer requirements)
Thickness	0.1mm, 0.15mm, 0.2mm, 0.3mm (customizable according to customer requirements)

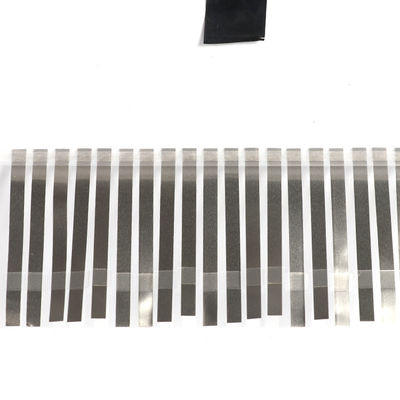

Product Images

Complete Turnkey Solution

We provide comprehensive one-stop solutions for your lithium battery production needs:

Full Set of Lithium Battery Materials: LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2, Graphite (MCMB), aluminum foil, copper foils, battery separator, and other cathode & anode materials
Complete Equipment Line: Mixing machine, coating machine, oven, rolling machine, welding machine, slitting/cutting machine, winding machine, sealed machine, and more
Comprehensive Technology Support: Custom laboratory and production line design according to your specific requirements

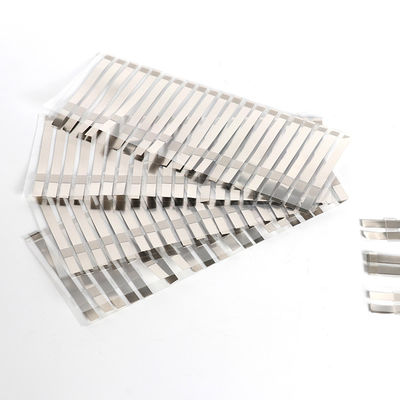

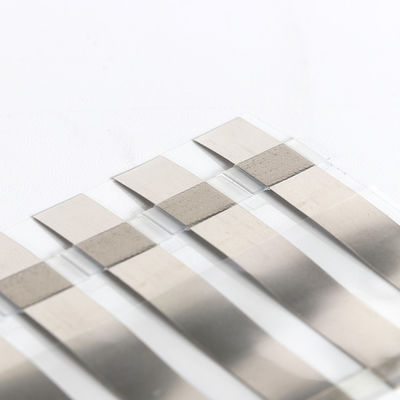

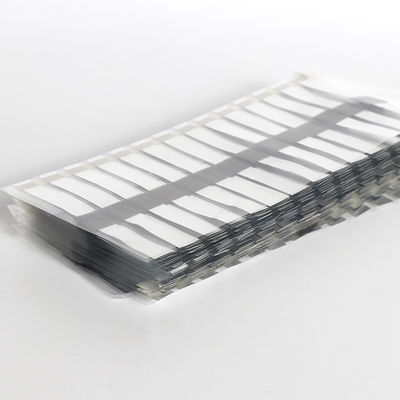

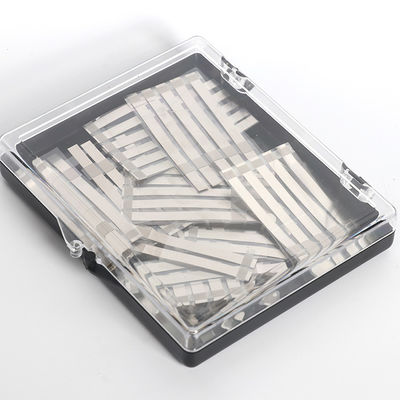

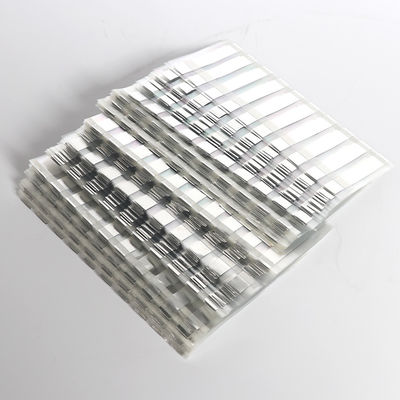

Additional Product Images

Tag:

Contact Person: Ekain Zhang

Tel: +8618669965529

Fax: 86-0539-8067529
