1800W Vacuum Sealing Machine Pouch Cell Pilot Line Equipment Sealer

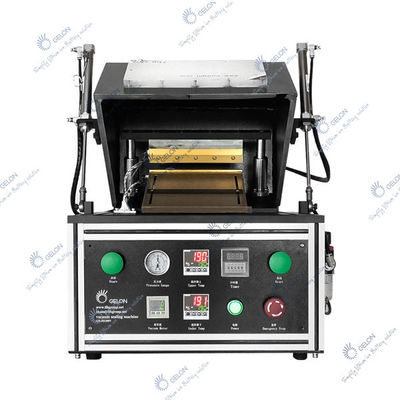

Large Image : 1800W Vacuum Sealing Machine Pouch Cell Pilot Line Equipment Sealer

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-HS300V

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD 3000-6000/pc
Packaging Details:	Wooden box
Delivery Time:	15-30 days
Payment Terms:	T/T, L/C, Western Union,
Supply Ability:	500pcs/month

Contact Now

1800W Vacuum Sealing Machine Pouch Cell Pilot Line Equipment Sealer

Description

Color:	Black Or Customize	Powe Supply:	AC220V/50Hz.110V/60Hz Or Customize
Vacuum Pump Capacity:	≥30m³/h	Power:	1800W
Gas Source:	0.5~0.8MPa Argon, Nitrogen Cylinder, Or 0.7MPa Compressed Air	Function:	Pouch Cell Vacuum Presealing
Highlight:	1800W vacuum sealing machine , pouch cell pilot line equipment , vacuum sealer with warranty

Pouch Cell Pilot Line Equipment Vacuum Sealing Machine Pouch Cell Vacuum Sealer

This equipment is mainly suitable for vacuuming and hot-pressing packaging of flexible packaging (medium and small size) lithium batteries after liquid injection and standing; the head is made of copper material, which has good heat transfer effect, saves power consumption and improves work efficiency. Compared with similar products, it is more energy-saving; the pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

name	Parameters	Remarks
Upper/lower mold temperature	up to 250°C	Free temperature setting
degree of vacuum	The highest is not lower than -95KPa	adjustable
sealing time	0-99s adjustable
Edge time	It is recommended to use 3~4s
Edge thickness	0~0.5mm
edge length	290mm
Sealable battery size	Max L280mmxW280mm	With air bag, with tabs
Edge width	Max.6mm (5mm standard)	Customized according to customer needs

1800W Vacuum Sealing Machine Pouch Cell Pilot Line Equipment Sealer
