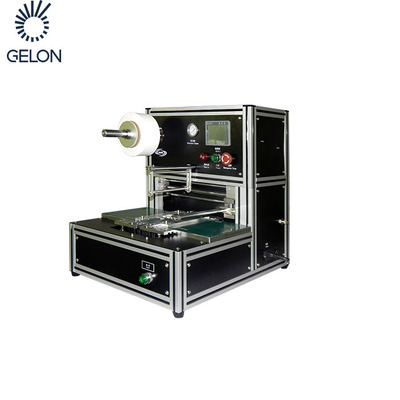

Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment

Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment
Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment

Large Image :  Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DP200S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD8250-8400/SET
Packaging Details: Wooden Case/Can Custom
Delivery Time: about 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Contact Now

Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment

Description
.Correction Accuracy: 0.5mm Separator Width: ≤200mm
Max Separator Diameter: φ250mm Appliable Electrode Size: L（100-200）mm, W（90-200）mm, T：4-12mm；
Tab Length: ≤30mm Swing Stroke: 400mm
Power Supply: AC220V/50Hz Compressed Sir Source: 0.5MPa～0.7MPa
High Light:

Desk Type electrode stacking machine

,

pouch cell assembly 50Hz

,

Semi Auto electrode stacking machine

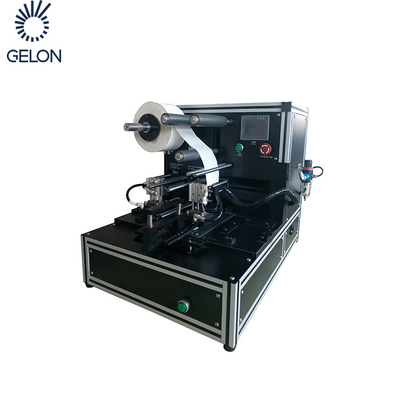

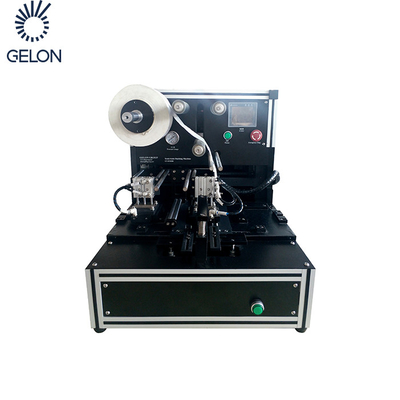

Desk type Semi-auto Stacking Machine Precise Alignment Pouch Cell Lab Line Electrode Stacker Z Stacking Equipment

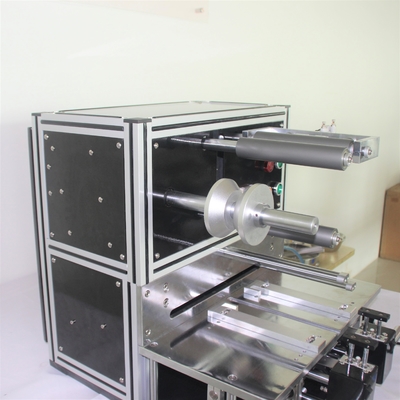

This equipment is suitable for the lamination process of lithium ion battery
electrodes. The equipment adopts a tension roller structure design, automatic
constant tension control of the coil isolation film, and the motor drives the left and
right movement to realize the Z-type lamination. In this way, the entire cell’s
stacking assembling is realized. the separator feeding adopts constant tension, and
there is the automatic correction function of the electrode during the feeding
process, and the feeding is neat and consistent; it has the characteristics of high
stacking efficiency and high precision. Different electrode sizes can be realized by
adjusting the fixture, which is suitable for R&D and sample production of laminated
lithium-ion batteries.
Outer size
L710mm×W670mm×H770mm
NT weight
80Kg



Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment 0Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment 1Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment 2Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment 3Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment 4Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment 5

We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
Any more info, pls kindly contact :Ella@libgroup.net





Tag:

Lithium ion Pouch Cell Pilot Line,

Lab Pouch Cell Pilot Line,

Desktop Pouch Cell Pilot Line
