Product Details:
|
| Color: | Black Or Customize | Power: | 150w ,110V /220V Or Customize |
|---|---|---|---|
| Gas Source: | 0.5~0.8MPa Argon, Nitrogen Cylinder, Or 0.7MPa Compressed Air | Vacuum Pump Capacity: | ≥ 15m³/h |
| Warranty: | 1 Year Warranty, Lifetime Maintenance | Function: | Battery Slurry Preparation |

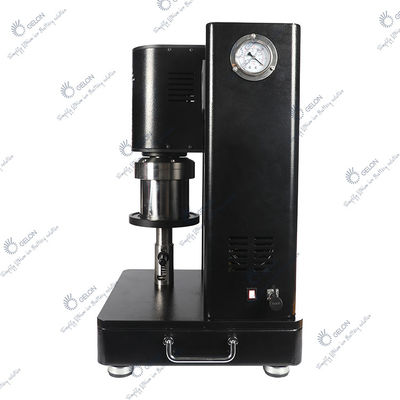

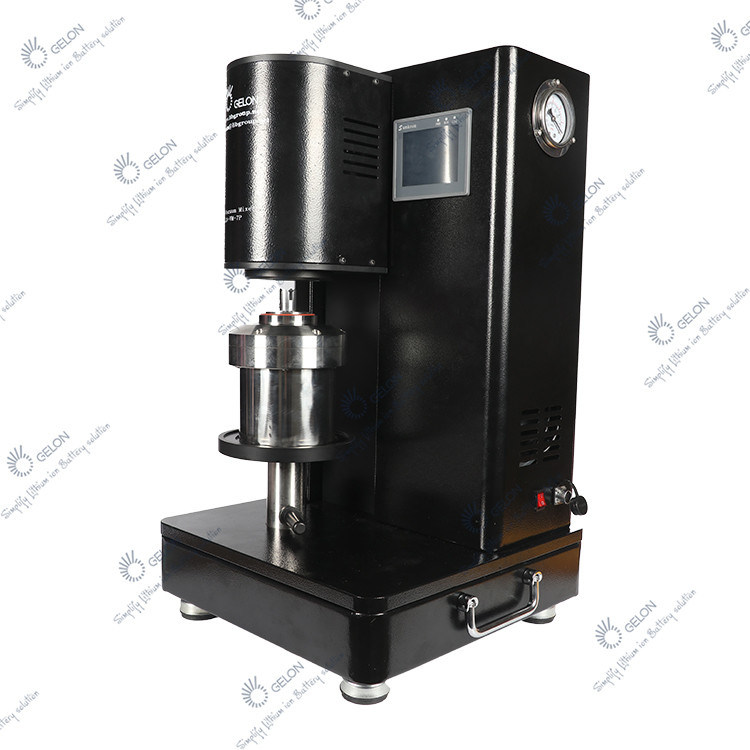

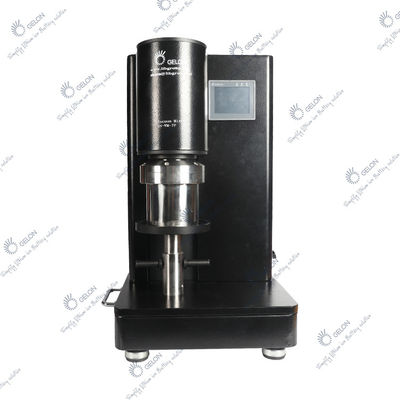

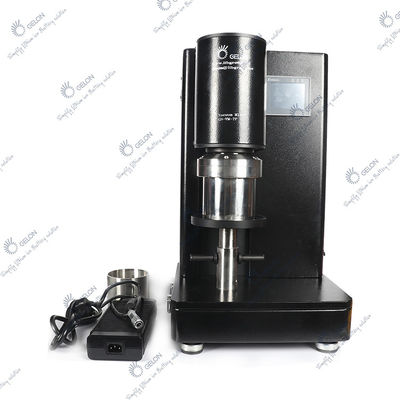

Pouch Cell Assembly Equipment Lab Planetary Vacuum Mixing Machine Battery Slurry Mixer
Planetary vacuum mixer can be used in the mixing process of various solvents and powders, such as lithium ion batteries, tapes, solar energy, chemicals and other raw material batching processes. The motor speed is adjusted in the man-machine interface, so as to drive the blades to rotate, and the slurry is evenly stirred.
| name | parameter | Remark |
| degree of vacuum | Built-in vacuum generator , the vacuum degree is higher than or equal to -70Kpa | Vacuum can be freely set according to demand |
| Mixing tank volume | 50ml / 150ml / 500ml ( only one of the specifications is standard) | |
| Motor speed | Max.600rpm | |
| Applicable viscosity | Max.10000mpa.s at 600r/min speed | Higher viscosity can be achieved at reduced speed |
| 50ml volume tank | Effective volume Max.30ml | Single paddle stirring |
| 150ml volume tank | Effective volume Max.120ml | Double paddle stirring |
| 500ml volume tank | Effective volumeMax.400ml | Double paddle stirring |
| Stiring time | 0-600min | Freely set according to needs |
| Multi-segment function | Three-stage speed can be set |
