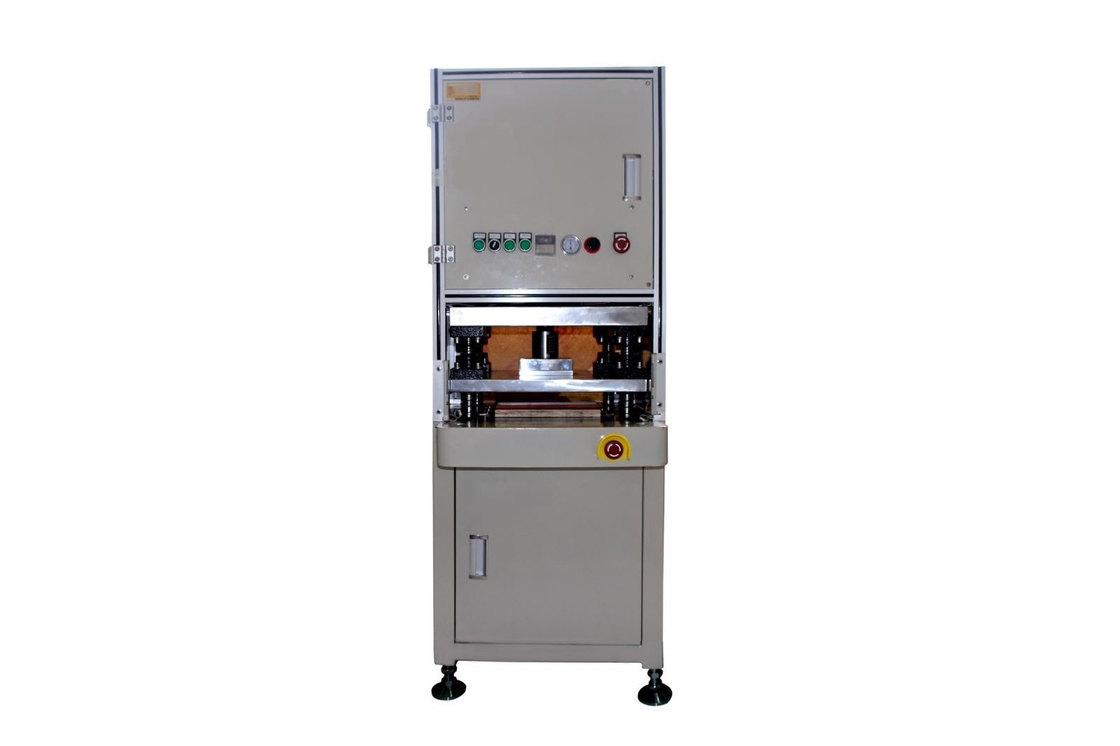

Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine

Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine
Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine

Large Image :  Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S250P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD5050/set
Packaging Details: Standard wooden box for export
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month

Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine

Description
Production Name: Lithium Battery Pouch Cell Lab Assembly Equipment Usage: Pouch Cell Research And Production
MOQ: 1 Pc Customzie: YES
Shipping: By Sea/Air/Express/Land Supply 1: Lithium Ion Battery Raw Material
Supply 2: Lithium Ion Battery Production Equipment Supply 3: Lithium Solid Battery Raw Material

Pouch cell Assembly Equipment Electrode Cutter Semi-auto Die Cutting Machine





Equipment characteristics :

1 . This machine adopts up and down precise guiding structure, which is not only compact but also highly efficient;

2. Precise fine-tuning, fast speed and precise positioning;

3. Constant and adjustable pressure, no damage to the cutting die, and it has limited function;

4. There are protective functions around, which can block people and other materials from entering;

5. Independent electrical control, power will not fall into the electrical control box;

6. There are safety fixing accessories when adjusting the machine, which can be safely adjusted;

7. The machine has perfect safety protection performance;

8. The frame is made of square materials with beautiful appearance; the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;

9. Electric control can be used for semi-automatic operation when moving, and manual function can be used when debugging;







ITEM  VALUE
Maximum forming siz ≤200*200mm
Feeding Material Width 200mm
Applicable Material Thickness 100-180um
Working Method Manual Fedding, Pneumatic Mode
Compressed gas Source 0.7Mpa 50L/min, utilization factor 20%
Template Pressure Flatness ≤0.05mm
Dimensions ≥470*450*780mm
Die cutting burr height ≤ 0.02mm(can't pricking separator)
Die type laser die

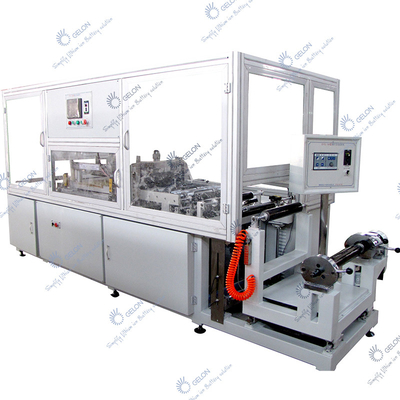

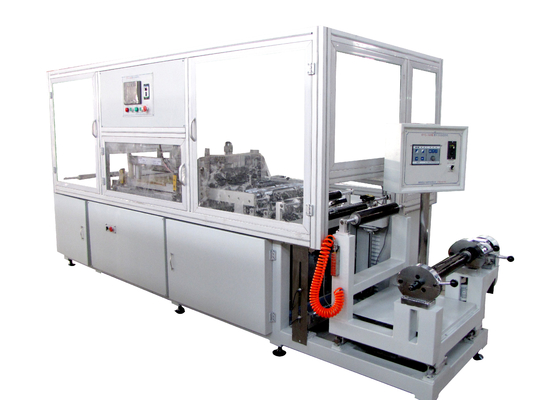

Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
