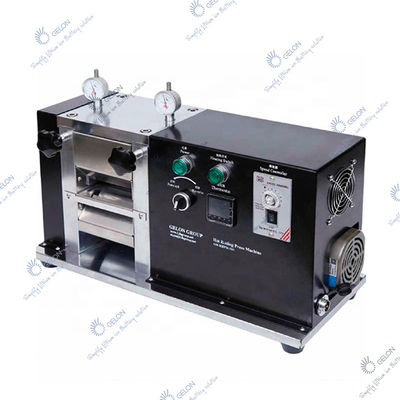

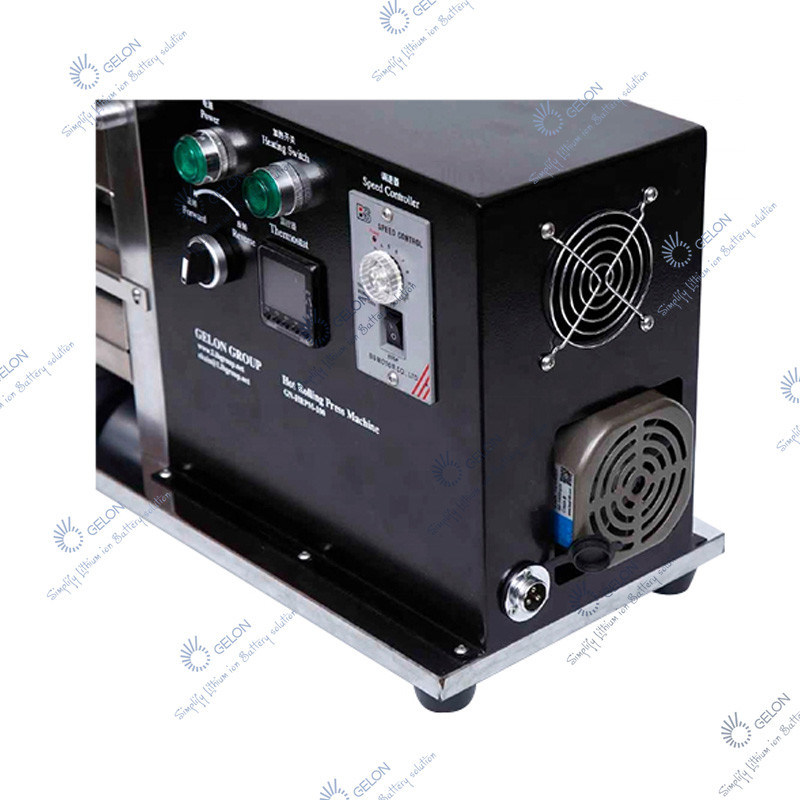

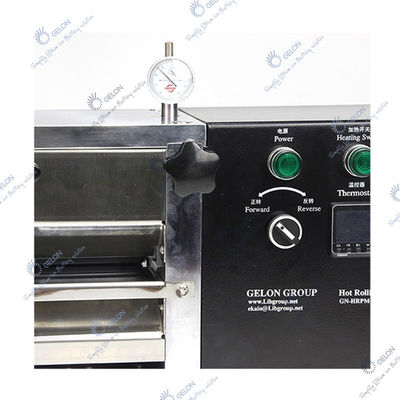

Roller Battery Manufacturing Machine Lab Calendering Pressing Machine

Roller Battery Manufacturing Machine Lab Calendering Pressing Machine
Roller Battery Manufacturing Machine Lab Calendering Pressing Machine Roller Battery Manufacturing Machine Lab Calendering Pressing Machine Roller Battery Manufacturing Machine Lab Calendering Pressing Machine Roller Battery Manufacturing Machine Lab Calendering Pressing Machine

Large Image :  Roller Battery Manufacturing Machine Lab Calendering Pressing Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-MR-100H
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD2480-2900/PCS
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month
Contact Now

Roller Battery Manufacturing Machine Lab Calendering Pressing Machine

Description
PProduct Name: Roller Press Machine Roll Diameter: 2-96mm
Cylindrical Roller: ≤±2um Roll Hardness: HRC62
Rolls Finish: More Than 0.8 Rolling Thickness: 0~2mm Gap Can Be Adjusted
.Rolling Width: 0~100mm
Highlight:

Roller Battery Manufacturing Machine

,

Battery roller press machine

,

1800W battery production equipment

Gelon Battery Production Equipment Lab calendering Pressing Machine Roller Battery Manufacturing Machine



This machine is mainly suitable for electric rolling in battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum. It is especially suitable for thinning and increasing density of lithium battery plates for clean energy materials.The machine adopts gear transmission to realize roll pressing, rolling thickness can be adjusted,
and it is convenient to use.



Roll diameter 2-Φ96mm
Rolling width 0～100mm
Roll gap 0~1.2 mm(adjustable)
Place the roll vertically
Power 1800W
Feed rate 0～50mm/s
Equipment dimension Approx.L550*W250*H390mm

Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 0Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 1Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 2
Related Products


Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 3
Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 4
Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 5Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 6




Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 7

Certifications


Roller Battery Manufacturing Machine Lab Calendering Pressing Machine 8



We can supply:
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
