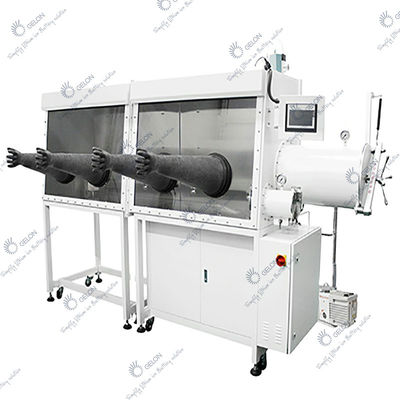

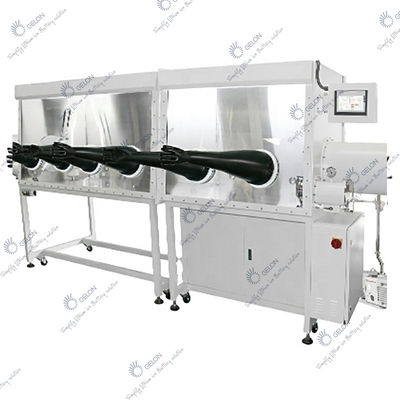

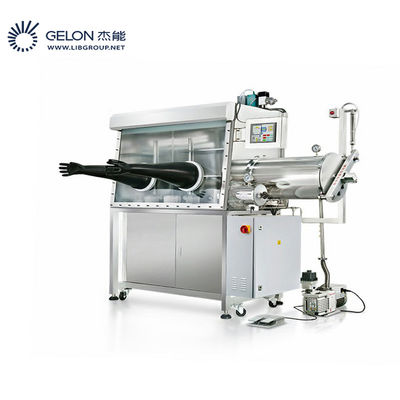

Gelon Single-Side Double Workstation Glove Box with <1ppm H₂O/O₂ Inert Atmosphere, Stainless Steel 304 Construction, and PLC Control for Battery R&D

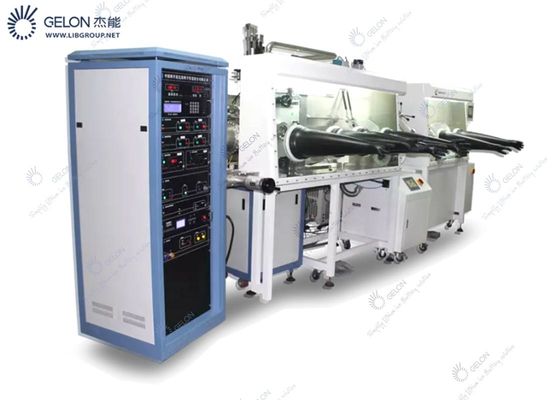

From Single to Multiple workstation systems, to be operated either side by-side or face to face. With integrated Gas purification system (1 Purifier), PLC controller and HMI, including sealed box, In and outward transfer antechamber, inclined operation sides with replaceable sight glass and vacuum pump etc. Attainable purity: H₂O<1ppm, O₂<1ppm.

• Closed Loop Gas Circulation: Inert gas closed loop, gas circulation by blower and purifier, H₂O, O₂ can be removed continuously.
• Auto Purging: The replacement of atmosphere inside glove box can be achieved automatically by purging valves.
• Automatic Regeneration: H₂O and O₂ removal material can be regenerated. The regeneration process can be program-controlled.
• Pressure Control in Box: The pressure in glove box is controlled automatically by PLC. Working pressure can be set between +10mba and -10mba, in case of pressure over +/- 12mbar the system will be protected automatically.
• Automatic Vacuum Pump Control: The vacuum pump will be activated automatically when necessary and will turn off after a period of idle time.

• 1 Big Cylindrical type antechamber, made of stainless steel 304
• Diameter: 360mm, length: 600mm, right or left side
• With sliding tray inside the antechamber
• Spindle lock door, vertical operation with lifting mechanism
• Touch screen automatic operation via solenoid

• 1 Mini Cylindrical type chamber, made of stainless steel 304
• Diameter: 150mm, length: 300mm (100mm access into the glove box), right or left side
• Screw-lock door
• Manual operation via hand valve
