Battery Electrode Hot Rolling Press Machine 100mm Width For Battery Manufacturing Research Machine

Large Image : Battery Electrode Hot Rolling Press Machine 100mm Width For Battery Manufacturing Research Machine

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-MR100H

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	3500usd/1-4sets, 2500usd above 5sets
Packaging Details:	Standard exported package : Internal anticollision protection, external export wooden box packaging.
Delivery Time:	15days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100set/month

Contact Now

Battery Electrode Hot Rolling Press Machine 100mm Width For Battery Manufacturing Research Machine

Description

Warranty:	1 Year	Applicable Industries:	Energy & Mining, Battery
Dimension:	381 Mm * 241.3mm * 355.6mm	Power:	AC220V
Certificates:	CE,ISO9001	Color:	Black
Roll Width:	100mm-330mm	Caldendering Thickness:	0mm-2mm
Roller Dimension:	96mm(Dia.) X 100mm(W)	Roller Material:	Ceramic Coated On Tool Steel With HRC > 72
Weight:	78kg
Highlight:	Electrode Hot Rolling Press Machine , Battery Manufacturing Research Machine , Battery Hot Rolling Press Machine

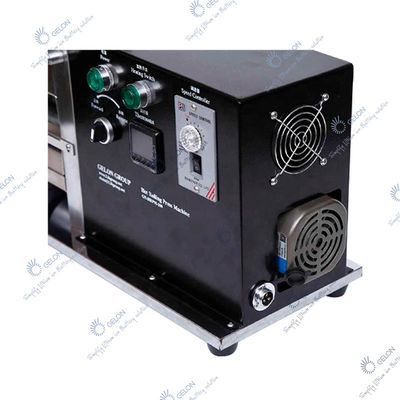

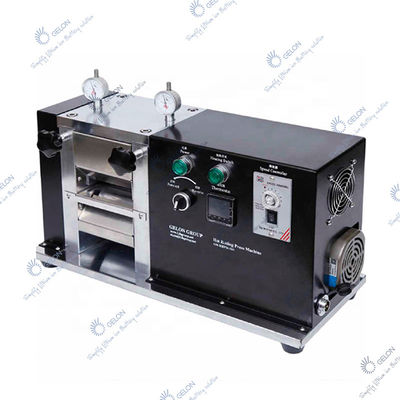

Battery Electrode Hot Rolling Press Machine With 100mm Width For Battery Manufacturing Research Machine

Product Description

Mainly for battery materials in the laboratory, a small amount of gold and silver and other precious metals adjustable, copper and aluminum and other nonferrous materials under certain temperature electric hot rolling, rolling thickness, easy to operate.

Particularly suitable for clean energy materials lithium plate thinning and increased density.

Product Features:

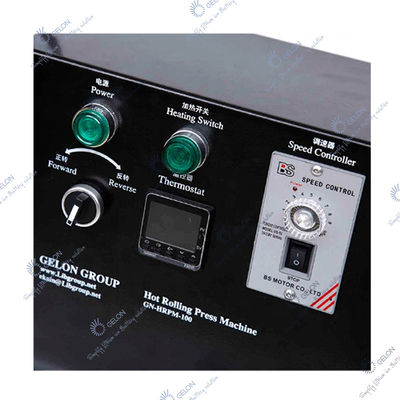

Heating rolling, adjustable thermostat temperature control and digital display.

Optional with or without heating to work.

Roll hardness, and surface hard chrome plated, hardness up to HRC62 and rust.

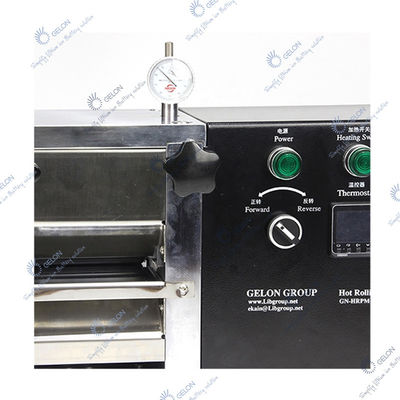

Use the ramp to adjust compression gap, since petty good, high precision adjustment.

Rolling high precision cylindrical roller ≤±2um.

Small size, easy to operate, flexible and quick.

Specification

			Power

			AC220V, 2000W

			Roll Width

			100-330mm

			Calendering thickness

			0-2mm

			Dial Gauge Accuracy

			0.01mm

			Roller Surface Max. Temp

			130℃

			Surface hardness of rollers

HRC60-62

Tag:

Contact Person: Ekain Zhang

Tel: +8618669965529

Fax: 86-0539-8067529
