Roll To Roll Battery Manufacturing Machine Electrode Calendering Machine

Roll To Roll Battery Manufacturing Machine Electrode Calendering Machine
Roll To Roll Battery Manufacturing Machine Electrode Calendering Machine Roll To Roll Battery Manufacturing Machine Electrode Calendering Machine Roll To Roll Battery Manufacturing Machine Electrode Calendering Machine Roll To Roll Battery Manufacturing Machine Electrode Calendering Machine

Large Image :  Roll To Roll Battery Manufacturing Machine Electrode Calendering Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-HR330
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD38850/set
Packaging Details: Plywood box
Delivery Time: 35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5set/month

Roll To Roll Battery Manufacturing Machine Electrode Calendering Machine

Description
Product Name: Roll To Roll Electrode Calendaring Machine With Heating Function Battery Manufacturing Machine Voltage And Frequency: AC380V / 50Hz
Power: 7.5KW Roller Size: 210mmDia*300mmW, 9Cr3Mo Materials
Calender Thickness: 0.01-2mm Adjusted Effective Working Width: Max 300mm
Speed: 1-8r/min Efficiency: 0-5m/min
Accuracy: 0.003mm Max Working Pressure: 80T
High Light:

8r/min Battery Manufacturing Machine

,

7.5KW Electrode Calendering Machine

,

AC380V Battery Manufacturing Machine

Roll To Roll Electrode Calendaring Machine With Heating Function Battery Manufacturing Machine

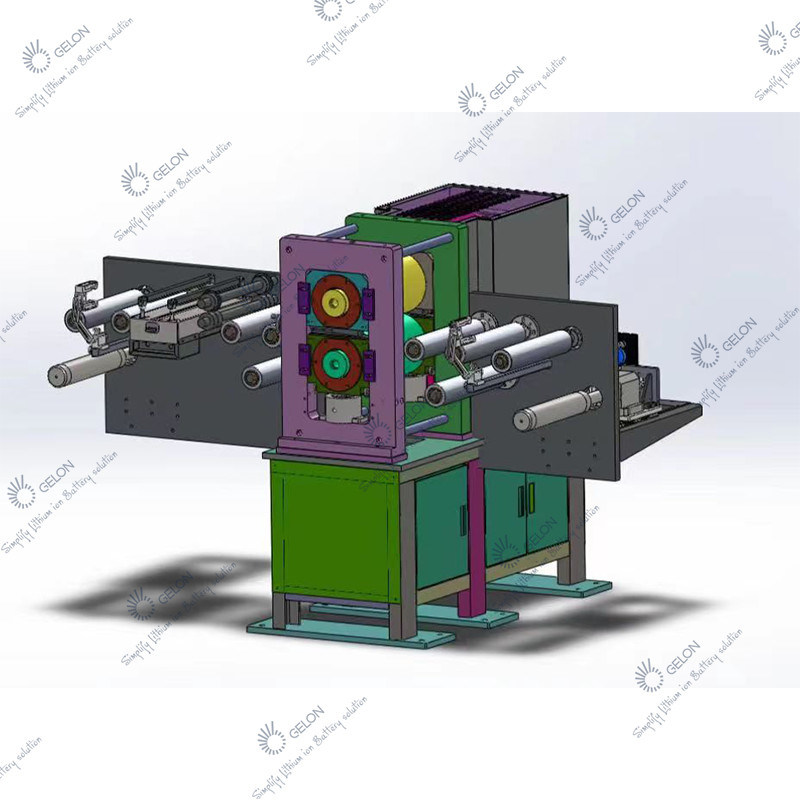

The calendaring machine is the main equipment in the continuous calendaring production line. It consists of cast steel gantry frame, rolls, frequency conversion motor reducer, gap adjustment system, electrical control system, feeding guard plate and roll surface cleaning mechanism.
The main function is to make the electrode reach the appropriate density under the rolling of the roller, and meet the electrode thickness requirement according to the coating thickness.



GN-HR-330 hydraulic roller pressure machine is an automatic battery electrode rolling press system with precision digital pressure control . The pressure can be adjusted easily by touch screen.



Name
Pressure Adjust Hydraulic Rolling Press Machine
Function
Calender battery electrode
Calender Model
Hydraulic press
Roller Size
210mmDia*300mmW, 9Cr3Mo materials
Calender Thickness
0.01-2mm adjusted
Effective Working Width
Max 300mm
Speed
2-8r/min
Efficiency
0-5M/min
Accuracy
0.003mm
Main Motor Power
18KW(380V 50Hz)
Heating
6KW*2
Max Working Pressure
80T
Rolling Press Machine Size
About L2200mm*W1300mm*H1400mm
Weight
About 2000kg
Warranty
One-year limited warranty with all lifetime support
