Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-HS200F
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD6521-7921/PCS
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment

Description
Product Name: Vacuum Second Sealing Machine Sealable Battery Size: Max L180mmxW180mm
Sealing Width: 5mm Compressed Air Source: 0.5~0.8Mpa
Edge Length: 190mm Heat Sealing Head Temperature: ~250℃
Edge Time: It Is Recommended To Use 3~4s

Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment

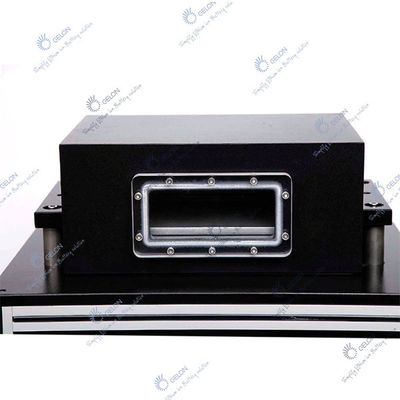

1. First, use the upper and lower cavities to form a closed cavity, and then vacuum the cavity to form a negative pressure state. At the same time, the bayonet pierces the pre-packaged air belt part to discharge the gas in the cell.

2. This equipment is mainly suitable for vacuuming and hot-pressing packaging of flexible packaging (medium and small size) lithium batteries after liquid injection and standing; the head is made of copper material, which has good heat transfer effect, saves power consumption and improves work efficiency. Compared with similar products, it is more energy-saving; the pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

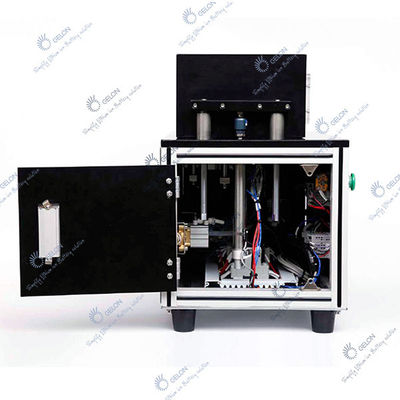

3. The upper and lower heads are driven by a cylinder and guided by two linear guide sleeves, which can move up and down flexibly, and the guidance is accurate to ensure the parallelism of the product after edge sealing; the waste liquid recovery device, the cover cavity is driven by a cylinder, guided by a linear guide The activities are flexible and the orientation is accurate to ensure the sealing requirements of the product.



Features:

1. The bayonet piercing function realizes the drainage of excess electrolyte of the battery.

2. Integrated design of electric box equipment.

3. The cover cavity is driven by a cylinder, guided by a linear guide sleeve, and can move up and down flexibly, and the guidance is accurate to ensure the sealing requirements of the product.

4. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

5. The head is made of copper material, which has good heat transfer effect and saves power consumption.



Sealing width 5mm
Compressed air source 0.5~0.8Mpa
edge length 190mm
Sealing head temperature ~250℃
Heat sealing time 0~99s
Edge thickness 0~0.5mm
Equipment dimension Max L180mmxW180mm

Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 0Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 1Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 2
Related Products


Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 3
Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 4
Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 5Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 6




Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 7

Certifications


Lab Vacuum Second Sealer Machine Pump Sealing Machine Pouch Cell Assembly Equipment 8



We can supply:
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
