PLC Controlled Adjustable Temperature Pouch Cell Sealing Machine with Safety Light Curtain

PLC Controlled Adjustable Temperature Pouch Cell Sealing Machine with Safety Light Curtain
PLC Controlled Adjustable Temperature Pouch Cell Sealing Machine with Safety Light Curtain PLC Controlled Adjustable Temperature Pouch Cell Sealing Machine with Safety Light Curtain PLC Controlled Adjustable Temperature Pouch Cell Sealing Machine with Safety Light Curtain PLC Controlled Adjustable Temperature Pouch Cell Sealing Machine with Safety Light Curtain

Large Image :  PLC Controlled Adjustable Temperature Pouch Cell Sealing Machine with Safety Light Curtain

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-HS200
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: USD 1400-1800/PCS
Packaging Details: Wooden Carton
Delivery Time: 4-6 week
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10 PCS Per Month
Contact Now

PLC Controlled Adjustable Temperature Pouch Cell Sealing Machine with Safety Light Curtain

Description
Power Supply: 220V 50Hz, 110V 60Hz Power: 2kw
Air Source: 0.4~ 0.6MPa Sealing Head Size: 300*10mm
Productivity: 600ea/H (According Worker's Experience) Outside Size: 550*500*500mm
Highlight:

Lithium Battery Pouch Cell Assembly Equipment

,

automatic side sealing machine

,

Black Pouch Cell Assembly Equipment

Black Lithium Battery Pouch Cell Assembly Equipment Top Side Sealing Machine
Pouch Cell Assembly Equipment Black Lithium Battery Pouch Cell Manual Making Top Side Sealing Machine
Key Features
  • Compatible with different battery sizes with easy adjustment via speed governing or clamp/end cover changes
  • Top and bottom end covers driven by two cylinders with elastic movement
  • Copper cover material for excellent heat effectiveness and energy efficiency
  • Adjustable top end cover pressure via valve regulation
  • Temperature control for both top and bottom end covers
  • Temperature anomaly warning system
  • Comprehensive safety features including safety light curtain and dual button protection
  • PLC controller for easy operation and portability
  • Aluminum rack construction with attractive appearance
  • Supports manual operation for testing and PLC auto-operation for bulk production
Machine Specifications
Name Model/Spec Name Model/Spec
Suitable size ≤200×200×12MM Dimension 450×300×400MM
Production capacity 600EA/H Weight 37KG
Degree of parallelism of sealing head ±0.01mm Input power supply AC220V 50HZ
Sealing width 8MM Power 1.0KW
Temperature error ±2°C Input air source 0.6Mpa
Compressed air pipe diameter Φ8MM RH 20~90%RH
Suitable thickness of aluminium film 0.1-0.3MM Current temperature 10~35°C
Sealing method Soft sealing
Product Images

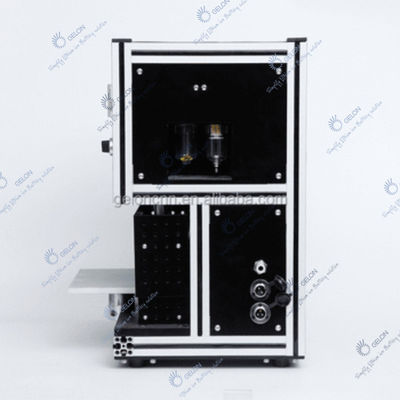

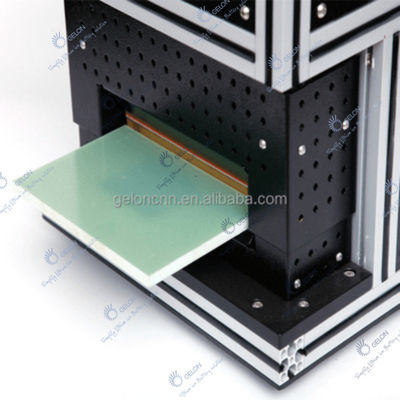

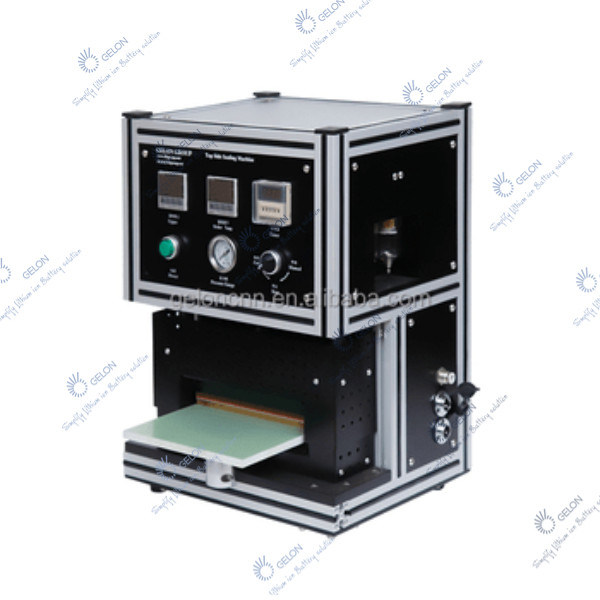

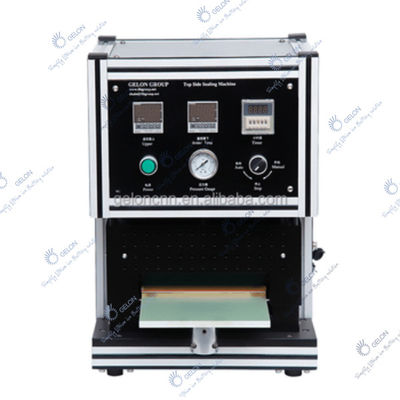

Black Lithium Battery Pouch Cell Top Side Sealing Machine Close-up view of sealing machine components Lithium battery manufacturing equipment overview Battery production line equipment Sealing machine operation view Machine control panel and interface Final product output from sealing machine
Our Services
We provide comprehensive lithium battery manufacturing solutions:
Materials
  • LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2
  • Graphite (MCMB) and other cathode & anode materials
  • Aluminum foil, copper foils, battery separator
Equipment
  • Mixing machine
  • Coating machine
  • Oven
  • Rolling machine
  • Welding machine
  • Slitting/cutting machine
  • Winding machine
  • Sealing machine
We offer complete lithium battery technology support and can design laboratories and production lines according to customer requirements.
