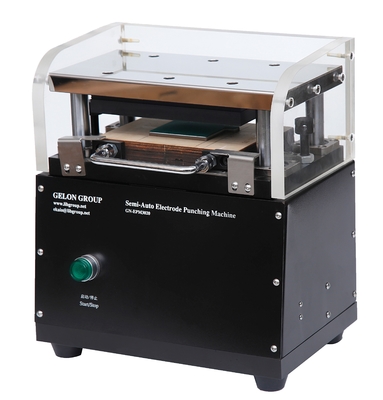

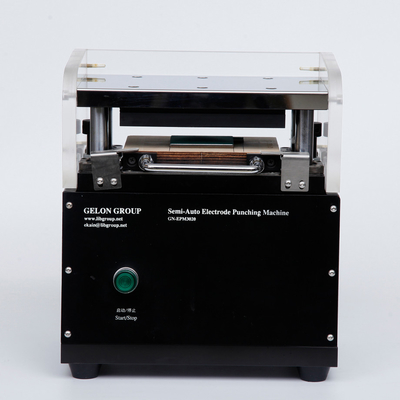

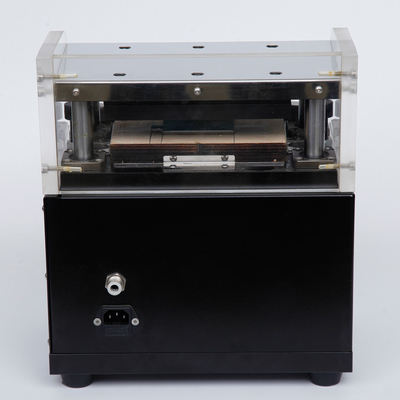

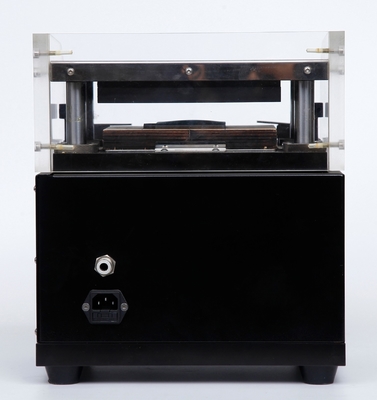

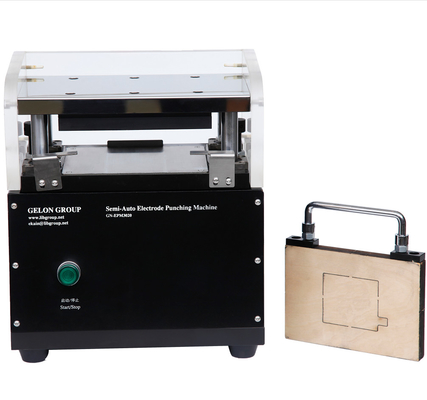

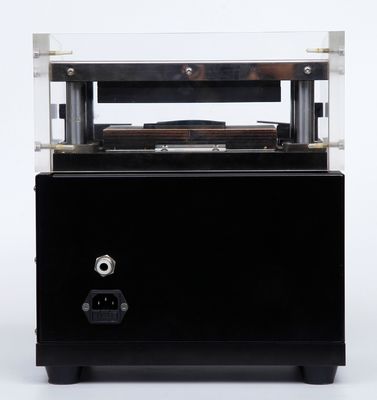

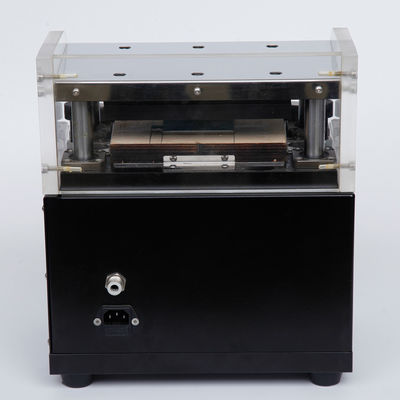

Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p

Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p
Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p

Large Image :  Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S100P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD2060-2250/set
Packaging Details: Export standard package
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 100set/month

Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine For Pouch Battery Research Gn-S100p

Description
Standard Cutting Die: Cathode Electrode 56 * 43mm / Anode Electrode 58 * 45mm Cutting Size: Max.L 120*W 80mm
Cutting Pressure: Max.1T Cutting Stroke: 12mm
Cutting Burr: Vertical Burr ≤12μm Horizontal Burr ≤20μm Cutting Thickness: Max.0.5mm
Cutting Precision: ±0.1mm Air Supply: 0.5~0.8MPa Argon, Nitrogen Gas Cylinders, Or 0.7MPa Compressed Air
Power: 100W Equipment Dimensions: L300mm*W250mm*H 340mm
Net Weight: About 34Kg

Compact Precision Pneumatic Die Cutter With A Pair Die Electrode Cutting Machine

                         For Pouch Battery Research Gn-S100p





I. Overview of equipment
1. Semi-automatic die cutting machine is a device used in cathode and anode electrode die cutting of lithium ion stacking batteries.The equipment uses the pneumatic way to die cut for single electrode. It can be placed in the glove box, and we can provide various shapes of knife mold according to customer requirements to achieve the forming and die cutting of different battery sizes.
Plate electrode feeding, knife template to achieve die cutting, and can be used in the glove box;



II. Equipment characteristics
1.Cylinder drive, and the cutting pressure and speed can be adjusted.
2.Die cutting products has small burr, no powder, no indentation and other bad appearance;

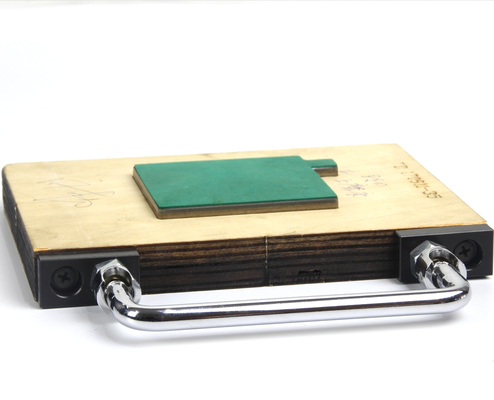

3.The cutting die is made of a drawer-type design to ensure safe operation.
4. The replacement of the cutting die is easy, convenient and fast.
5. A standard set of cathode and anode blade die, can also be made according to customer requirements;



III. Technical parameters of the equipment



Name Parameter Remarks
Standard Cutting die Cathode electrode 56 * 43mm / Anode electrode 58 * 45mm It can be customized according to customer request
Cutting size Max.L 120*W 80mm Includes battery tab
Cutting pressure Max.1T (1MPa compressed gas) Recommended adjusting pressure, 500Kg(0.5MPa)
Cutting stroke 12mm Distance between the cutting die and the cutting plate
Cutting die life Ten thousand times
Cutting burr

Vertical burr ≤12μm

Horizontal burr ≤20μm


Cutting thickness Max.0.5mm The foil are made of aluminum / copper
Cutting precision ±0.1mm
Air supply 0.5~0.8MPa Argon, nitrogen gas cylinders, or 0.7MPa compressed air Compressed air in the glove box is not recommended
Power 100W
Equipment, dimensions L300mm*W250mm*H 340mm
Packing dimension About L400*W340*H450mm
Net weight About 34Kg
Gross weight About 43kg
The site to use   It can be used in the glove box. Please check whether the glove box space matches the overall size of the equipment
Warranty time One-year warranty, lifetime maintenance
