Product Details:
|
| Color: | Black | Feature 1: | High Precision |
|---|---|---|---|
| Mixing Speed: | 0-600rpm | Mixing Time: | 0-600mins |
| Vacuum Degree: | -70Kpa | Equipment Size: | 360（L）*340（W）*580（H）mm |
| Weight: | About 60kg | Mixing Tank: | 50/150/300/500ML (can Custom) |
| High Light: | Lab planetary vacuum mixer,300ml lab mixing machine,500ml planetary vacuum mixer |
||

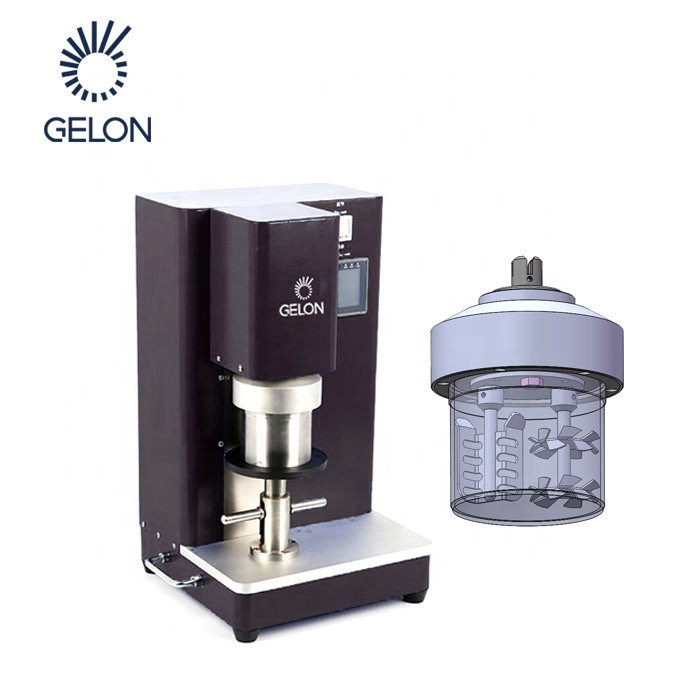

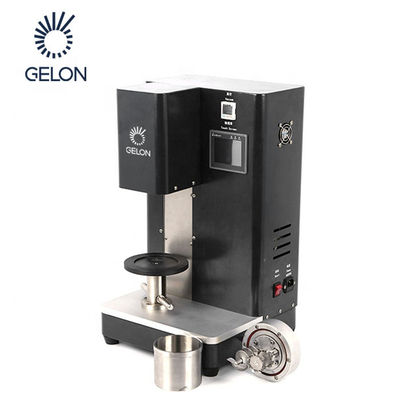

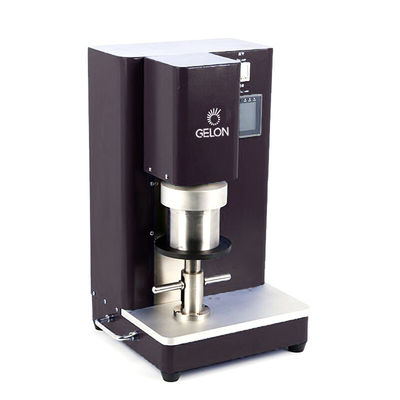

Desk-top 50/150/300/500ml Small Tank Best Lab Planetary Vacuum Mixer Lithium Ion Battery Lab Research Mixing Machines
| Mixing tank 50ml | Effective volume Max.30ml |
| Mixing tank 150ml | Effective volume Max.120ml |
| Mixing tank 300ml | Effective volume Max.240ml |
| Mixing tank 500ml | Effective volume Max.400ml |
| Power supply | voltage single-phase 110~220VAC±10%, frequency50/60Hz, Power 500W |
| Use environment | the recommended environment temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference |
The planetary vacuum mixer can be applied to the mixing process of varioussolvents and powders, such as the raw material batching process of lithiumion batteries, tape, solar energy, and chemical industries. The equipment isbeautiful in appearance, small size, convenient and easy to use. The speedofthe motor is adjusted in the man-machine interface to drive the bladestorotate and stir the slurry evenly. It is an ideal choice for laboratory slurry preparation.
Main Features (1) The equipment is equipped with dual-shaft planetary ribbonstirringpaddle and single-shaft blade stirring paddle, and different stirringshaft forms and combinations are configured according to the size of the stirringtank;
(2) The design of forward and reverse mixing function canrealizehigh-speed mixing of higher viscosity slurry with good mixing uniformity;
(3) The vacuum environment can effectively eliminate the bubbles generatedduring the mixing process. The machine comes with a vacuumsystem; (4) Multi-stage speed operation is possible, and the stirring speed andtimeof each stage can be set;
(5) The volume of the stirring tank is respectively 50ml, 150ml, 300ml,500ml optional, (can be customized according to requirements);
(6) The bracket design is convenient for operation and ensures the safetyduring the vacuum mixing process;
We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.
2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
