Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE,ISO
Model Number: GN-VC-10
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2580/set
Packaging Details: Wooden packing
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000Pcs/days

Heating Best Quality Lab Coating Machine Coater Lithium Ion Battery Making Device High Temperature Coating Equipment

Description
Power: 1800w Gas Source: 0.5~0.8MPa Argon, Nitrogen Cylinder, Or 0.7MPa Compressed Air
Vacuum Pump Capacity: ≥13m³/h Application: Lithium Ion Battery
Equipment Net Weight: About 68Kg Equipment Gross Weight: About 100kg
Warranty: 1 Year Warranty, Lifetime Maintenance Equipment Size: About L705*W460*H310mm

Heating Best Quality Lab Coating Machine Coater Lithium Ion Battery Making Device High Temperature Coating Equipment



Produce:

This product is widely used in a variety of high temperature coating research, such as ceramic film, crystal film, battery material film, special nano-film, to adapt to the future high temperature conditions, the development of film technology. The machine through the uniform drive precision film device, to achieve smooth, uniform coating effect. The substrate is fixed by vacuum adsorption, so that the substrate has no wrinkles during the coating process, so that the coating is smoother. After coating, the cover can be heated and dried on the film, temperature control accuracy of ± 1 ºC. Particularly suitable for the preparation of solid electrolyte and lithium battery electrode.



Coating width100,150,200,250,300mm ,etc can be customized ,
Heating or without heating can be customized .
maximum working temperature 150℃
degree of vacuum Vacuum degree higher than or equal to -84Kpa
power supply AC220V/50Hz.110V/60Hz

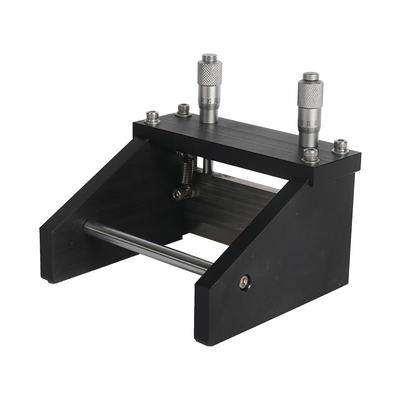

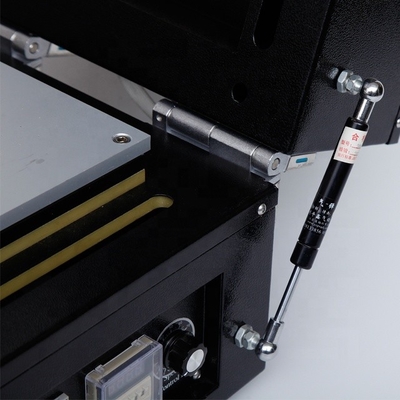

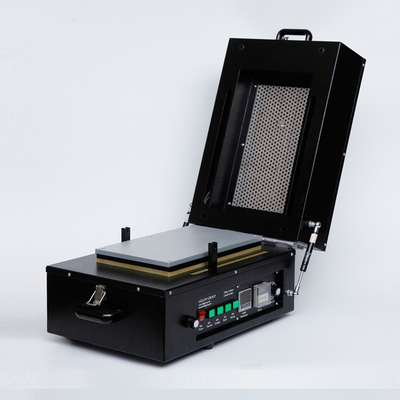

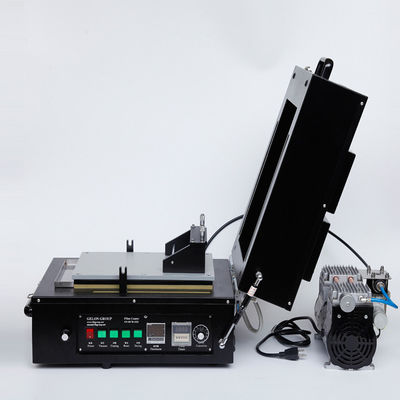

Picture:

Heating Best Quality Lab Coating Machine Coater Lithium Ion Battery Making Device High Temperature Coating Equipment 0
Heating Best Quality Lab Coating Machine Coater Lithium Ion Battery Making Device High Temperature Coating Equipment 1


Related Products: Nickel/Steel Strips

Heating Best Quality Lab Coating Machine Coater Lithium Ion Battery Making Device High Temperature Coating Equipment 2

Heating Best Quality Lab Coating Machine Coater Lithium Ion Battery Making Device High Temperature Coating Equipment 3

Heating Best Quality Lab Coating Machine Coater Lithium Ion Battery Making Device High Temperature Coating Equipment 4

Heating Best Quality Lab Coating Machine Coater Lithium Ion Battery Making Device High Temperature Coating Equipment 5



We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
