Product Details:
|
| Product Name: | Pouch Cell Top And Side Heating Sealing Machine | Automatic Grade: | Semi-automatic |
|---|---|---|---|
| Driven Type: | Electric | Dimension: | 550*500*500 Mm |
| Productivity: | 600EA/H(according Worker's Experience) | Air Source: | 0.4~0.6Mpa |

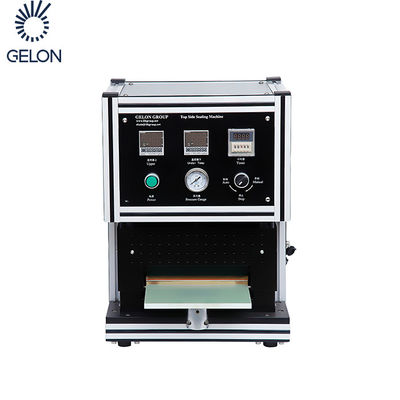

Lab Equipment Pouch Cell Top And Side Heating Sealing Machine Pouch Cell Assembly Equipment Desktop
Product feature:
1. The machine can be used for different size batteries and can be adjusted easily by speed governing (or changing) clamps or adjusting ( or changing) end cover.
2. Top and bottom covers are drove by two cylinders, moving elastically.
3. The cover is made of cooper material, having good heat effectiveness and saving electricity.
4. The pressure of top end cover can be adjusted by value regulation.
5. The temperature of top and bottom end covers can be adjusted by temperature controller.
6. The machine has the warning function on temperature anomaly.
7. The machine has great protective function with safety light curtain and double buttons protection.
8. The machine has PLC controller for easily operating. It's light for carrying.
9. The machine's rack is made of aluminium with good-looking. It can take manual operation while testing machine and take PLC auto-operation while bulk producing.
Technical Parameter:
| Name | Parameter | Remark |
| Upper mould soft seal temperature | Recommended 200°C | temperature setting as request |
| Lower mould temperature | Recommended160℃-180℃ | temperature setting as request |
| Sealing times | 0-99s Adjustable | |
| Sealing times | Recommended 3~4s | |
| Sealing thickness | 0~0.5mm | |
| Sealing length | 190mm | |
| Sealable battery size | Max L180mmxW180mm | with air pocket, with tab |
| Sealing width | 5mm(standard) | As request |
| Air Source | 0.5~0.8MPaArgon, nitrogen gas cylinders, or 0.7MPa Compressed air | The use of compressed air in the glove box is not recommended |
| Power source | AC220V/50Hz.AC110V/60Hz | As request |
| Power | 1800W | |
| Equipment Size | L350mm*W380mm*H520mm | |
| Equipment weight | Around 42Kg |
We supply:
1.Full set of lithium battery materials,including:
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.
2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
