Cylinder Cell Case Lithium Battery Research

Cylinder Cell Case Lithium Battery Research
Cylinder Cell Case Lithium Battery Research Cylinder Cell Case Lithium Battery Research Cylinder Cell Case Lithium Battery Research Cylinder Cell Case Lithium Battery Research

Large Image :  Cylinder Cell Case Lithium Battery Research

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-18650/21700/26650/32650
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: USD0.68-1.28/PCS
Packaging Details: wooden case
Delivery Time: 5-12days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs/month

Cylinder Cell Case Lithium Battery Research

Description
Product Name: 18650 Battery Case Top Cap: 17.5mm(D) X 4.05mm(H)
Case: 18mm(OD) X 17.5mm(ID) X 67mm(H) Cap Internal Resistance: 10~18
Top Insulator: 12.5mm(D) X 0.19mm(H) Bottom Insulator: 0~170 RPM Adjustable
Case&Cap: Made Of Nickel Plated A3 Steel
High Light:

Cell Case Lithium Battery Research

,

Lithium Ion Battery Shell Case

,

18650 Battery Cell Holder

Lithium Ion Battery Shell Case Battery Cell Holder Cylinder Cell Case Lithium Battery Research

Materials: Case and cap are made of Nicke plated A3 steel Seal O-ring and spacer are made of nylon Insulating gasket is made of PET Cap: Cap with Built-in PTC Thermistor for overcurrent protection In addition, we can also offer Super Capacitor Case, Aluminium case, Shaped Battery Case

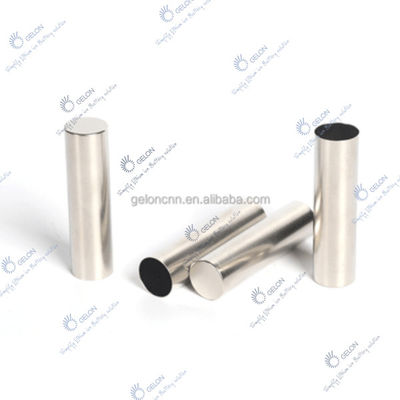

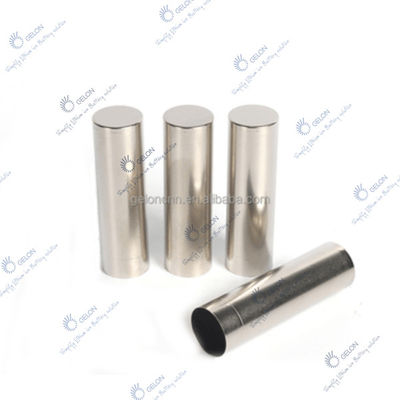

18650 cylinder cell cases
Cap Cap with Built-in PTC Thermistor
Dimensions (Dia x Height) * Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
* Top Cap: 17.5mm(D) x 4.05mm(H)
* Top Insulator: 12.5mm(D) x 0.19mm(H)
* Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials * case and cap made of Nicke plated A3 steel and seal O-ring made of nylon
Weight 9.50 g/pcs


21700 cylinder cell cases

Dimensions (Dia x Height) * Case: 21.2mm (OD) x 20.7mm (ID) x 73.1mm (H)
* Top Cap: 20.4mm (D) x 4.2mm (H)
Materials * case and cap made of Nicke plated A3 steel and seal O-ring made of nylon
Weight * 8.455 g/pcs


26650 cylinder cell cases

Dimensions (Dia x Height) * Case: 26mm(OD) x 25.5mm(ID) x 68mm(H)

* Top Cap: 25.5mm(D) x 5mm(H)
Materials * case and cap made of Nicke plated A3 steel and seal O-ring made of nylon
Weight * 18.75 g/pcs



32650 cylinder cell cases

Dimensions (Dia x Height) * Case: 26mm(OD) x 25.5mm(ID) x 68mm(H)

* Top Cap: 25.5mm(D) x 5mm(H)
Materials * case and cap made of Nicke plated A3 steel and seal O-ring made of nylon
Weight * 28.85g/pcs





Cylinder Cell Case Lithium Battery Research 0Cylinder Cell Case Lithium Battery Research 1Cylinder Cell Case Lithium Battery Research 2


Cylinder Cell Case Lithium Battery Research 4Cylinder Cell Case Lithium Battery Research 5Cylinder Cell Case Lithium Battery Research 6
