Product Details:
|
| Production Name: | Lithium Manganese Oxide LMO/LiMn2O4 | MOQ: | 5KG |
|---|---|---|---|
| Sample: | Yes | Warranty: | 3months-1 Year |
| Supply 1: | Lithium Ion Battery Raw Material | Supply 2: | Lithium Ion Battery Production Equipment |
| Supply 3: | Lithium Ion Solid State Battery Raw Material | Used For: | E-bicycle ， Electric Power Tool |
| Tap Density （ G/cm 3 ）: | 2.10 | Specific Surface Area （ ㎡ /g ）: | 0.50 |
| Moisture (%): | 0.02 | ||
| High Light: | LiMn2O4 Lithium Battery Research,raw material lithium manganese oxide,LMO Lithium Battery Materials |
||

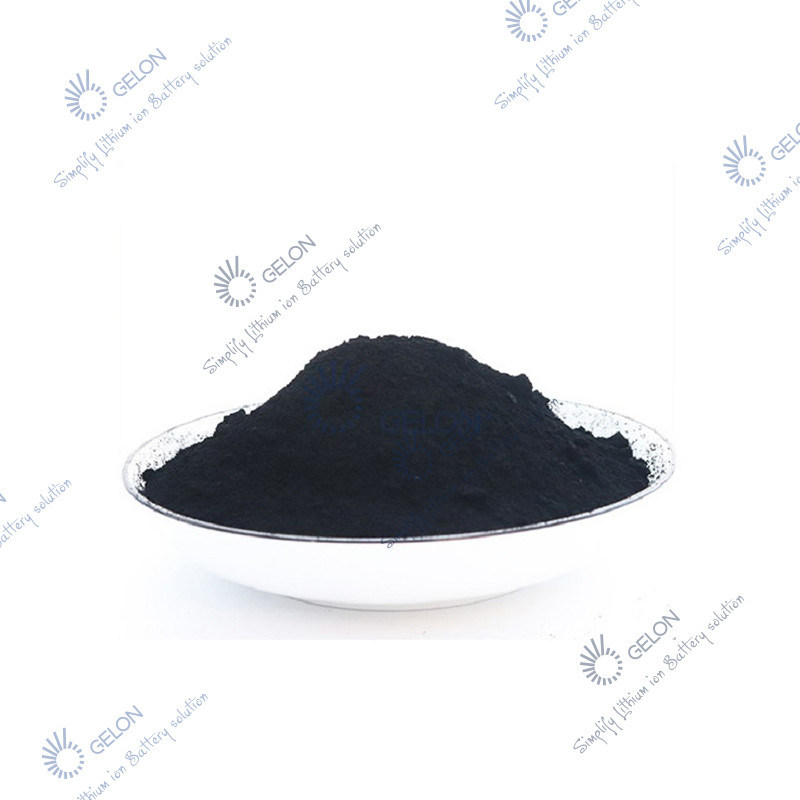

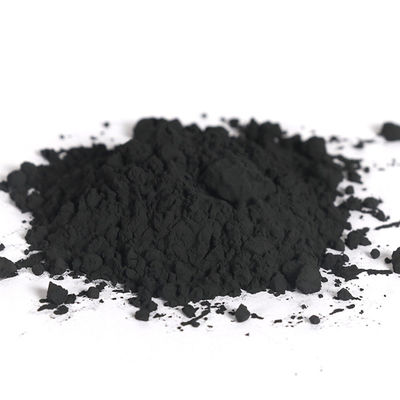

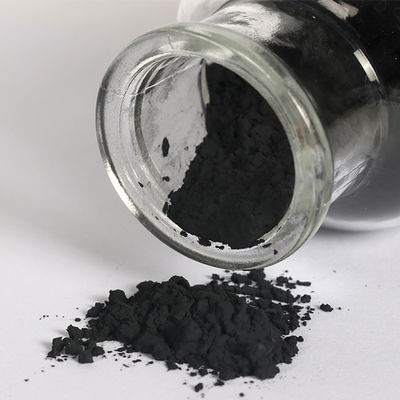

GELON Lithium Battery Research Lithium Manganese Oxide Lithium Battery Materials LMO/LiMn2O4
| Name/Type | LiMn2O4/GN-D330 | ||
| Used for | e-bicycle , electric power tool | ||
| test item | S t a n d a r d | I n s p e c t i o n d a t a | |
| Granularity | D 10 ( μm ) | ＞ 4.0 | 4.5 |
| D 50 ( μm ) | 9.0 ～ 1 3.0 | 1 0.0 | |
| D 90 ( μm ) | ＜ 25 | 20.5 | |
| Tap Density ( g/cm 3 ) | ＞ 2.0 | 2.10 | |
| Specific Surface Area ( ㎡ /g ) | 0.40 ～ 0.60 | 0.50 | |
| Li (%) | 3.5 ～ 4.5 | 3.55 | |
| Mn (%) | 57.0 ～ 59.0 | 57.70 | |
| Fe (%) | ＜ 0.02 | 0.018 | |
| Cu (%) | ＜ 0.02 | 0.018 | |
| Zn (%) | ＜ 0.02 | 0.018 | |
| Ca (%) | ＜ 0.03 | 0.020 | |
| Ni (%) | ＜ 0.03 | 0.020 | |
| pH | 7.0 ～ 1 0.0 | 8.20 | |
| Moisture (%) | ＜ 0.10 | 0.02 | |
| Circulate 100times volume retention rate (%) | ＞ 90 | ||
| 55 degree circulate 55100times volume retention rate (%) | ＞ 80 | ||
| capacity ( mAh/g ； button cells 1C discharge ) | ＞ 95 | 98 | |
| Appearance | Black Powder , No Agglomeration , No Sundries | ||
| Packing | Polyethylene bag by vacuum, 25 kg/box | ||
| Storage , Delivery | Avoid moist, antiseptic | ||
| application | Lithium ion Power Battery cathode materials | ||
| use time | Six month | ||
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
COMPANY PROFILE
Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment
Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .
Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMP,PVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive battery production experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertake lithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......;
also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
