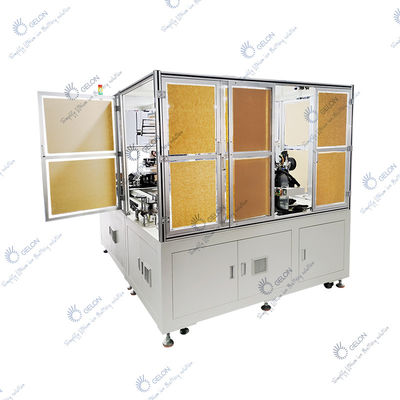

Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine

Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine
Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine
Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine

Large Image :  Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DP200A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 75000usd-80000usd
Packaging Details: Standard export package
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets /month
Contact Now

Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine

Description
Name: Automatic Stacking Machine Application: Pouch Cell Electrode Winding
Size: 2500mm*1700mm*1350mm Winding Needle Number: Three
Operation Ratio: ≥95% Power Supply: 380V 50Hz
Highlight:

Z-fold Pouch Cell Assembly Equipment

,

Semi Automatic Stacking Machine

,

Battery Pouch Cell Assembly Equipment

Pouch Cell Assembly Equipment High Accuracy Semi Automatic Stacking Machine For Battery Z-fold Assembly Process



Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 0



The equipment is used for automatic winding of digital lithium battery core, which is one of the key equipment of battery
production. adopt three-winding needle and three-station winding, Coordination of equipment operation, fast winding speed, the failure rate is low. uses the servo system to closed loop control the positive and negative electrode and separator tension, realizing the coil-by-turn tension during the winding process, effectively preventing the deformation of battery core’s the latter process.
The PLC interface design is humanized and scientific, and can display the fault location.
Accuracy
±0.3mm
Production efficiency
≥10PPM
Suitable cells size
T: 2-10mm
W:40-100mm
H: 40-160mm
Electrode length
800-2500mm
Air source
0.5Mpa
Operation Ratio
≥95%
Size
2500mm*1700mm*1350mm
Yield rate
≥98%
Winding needle number
Three
Power Supply
380V 50Hz
Air flow
100L/min
Environmental temperature
-40°~+45°

Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 1Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 2Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 3

Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 4
Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 5
Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 6
Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 7Battery Z-fold Pouch Cell Assembly Equipment Semi Automatic Stacking Machine 8
