Pouch Cell Electrode Cutting Machine with Max. L80*W60mm Punching Size, ±0.1mm Precision, and 30 Thousand Times Die Life

Large Image : Pouch Cell Electrode Cutting Machine with Max. L80*W60mm Punching Size, ±0.1mm Precision, and 30 Thousand Times Die Life

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-S100P

Payment & Shipping Terms:

Minimum Order Quantity:	1/PCS
Price:	USD 1900-2500/PCS
Packaging Details:	Wooden Carton
Delivery Time:	4-6 week
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	10 PCS Per Month

Contact Now

Pouch Cell Electrode Cutting Machine with Max. L80*W60mm Punching Size, ±0.1mm Precision, and 30 Thousand Times Die Life

Description

Punching Size:	Max. L80*W60mm	Punching Thickness:	Max. 0.5mm
Punching Precision:	±0.1mm	Punching Pressure:	Max. 1T,For Electrode 500Kg(0.5MPa)
Life Of Cutting Die:	About30 Thousand Times(Normal Use)	Punching Stroke:	12mm
Highlight:	Pouch Cell cutting die Machine , Die Punching Machine Battery Making , Electrode cutting die Machine

Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making

Product Overview

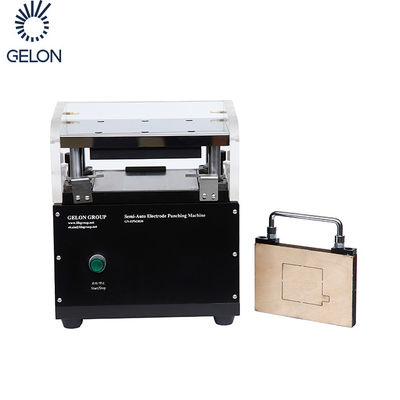

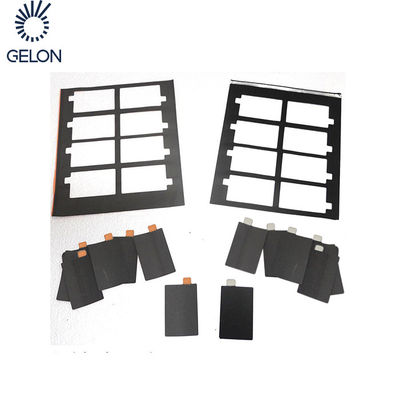

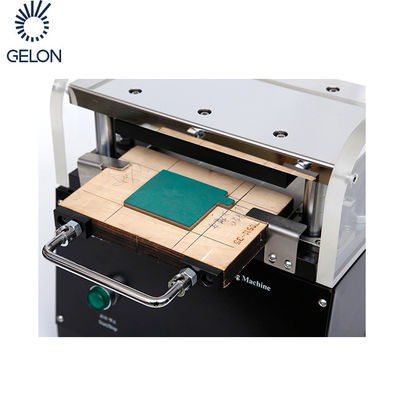

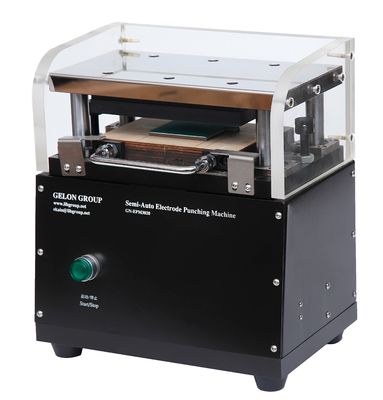

Semi-automatic electrode punching machine designed for cutting cathode and anode electrodes of lithium-ion batteries. This pneumatic die cutting system can be operated within glove boxes and offers customized cutting dies for various electrode sizes and molding requirements.

Technical Specifications

Specification	Details
Gas Source	0.5~1.0MPa Argon/Nitrogen, or 0.7MPa compressed air (outside glove box)
Maximum Punching Size	L80 × W60mm

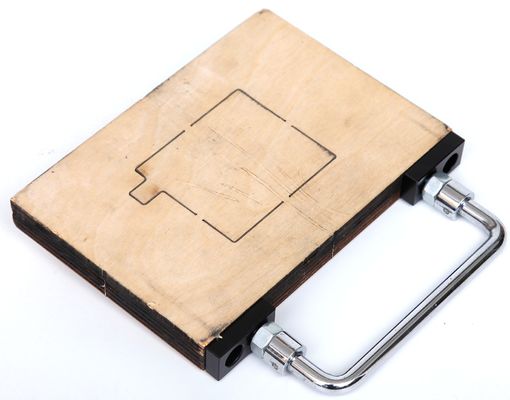

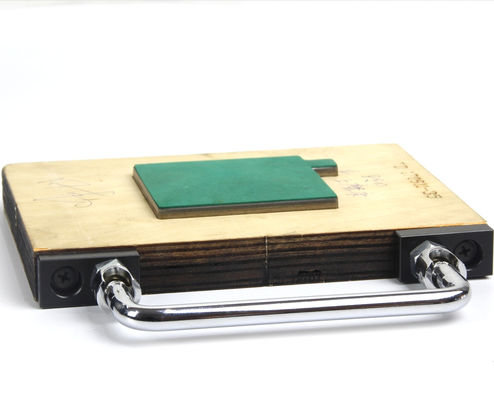

Standard Die Sizes	Cathode: 56×43mm, Anode: 58×45mm (customizable)
Cutting Die Life	Approximately 30,000 cycles (normal use)
Punching Pressure	Maximum: 1T, For electrode: 500Kg (0.5MPa)
Punching Precision	±0.1mm
Maximum Punching Thickness	0.5mm (aluminum-plastic film)
Punching Stroke	12mm
Installation Dimensions	L370mm × W245mm × H245mm
Punching Burr	Vertical burr ≤12μm, Level burr ≤20μm
Weight	32KG
