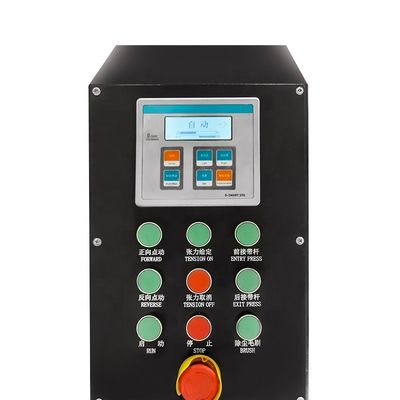

Lithium Battery Making Machine Battery Electrode Rolling Press Calendaring Machine for Lithium Ion Battery Production Li

Large Image : Lithium Battery Making Machine Battery Electrode Rolling Press Calendaring Machine for Lithium Ion Battery Production Li

Product Details:

Place of Origin:	China
Brand Name:	GELON
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD78600-80000/Set
Packaging Details:	Standard Export Package
Delivery Time:	45-60days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000000sets/year

Contact Now

Lithium Battery Making Machine Battery Electrode Rolling Press Calendaring Machine for Lithium Ion Battery Production Li

Description

Product Name:	Rolling Press Machine	Roller Size:	Dia300*400mm
Maximum Pressure Between Rollersf:	70T	Automatic Grade:	Semi-automatic
Weight (KG):	1500	Application:	Battery Electrode Rolling
Heating Temperature:	Max.120±2℃	Effective Use Width:	≥300mm
Use Environment:	Temperature Range 0~+45℃ Relative Humidity: ≤50%	Warranty:	1 Year

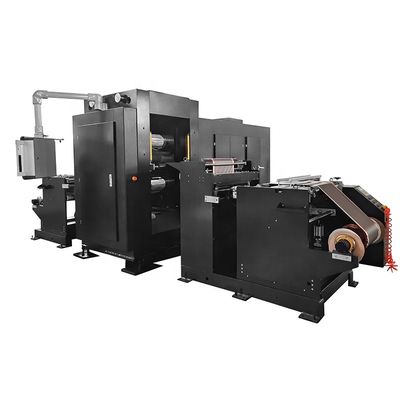

Lithium Battery Making Machine Battery Electrode Rolling Press Calendaring Machine for Lithium Ion Battery Production Line

Equipment description:

. Equipment function: Used in the rolling process of lithium-ion battery electrode production to realize the continuous rolling production of battery electrode coils and meet the specifications and quality required by the battery electrode process;

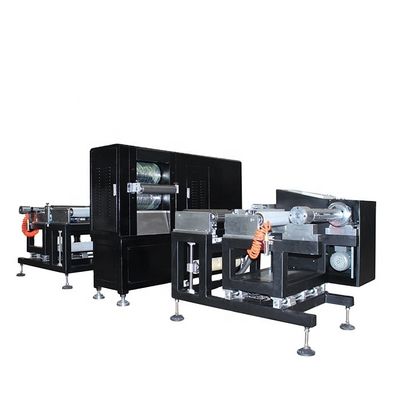

Equipment composition: mainly includes unwinding device, belt connecting device, edge cutting device, dust removal device, heating roller press, rewinding device, hydraulic system, drive control system, roll changing device.

The main performance indicators of the equipment:

Overall dimensions of the continuous rolling machine (length*width*height): about 4.0×2.0×1.8 m

The total weight of the machine: about 4.2 tons

Rolling speed: 0.5-9m/min

Maximum pressure between rollers: 70T

Equipment installation and use requirements:

The loading request for ground:≥3T/m2 ,flatness ±2mm/㎡

Power supply: 380V, 50Hz three-phase five-wire system

Total power: 38kW/set (including 10% safety factor)

Compressed air: pressure 0.2～0.7MPa, flow rate: 20L/min, the outer diameter of the interface pipe is 8mm

Circulating cooling water: pressure 0.2～0.3MPa, flow rate: 50L/min, interface size 20mm

Use environment: temperature range 0～+45℃ relative humidity: ≤50%

Specification

			Item

			Data

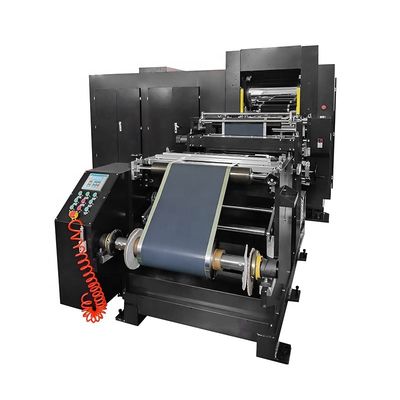

			Unwinding device

Unwinding form: fixed side plate structure, cantilever shaft form 2. Unwinding inflatable shaft: φ75*400mm, equipped with

			inflation gun
Unwinding material roll specification: Max.φ300mm
Unwinding drive: magnetic powder brake, passive unwinding
Tension control mode: the unwinding tension is controlled by the magnetic powder brake, which can be set.
Constant tension mode and taper tension mode
Tension adjustment range: 10～200N
Correction control: infrared photoelectric correction
Deviation correction stroke: ±50mm
Roller specification: Φ70mm, roller surface roughness Ra0.4, dynamic balance G2.5

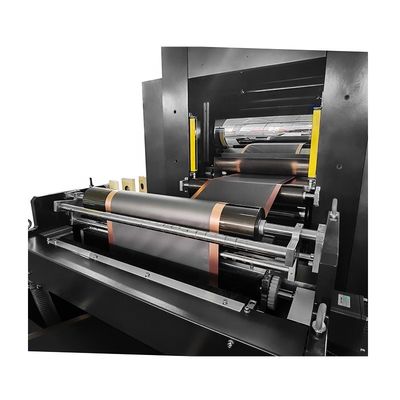

			Edge Cutting device

Function: Used to cut both sides of the gap coating electrode sheet before rolling, reduce the wrinkles of the electrode caused by the inconsistent elongation rate during rolling, and reduce the scrap rate caused by the electrode broken tape 2.Cutter form: manual (pneumatic) feed of the upper cutting blade, by the knife, and the left and right cutters are controlled separately

Cutting edge width: adjustable according to product needs, and can implement single or double cutting
Knife axis drive: independent drive for the lower knife, passive for the upper knife, and automatically match the linear speed of the rolling mill

Upper cutting blade: Φ90×1mm 2 pieces
Under cutting blade: Φ100×2mm 2 pieces
Edge material recycling: automatic collection with its own receptacle

			Dust removal device

Function: active brush roller to clean the dust on the electrode, industrial vacuum cleaner vacuum suction 2. Composition:

			Consists of front and rear brush rollers, air cylinders, brush roller drive motors, industrial vacuum cleaners, etc.
Principle: Brush the dust and burrs on the electrode with the front and back roller brushes, and suck the dust away through the dust collector
Number of brush rollers: 2
Industrial vacuum cleaner power: 1.5kW, air volume: 1800 m3/h

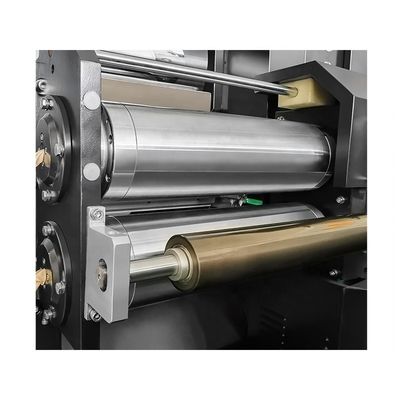

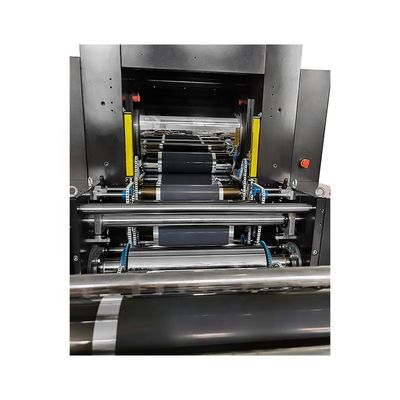

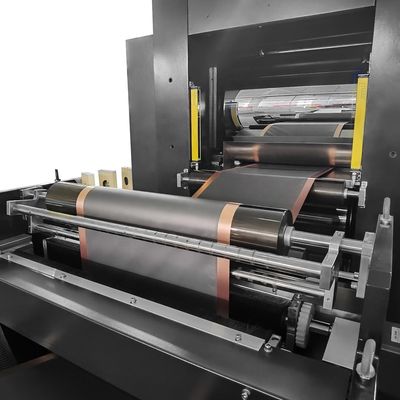

			Heating roller press

Roll size: φ300*400mm 2. Effective use width: ≥300mm
Heating temperature: Max.120±2℃, the temperature is continuously adjustable, controlled by a digital display temperature controller
Heating power: 24kW, heating at room temperature from 20°C to 120°C, heating stability time ≤ 4 hours

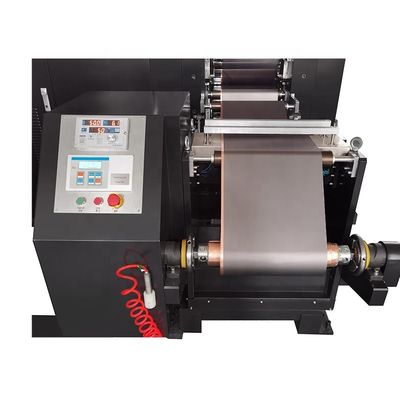

			Rewinding device

Rewinding form: fixed side plate structure, cantilever shaft form 2. Rewinding inflatable shaft: φ75*400mm, equipped with

			inflatable gun
Winding material roll specification: Max.φ300mm
Winding drive: servo motor + magnetic powder clutch
Tension control mode: the winding tension is controlled by the magnetic powder clutch, which can be set.
Constant tension mode and taper tension mode
Tension adjustment range: 10～200N
Correction control: infrared photoelectric correction
Deviation correction stroke: ±50mm
Correction accuracy: ≤±0.1mm

Tag:

Contact Person: Ekain Zhang

Tel: +8618669965529

Fax: 86-0539-8067529

Other Products

1m/min Battery Manufacturing Machine Electrode Continuous Intermittent Coating Machine

Brand: Gelon

Product name: Batery Intermittent Coating Machine

Suitable system: cathode and anode electrode coating process

Equipment coating speed: 0.3m/min

21700 26650 32650 32700 18650 Lithium Ion Battery Production Line 60V20AH

Product Name: 21700 26650 32650 32700 18650 Lithium Ion Battery Production Line Lithium Ion Battery Production Line

Application: Cylinder Cell Production Assembly

Usage: Li-ion Battery Manufacturing

Warranty: 1 year

Full Automatic Battery Manufacturing Machine Pouch Cell Batteries Electrode Separator

Brand: Gelon

Type: Full Automatic Stacking Machine

stacking type: z fold stacking

Electrode putting precision: ±0.2mm

Single Point Automatic Pneumatic Welding Machine 18650 Cylinder Cell Battery

Brand: Gelon

Name: Single Point Pneumatic Welding Machine

Rated Capacity: 2000W

Max. Welding Thickness: 0.5mm

18650 Battery Sealing Machine Battery Manufacturing Machine Cylinder Battery Crimper

Product name: Cylinder cell crimping machine

Power supply: 220V/50Hz

Model: GN-CC50P

Power: 120W

Lithium Battery Making Machine Battery Electrode Rolling Press Calendaring Machine for Lithium Ion Battery Production Li

Pouch Cell Assembly Equipment

Pouch Cell Battery Assembly

Pouch Cell Pilot Line

Battery Manufacturing Machine

Battery Production Equipment

Battery Testing Lab

Battery Assembly Machine

Coin Cell Assembly Machine

Coin Battery Research

Lithium Battery Research

Li Ion Battery Research

Prismatic Cell Assembly

Battery Testing Equipment

Lithium Ion Battery Materials

Lithium-ion Battery Electrode Sheet Winding Welding Machine 18650 21700 Cylindrical Battery Manufacturing Equipment

Slot Die Coating Battery Manufacturing Machine

Lithium Ion Battery Roller Pressing Machine

Lithium Battery Making Machine Battery Electrode Rolling Press Calendaring Machine for Lithium Ion Battery Production Li

Lithium Battery Making Machine Battery Electrode Rolling Press Calendaring Machine for Lithium Ion Battery Production Li

Heating Pressing Battery Manufacturing Machine,

Full Automatic Battery Manufacturing Machine,

Manual Battery Manufacturing Machine

1m/min Battery Manufacturing Machine Electrode Continuous Intermittent Coating Machine

21700 26650 32650 32700 18650 Lithium Ion Battery Production Line 60V20AH

Full Automatic Battery Manufacturing Machine Pouch Cell Batteries Electrode Separator

Single Point Automatic Pneumatic Welding Machine 18650 Cylinder Cell Battery

18650 Battery Sealing Machine Battery Manufacturing Machine Cylinder Battery Crimper

Pouch Cell Assembly Equipment

Battery Automatic Stacking Machine For Pouch Cell Production Machine

Cylinder Cell Pouch Cell Assembly Equipment Automatic Winding Machine

Electrode Rolling Pouch Cell Assembly Equipment Hydraulic Calendaring Machine

Battery Production Equipment

Battery Production machine continuous hydraulic electrode calendaring and slitting all in one machine

18650 26650 Lithium Ion Battery Production Equipment Continuous Slitting Machine

Turnkey Project Battery Production Equipment Full Automatic Production Line

Item	Data
Unwinding device	1. Unwinding form: fixed side plate structure, cantilever shaft form 2. Unwinding inflatable shaft: φ75*400mm, equipped with inflation gun 3. Unwinding material roll specification: Max.φ300mm 4. Unwinding drive: magnetic powder brake, passive unwinding 5.Tension control mode: the unwinding tension is controlled by the magnetic powder brake, which can be set. 6. Constant tension mode and taper tension mode 7. Tension adjustment range: 10～200N 8. Correction control: infrared photoelectric correction 9. Deviation correction stroke: ±50mm 10. Roller specification: Φ70mm, roller surface roughness Ra0.4, dynamic balance G2.5
Edge Cutting device	1.Function: Used to cut both sides of the gap coating electrode sheet before rolling, reduce the wrinkles of the electrode caused by the inconsistent elongation rate during rolling, and reduce the scrap rate caused by the electrode broken tape 2.Cutter form: manual (pneumatic) feed of the upper cutting blade, by the knife, and the left and right cutters are controlled separately 3.Cutting edge width: adjustable according to product needs, and can implement single or double cutting 4.Knife axis drive: independent drive for the lower knife, passive for the upper knife, and automatically match the linear speed of the rolling mill 5.Upper cutting blade: Φ90×1mm 2 pieces 6.Under cutting blade: Φ100×2mm 2 pieces 7.Edge material recycling: automatic collection with its own receptacle
Dust removal device	1. Function: active brush roller to clean the dust on the electrode, industrial vacuum cleaner vacuum suction 2. Composition: Consists of front and rear brush rollers, air cylinders, brush roller drive motors, industrial vacuum cleaners, etc. 3. Principle: Brush the dust and burrs on the electrode with the front and back roller brushes, and suck the dust away through the dust collector 4. Number of brush rollers: 2 5. Industrial vacuum cleaner power: 1.5kW, air volume: 1800 m3/h
Heating roller press	1.Roll size: φ300*400mm 2. Effective use width: ≥300mm 3. Heating temperature: Max.120±2℃, the temperature is continuously adjustable, controlled by a digital display temperature controller 4. Heating power: 24kW, heating at room temperature from 20°C to 120°C, heating stability time ≤ 4 hours
Rewinding device	1. Rewinding form: fixed side plate structure, cantilever shaft form 2. Rewinding inflatable shaft: φ75*400mm, equipped with inflatable gun 3. Winding material roll specification: Max.φ300mm 4. Winding drive: servo motor + magnetic powder clutch 5. Tension control mode: the winding tension is controlled by the magnetic powder clutch, which can be set. 6. Constant tension mode and taper tension mode 7. Tension adjustment range: 10～200N 8. Correction control: infrared photoelectric correction 9. Deviation correction stroke: ±50mm 10. Correction accuracy: ≤±0.1mm
