Lab 100mm Width Vacuum Battery Electrode Coating Machine with 0～100mm/sec Speed and Aluminum Vacuum Plate for Lithium Battery

Large Image : Lab 100mm Width Vacuum Battery Electrode Coating Machine with 0～100mm/sec Speed and Aluminum Vacuum Plate for Lithium Battery

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-VC-10H

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden box
Delivery Time:	within 15 days
Payment Terms:	L/C,T/T
Supply Ability:	100set/month

Contact Now

Lab 100mm Width Vacuum Battery Electrode Coating Machine with 0～100mm/sec Speed and Aluminum Vacuum Plate for Lithium Battery

Description

Coating Speed:	0～100mm/sec	Max. Stroke:	300mm
Vacuum Plate:	Aluminum Plate With Vacuum	Film Applicator Range:	0.01～3.5mm
Weight:	65KG
Highlight:	100mm Battery Electrode Coating Machine , lithium ion battery coating machine , Lithium Battery Electrode Coating Machine

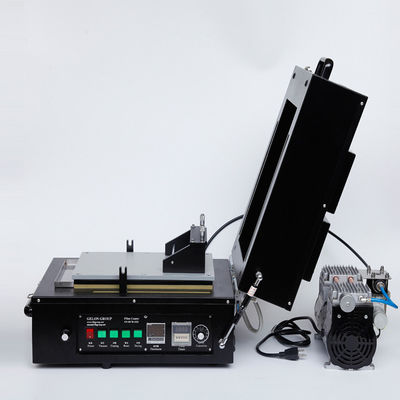

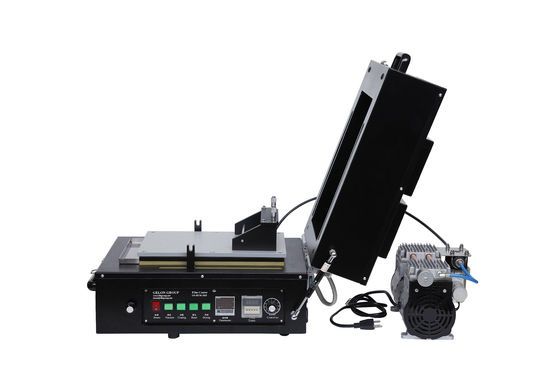

Lab 100mm Width Vacuum Battery Electrode Coating Machine For Lithium Battery

Li-ion battery coating machine Lab Battery Electrode Film Coater. This product is widely used in various high temperature coating research, such as ceramic film, crystal film, battery material film, and special nano film. It can adapt to the development of science and technology in future high temperature film formation.

Technical Specifications

Parameter	Specification
Coating Speed	0-100mm/sec
Maximum Stroke	300mm
Vacuum Plate	Aluminum plate with vacuum

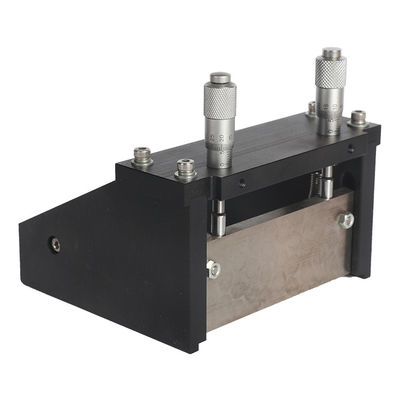

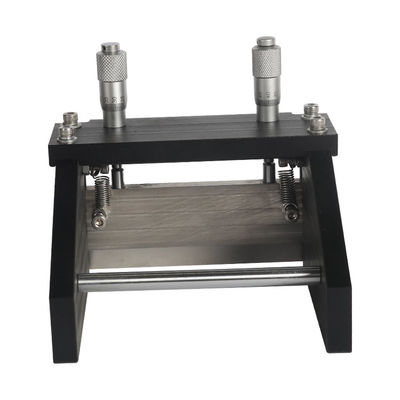

Film Applicator Range	0.01-3.5mm

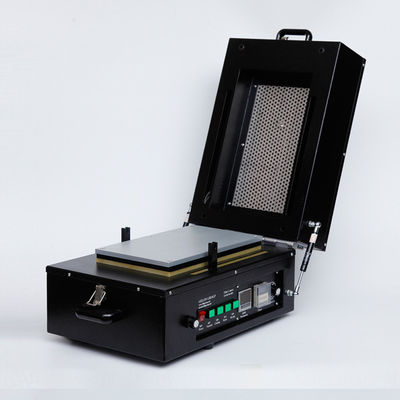

Heating and Drying System	Room temperature-200°C, Digital display temperature controller with ±1°C accuracy
Power	220V/50Hz
Weight	65KG
Product Dimensions	500mm(L)×310mm(W)×330mm(H)
Warranty	1 year

Standard exported package: Internal anticollision protection, external export wooden box packaging
Shipping by FedEx, by air, or by sea according to customers' requirements to find the most suitable way

Complete Lithium Battery Solutions

We also supply all materials and full sets of equipment for Li-ion battery production:

Full Set of Lithium Battery Materials

LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2, Graphite (MCMB) and other cathode & anode battery materials
Aluminum foil, copper foils, battery separator, etc.

Full Set of Lithium Battery Equipment

Mixing machine → Coating machine → Oven → Rolling machine → Welding machine → Slitting/Cutting machine → Winding machine → Sealed machine, etc.

Complete Lithium Battery Technology

We can design the laboratory and production line according to customer's requirements.
