Product Details:
|
| Material: | Stainless Steel | Equipment Size: | 1800 Mm（L）×2000mm（D）×1800mm（H） |
|---|---|---|---|
| Efficiency: | High Efficiency | Power Supply: | 220 VAC±5﹪，single Phase，10 KW |
| Battery Type: | 18650,21700cylindrical Type | Production Capacity: | 30000pcs Per Day |
| Equipment Type: | Full Automatic |

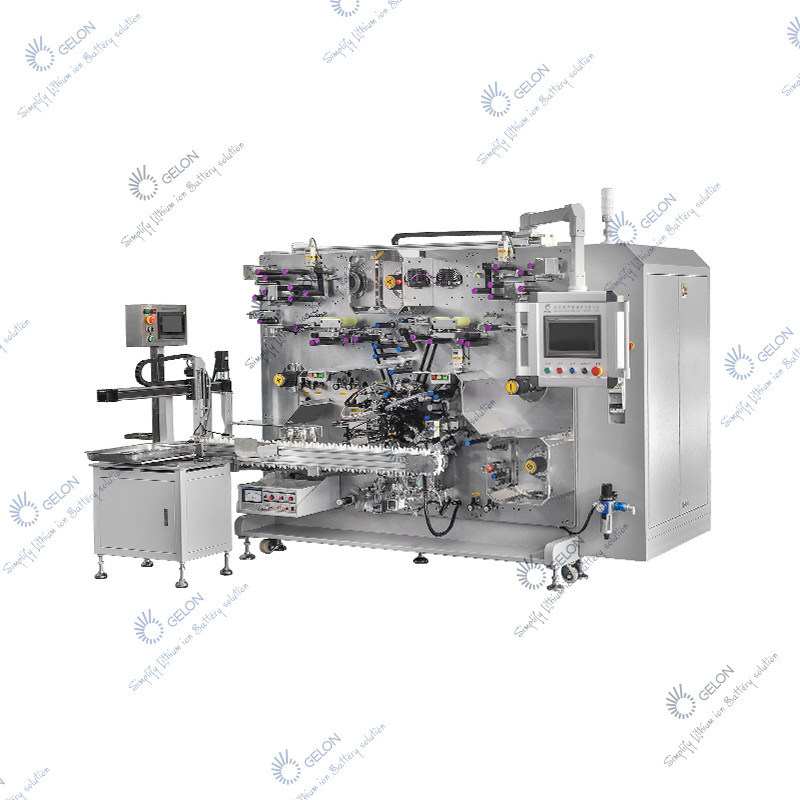

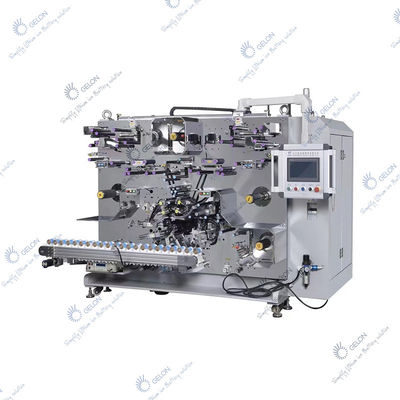

Full Automatic Lithium Ion Battery Cylindrical Cell Electrode Winding Machine
equipment function description
This machine is mainly used for cylindrical lithium ion battery winding.
二,The size and requirement for the raw materials
2.1Materials specificaiton =unit:mm
| materials | Inner dia | External dia | width | length |
| Cathode electrode | φ76.2 | ≤φ400 | 35~65 | 0.1~0.2 |
| Anode electrode | φ76.2 | ≤φ400 | 35~65 | 0.1~0.2 |
| separator | φ76.2 | ≤φ300 | 40~70 | 0.015~0.030 |
| end tape | φ76.2 | ≤φ150 | 20~55 | 0.02~0.05 |
Note:1,The quantity of tags for single electrode should be less than 4 unit.
2,Suggestion: Exposed length less than 25 mm
Winding precision(materials suit for the 2.1 requirement)
1)Separator alignment error±0.5 mm
2)Electrode alignment error±0.5 mm
3)Height error of core less than 0.5 mm
3,Production capacity
9unit/min when the length of electrode less than 800mm
8unit/min when the length of electrode less than 1600mm
Qualified rate:More than 98%;
Efficient rate:more than 95%
4,ancillary facility
1)Land requirement:1800 mm(L)×2000mm(D)×1800mm(H)；
2)Power supply:220 VAC±5﹪,single phase,10 KW；
3)Air supply:5~7 kgf/cm²,100 l/min；
4)no corrosive gas, liquid and explosive gas
