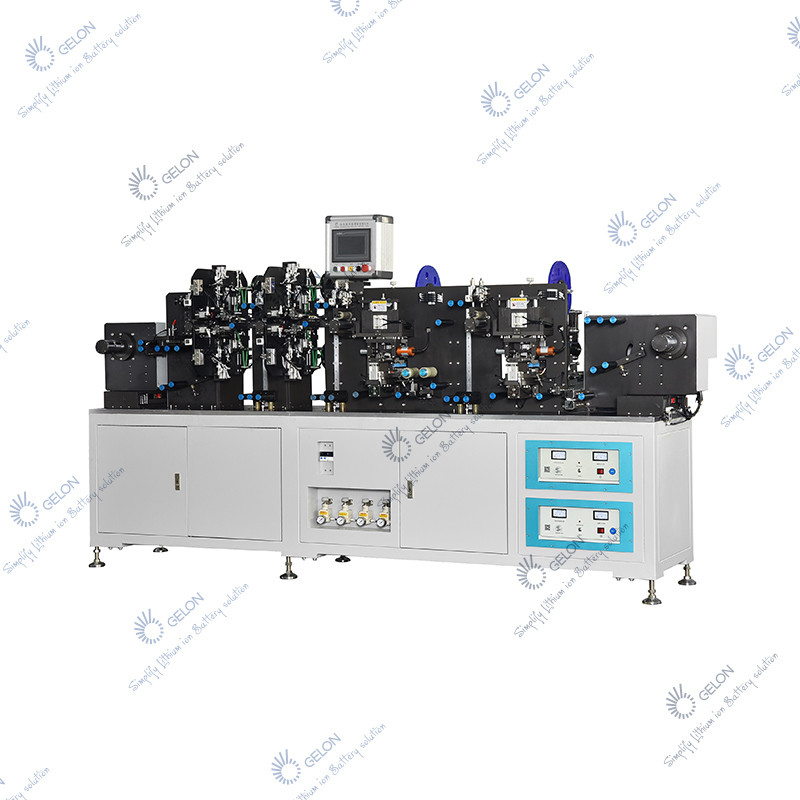

Large Image :  Lithium Ion Battery Cylindrical Cell Automatic Electrode Making Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-130Y
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 60000USD-80000USD
Packaging Details: Wooden box package
Delivery Time: 2-3months
Payment Terms: L/C, T/T
Supply Ability: 30set per month

Lithium Ion Battery Cylindrical Cell Automatic Electrode Making Machine

Description
Material: Stainless Steel Efficiency: High Efficiency
Machine Dimension: 2000mm (L) × 1500mm (W) × 1700mm (H) Power Supply: AC220V, Single-phase
Battery Type: Cylindrical Cell Certificate: CE

Lithium Ion Battery Cylindrical Cell Automatic Electrode Making Machine

Lithium Ion Battery Cylindrical Cell Automatic Electrode Making Machine 0





1. Adapt to material specifications







Material



Model

Length(mm) Width(mm) Thick(μm)



Max Outer Dia(mm)

Inner Dia

(mm)

Size range

Size

range

Tolera

nce

Size

range

Toleran

ce

Electrode Roll 300-1000 30-70 0.2 100-280 5 ф400 ф76.2
Tabs Roll 30-75 3,4,5 0.2 100-150 5 ф400 ф80
Tabs tape Roll Around of tabs 6-12 0.2 50-80 5 ф200 ф76.2

Protective

tape

Roll 30-70 6~20 0.2 50-80 5 ф200 ф76.2

2. Parameters

2.1 Dimensions: 2000mm (L) × 1500mm (W) × 1700mm (H) (both sides containing the receiving institutions as an example).

2.2 Weight: about 1000kg (both sides with the receiving institutions as an example).

2.3 Power: AC220V, single-phase; voltage fluctuations of less than ± 10%; power supply: 3.5KVA.

2.4 Compressed air: 0.4 ~ 0.7Mpa (4-7kgf / cm²), the flow of each compressed air 80L / min.



2.5 Ambient temperature: 20 ~ 35 ℃.

2.6 Relative Humidity: 5 ~ 55% HR.

2.7 Environmental cleanliness: not less than 100,000, the scene without corrosive gases, liquids, explosive gases.



Lithium Ion Battery Cylindrical Cell Automatic Electrode Making Machine 1Lithium Ion Battery Cylindrical Cell Automatic Electrode Making Machine 2Lithium Ion Battery Cylindrical Cell Automatic Electrode Making Machine 3
