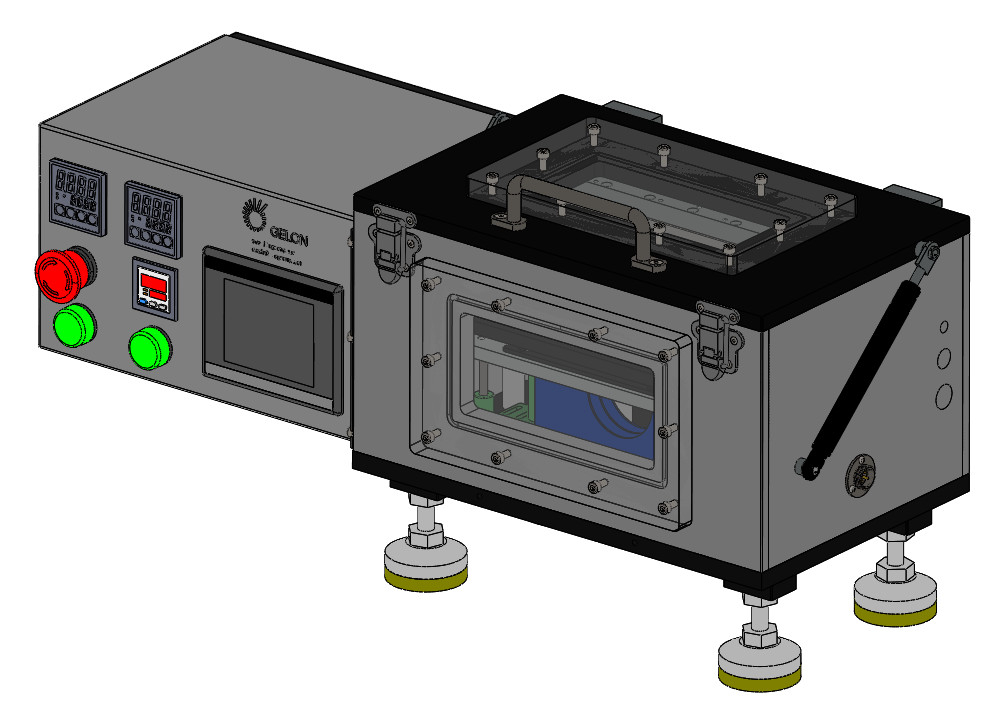

Pouch Cell Vacuum Sealing Machine

Pouch Cell Vacuum Sealing Machine
Pouch Cell Vacuum Sealing Machine

Large Image :  Pouch Cell Vacuum Sealing Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-200
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD10900-11000/SET
Packaging Details: Wooden Case/Can Custom
Delivery Time: about 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month

Pouch Cell Vacuum Sealing Machine

Description
Warranty Time: 1 Year Warranty, Lifetime Maintenance Application: It Can Be Used In The Glove Box. Please Check Whether The Space Of The Glove Box Matches The Overall Size Of The Equipment.
Gross Weight: About 85kg Net Weight: About 68kg
Package Size: About L800*W380*H520mm Size: About L700*W280*H330mm
Power: 1800W Vacuum Pump Volume: ≥30m³/h
High Light:

pouch cell vacuum sealing machine

,

first second seal battery machines

,

vacuum sealing machine 6-in-1

pouch cell vacuum 6-in-1 sealing machine pre-sealing top seal side sealing standing first second seal battery machines



1. One-piece design, the main body of the device can be placed in the glove box for use.

2. It is suitable for top sealing, side sealing, vacuum pre-sealing, final sealing, electrolyte injection and vacuum degassing process of small and medium-sized pouch cell.

3. The vacuum degree is kept well to ensure the moisture content of the finished battery.

4. Two perspective windows are designed, through which the changes in the chamber can be observed during work.

5. The action of the cylinder is controlled by a button switch and driven by PLC.

6. Compatible with 6 kinds of functions, realize multi-purpose of one machine.

item parameter mote
Upper sealing head temperature Advice<250℃ Can be adjust
Vacuum degree ≥-95KPa Can be adjust
Sealing time 0-99s can be adjust
Sealing side time Advice 3~4s
Sealing thickness 0~0.5mm
Sealing length 190mm
Cell size Max L180mmxW180mm Including air bag and battery tabs
Sealing width 5mm(standard) Can be customized
Injection pump Precision rotary plunger, injection volume can be adjustable The injection pump need additional cost
injection precision ≥±0.6%
Degassing time 0-99.99s(0S-99.99H),adjustable
Charging time 0-99.99s(0S-99.99H),adjustable
Cycle time (0-9999)x100, adjustable
Air supply 0.5~0.8MPa Argon,Nitrogen air,or 0.7MPa compressed air
Power supply AC220V/50Hz.110V/60Hz Can be customized
Vacuum pump volume ≥30m³/h
power 1800W
size About L700*W280*H330mm
Package size About L800*W380*H520mm
Net weight About 68kg
Gross weigjt About 85kg
Application It can be used in the glove box. Please check whether the space of the glove box matches the overall size of the equipment.
Warranty time 1 year warranty, lifetime maintenance



Pouch Cell Vacuum Sealing Machine 0Pouch Cell Vacuum Sealing Machine 1Pouch Cell Vacuum Sealing Machine 2Pouch Cell Vacuum Sealing Machine 3Pouch Cell Vacuum Sealing Machine 4Pouch Cell Vacuum Sealing Machine 5

We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
