5V6A Lower Current Battery Testing Equipment

5V6A Lower Current Battery Testing Equipment
5V6A Lower Current Battery Testing Equipment 5V6A Lower Current Battery Testing Equipment 5V6A Lower Current Battery Testing Equipment 5V6A Lower Current Battery Testing Equipment

Large Image :  5V6A Lower Current Battery Testing Equipment

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: BTS5V6A-S1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 970-1500 set
Packaging Details: Standard export package
Delivery Time: 15-20 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 set per month

5V6A Lower Current Battery Testing Equipment

Description
Product Name: 5V6A Battery Tester Input Power: AC 220V ±10% / 50Hz
Input Active Power: 425W Input Resistance: ≥1MΩ
Noise: <85dB Number Of Channels: 8
High Light:

5V6A Battery Testing Equipment

,

5V6A Battery Tester

,

Lower Current Battery Testing System

Battery Tester 5V6A Lower Current Battery Testing System Analyzer Battery Testing Equipment



Description:

High Power BTS4008 EV/PHEV/HEV Battery Testing System

supports EV battery pulse test, DCIR (direct current internal resistance) test, Cycle life test, Rate test.
5V30A/5V60A/5V100A/10V20A/30V10A/40V10A/50V100A/60V20A/60V100A



Specification:

5V6A Battery Testing Equipment--Double Range


Model BTS-5V6A Battery testing equipment Equipment material code CT-4008 5V6A
Input power AC 220V ±10% / 50Hz
Input active power 425 W
Resolution AD:16bit;DA:16bit
input resistance ≥1MΩ
Voltage Constant voltage range control 25mV~5V
Minimum discharge voltage Both ends of the upper and lower fixtures can discharge to 1.0V, 2m line length to 1.5V
Accuracy ± 0.05% of FS
stability ± 0.05% of FS
Current Output range per channel Range 1:0.5mA-0.1A;Range 2:0.1A-6A
Accuracy ± 0.05% of FS
Constant current cut - off current 12mA
stability ± 0.05% of FS
Power Single-channel output power 30W
stability ± 0.1% of FS
Time Current response time Maximum current rise time 1ms
Working time range ≤(365*24) Hour / step Time format support 00:00:00(h,min,s)
data record Data recording conditions Minimum sampling time:100ms
Minimum sampling voltage:10mV
Minimum sampling current:6mA
Recording frequency 10Hz
Charge Charging mode Constant current charging, constant voltage charging, constant current constant voltage charging, constant power charging
Cutoff condition Voltage, current, relative time, capacity, -△V
Discharge Discharge mode Constant current discharge, constant power discharge, constant resistance discharge
Cutoff condition Voltage, current, relative time, capacity,-△V
Pulse mode Charge Constant current mode, constant power mode
Discharge Constant current mode, constant power mode
Minimum pulse width 500ms
Number of pulses A single pulse step supports 32 different pulses
Charge and discharge continuous switching A pulse step can be achieved from the charging to the discharge of continuous switching
Cutoff condition Voltage, relative time
DCIR test Support custom point for DCIR calculation
Cycle Cyclic test range 1~65535 times
Number of steps in a single cycle 254
Loop nesting With nested loop function, the maximum support 3 nesting
Protect Safety protection ● Power-down data protection
● Offline test function
● Can set the security protection conditions, set the parameters include: voltage limit, voltage limit, current limit, current limit, capacity limit, delay time, protection class IP20
Channel characteristics The constant current source and the constant voltage source adopt the double closed loop structure
Channel control mode Independent control
Voltage and current detection sampling Four-wire connection
Noise <85dB
Database Using MySQL database centralized management of test data
Host computer communication Based on TCP / IP protocol
Server operating system Windows 7
Data output mode EXCEL2003,2010,TXT
Server disk configuration 500GB
Communication Interface Network port
Leakage current 0.005mA
Number of channels 8
Equipment working environment requirements
Item Index
Operating temperature range 0 ℃ ~ 40 ℃ (in the range of 25 ± 10 ℃, to ensure measurement accuracy: accuracy drift 0.005% of FS / ℃)
Storage temperature range -10℃~50℃
Working environment Relative humidity range ≤70% RH (No condensation)
Storage environment Relative humidity range ≤80% RH (No condensation)
Fixture type
Fixture picture
Alligator fixture Polymer fixtures
Device size(W*D*H)(mm) 3U1F,480*380*130
Weight 20kg

5V6A Lower Current Battery Testing Equipment 05V6A Lower Current Battery Testing Equipment 15V6A Lower Current Battery Testing Equipment 25V6A Lower Current Battery Testing Equipment 35V6A Lower Current Battery Testing Equipment 45V6A Lower Current Battery Testing Equipment 5



We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

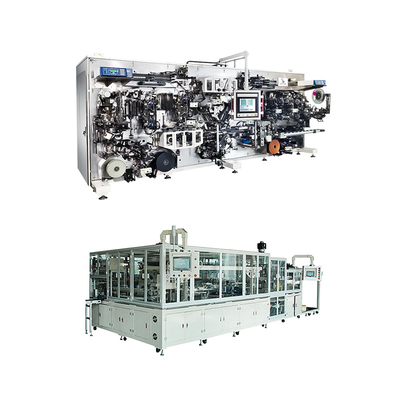

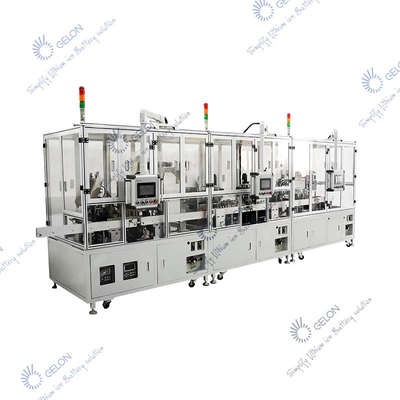

2.Full set of lithium battery equipment,for example:

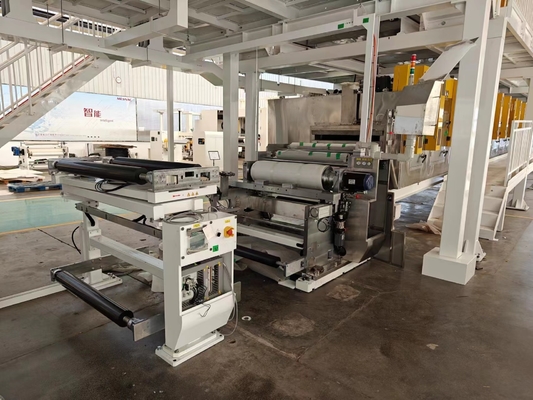

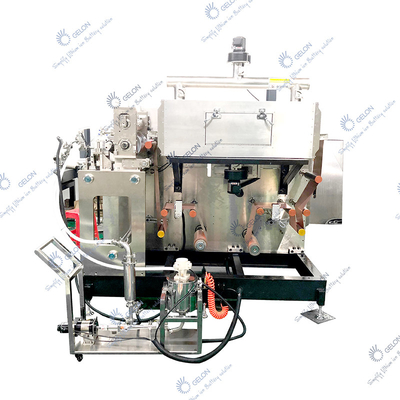

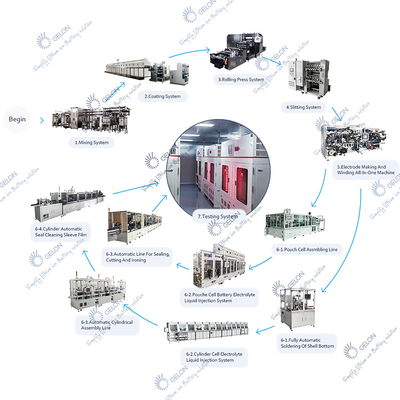

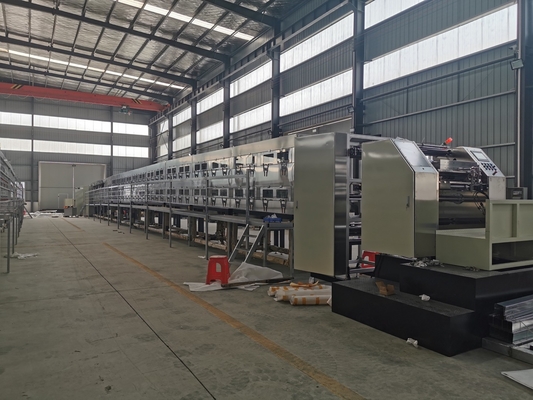

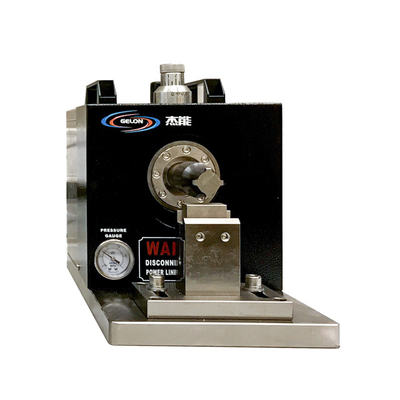

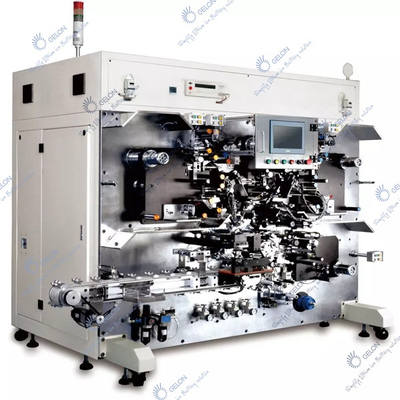

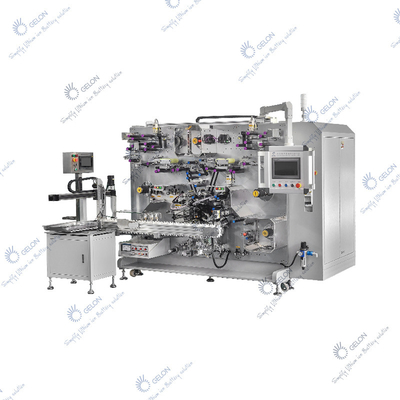

mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
