Product Details:
|
Product Name: | Battery Coating Machine | Vacuum Degree: | Vacuum Above Or Equal To -84 Kpa |
---|---|---|---|
Temperature: | Suggested Temperature Around 120 ℃ | Effective Dimension Of Vacuum Suction Plate: | 300mm(W) X 600mm(L) |
Vacuum Suction Plate: | 231 Fine Holes (approx. Φ 0.5mm/each) | Vacuum Pump Capacity: | ≥30m³/h |

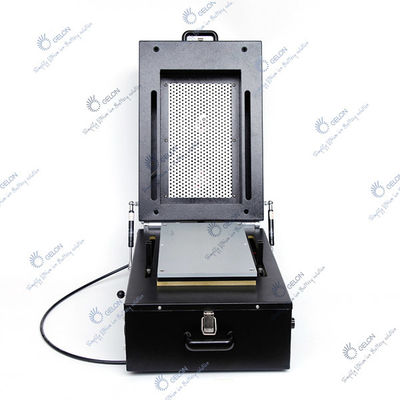

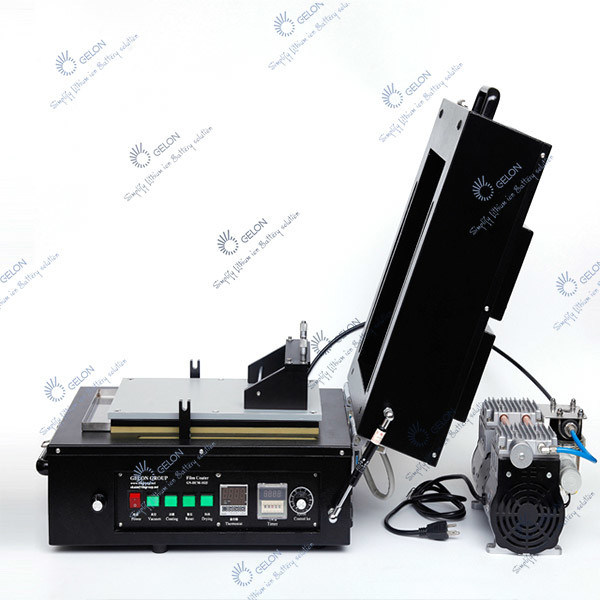

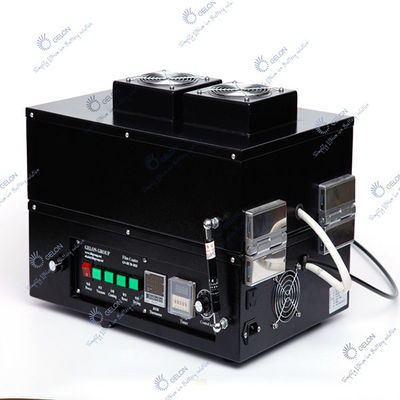

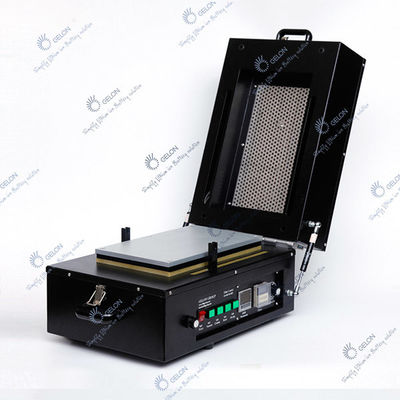

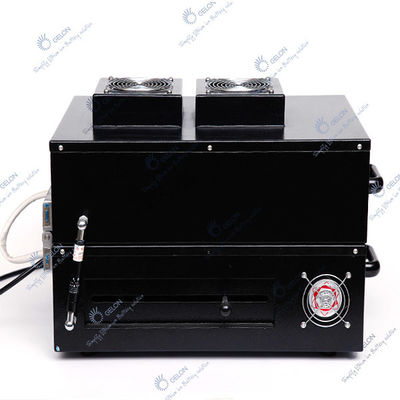

Battery Laboratory Coating Machine Heating 300x600 Battery Manufacturing Machine
Description:

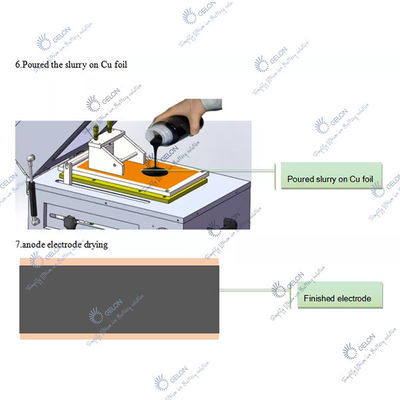

This product is adjusted with a micrometer to achieve the film thickness to be coated. The instrument is equipped with a precise adjustable membrane device. The moving push rod drives it to move at a constant speed, so as to achieve the uniformity of slurry coating on the substrate. This device is especially suitable for making battery substrates, which can ensure the uniformity of cathode/ anode material density at each location of the substrate.
Specification:
Name | Parameters | Remark |
Vacuum degree |
Vacuum above or equal to -84 Kpa |
Vacuum is set freely according to demand |
Temperature |
Suggested temperature around 120 ℃ |
The maximum temperature must not be higher than 150 degrees C |
Effective dimension of vacuum suction plate |
300mm(W) x 600mm(L) |
Other sizes are customized according to customer requirements |
Vacuum suction plate | 231 fine holes (approx. Φ 0.5mm/each) | |
Adjustable membrane apparatus |
300mmstandard configuration |
The device is equipped with a set of 300 mm thickness adjustable film maker with a precision of 0.02mm. The adjustable thickness range is 0.01 - 3.5 mm; (Optional 300mm thickness width can adjust the film regulator, the film width range can be arbitrarily adjusted between 0-300mm); |
Air source |
0.5~0.8mpa argon and nitrogen cylinders, or 0.7MPa compressed air | Compressed air is not recommended in glove boxes |
Power Supply | AC220V/50Hz.110V/60Hz | Customized according to customer requirements |
Vacuum pump capacity |
≥30m³/h | |
Power | 1200W | |
Equipment Dimension | About L910*W570*H330mm | |
Size of wooden case after equipment packaging |
About L1230*W700*H510mm |
|
Net weight of equipment |
About 76Kg | Excluding weight of vacuum pump |
Gross weight of equipment | About 111kg | |
Use site |
It can be used in the glove box. Please check whether the space of the glove box matches the overall dimensions of the equipment |
|
Warranty period | 1 year | |
Note: An optional viscometer locks the viscosity of the slurry used for optimum coating, thus maintaining the smoothness of the coating for each test coating. A vacuum oven may be required to dry the film and remove the binder. To ensure the tightness of the coated electrode material with the collector base material, roll press can be used. |
We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.
2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
