500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine

500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine
500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine 500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine 500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine 500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine

Large Image :  500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-VM-7P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2395-3660 set
Packaging Details: Standard export package
Delivery Time: 15-20 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 set per month

500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine

Description
Product Name: Vacuum Planetary Mixing Machine Speed: Max.600rpm
Mixing Time: 0-600min Can Be Set Multi-stage Function: Three-stage Speed Can Be Set
Equipment Size: 360(L)*340(W)*580(H)mm Weight: About 60kg

500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine



Description :

The planetary vacuum mixer can be applied to the mixing process of various solvents and powders, such as the raw material batching process of lithium ion batteries, tape, solar energy, and chemical industries. The equipment is beautiful in appearance, small size, convenient and easy to use. The speed of the motor is adjusted in the man-machine interface to drive the blades to rotate and stir the slurry evenly.

It is an ideal choice for laboratory slurry preparation.



Main features :

(1) The equipment is equipped with dual-shaft planetary ribbon stirring paddle and single-shaft blade stirring paddle, and different stirring shaft forms and combinations are configured according to the size of the stirring tank;

(2) The design of forward and reverse mixing function can realize high-speed mixing of higher viscosity slurry with good mixing uniformity;

(3) The vacuum environment can effectively eliminate the bubbles generated during the mixing process. The machine comes with a vacuum system;

(4) Multi-stage speed operation is possible, and the stirring speed and time of each stage can be set;

(5) The volume of the stirring tank is respectively 50ml, 150ml, 500ml optional, (can be customized according to requirements);

(6) The bracket design is convenient for operation and ensures the safety during the vacuum mixing process;



Equipments parameters :

1. Power supply: voltage single-phase 110~220VAC±10%, frequency 50/60Hz, Power 500W

2. Use environment: the recommended environment temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference

3. Speed: Max.600rpm

4. Vacuum: Built-in vacuum pump, the vacuum degree is higher than or equal to -70Kpa

5. Mixing time: 0-600min can be set

6. Multi-stage function: three-stage speed can be set

7. Working viscosity: Max.10000mpa.s under the condition of 600r/min speed, higher viscosity can be achieved by lowering the speed

8. Mixing tank:

Mixing tank 50ml ---Effective volume Max.30ml

Mixing tank 150ml --- Effective volume Max.120ml

Mixing tank 500ml ---Effective volume Max.400ml

(Can be customized according to customer needs)

9. Stirring paddle: 150ml and 500ml tanks are equipped with dual-shaft planetary ribbon type stirring paddles, and 50ml tanks are equipped with single-shaft blade type stirring paddles as standard;

10. Equipment size: 360(L)*340(W)*580(H)mm

11. Weight: about 60kg



Specification :

Powder Supply AC 220V/110V
Powder 200W
Rotary Speed 0-600 rpm
Mixing Time 0-600 min can be adjustable
Vacuum Degree -0.08P ma

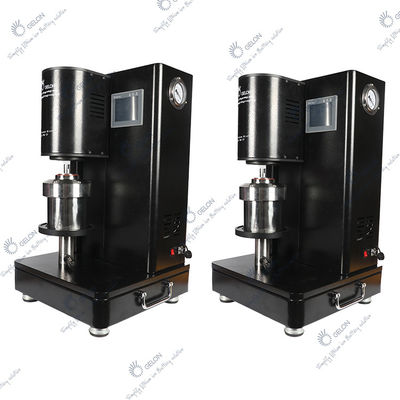

500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine 0500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine 1

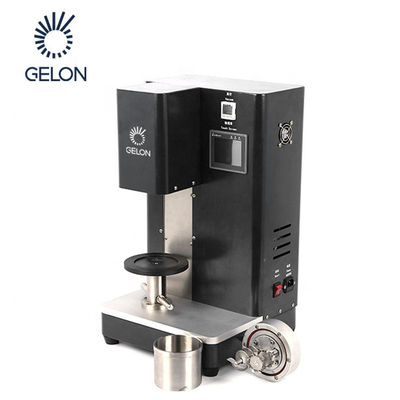

500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine 2

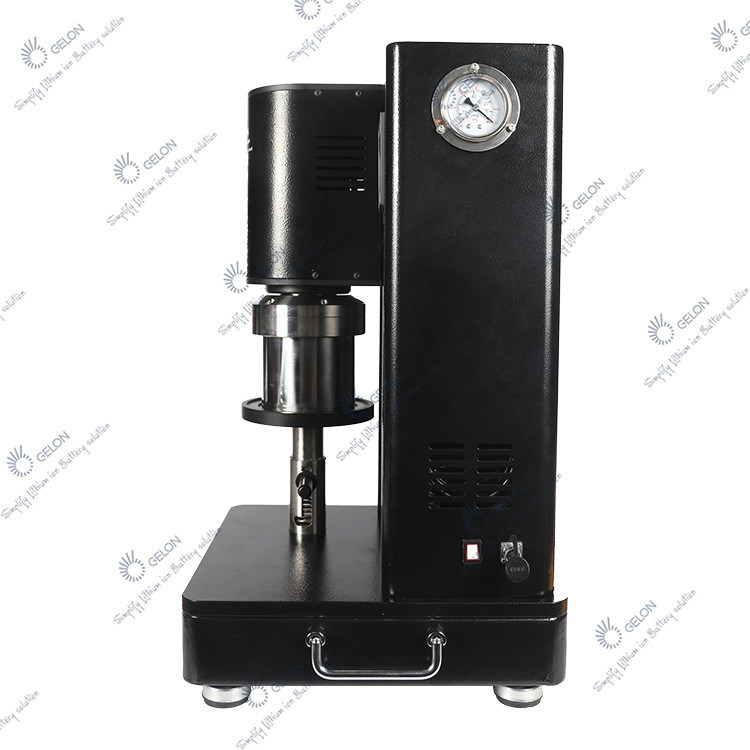

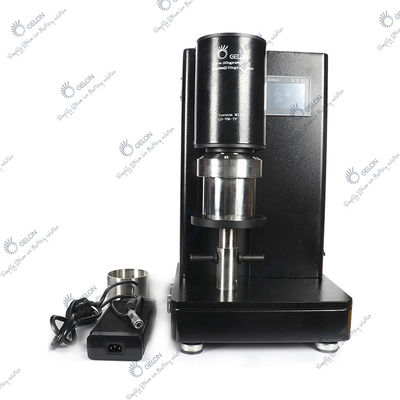

500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine 3500ml Vacuum Planetary Mixing Machine Battery Slurry Spinning Machine Battery Manufacturing Machine 4



We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
Any more info, pls kindly contact : mavis@libgroup.net
