Product Details:
|
| Punching Size: | Max. L80*W60mm | Punching Thickness: | Max. 0.5mm |
|---|---|---|---|
| Standard Die: | Cathode56*43mm Anode58*45mm,customized As Request | Life Of Cutting Die: | About30 Thousand Times(Normal Use) |
| Installment Size: | L370mm*W245mm*H245mm | Weight: | 32KG |
| High Light: | 0.5mm Pouch Cell Battery Assembly,lithium battery making machine,80x60mm electrode punching machine |
||

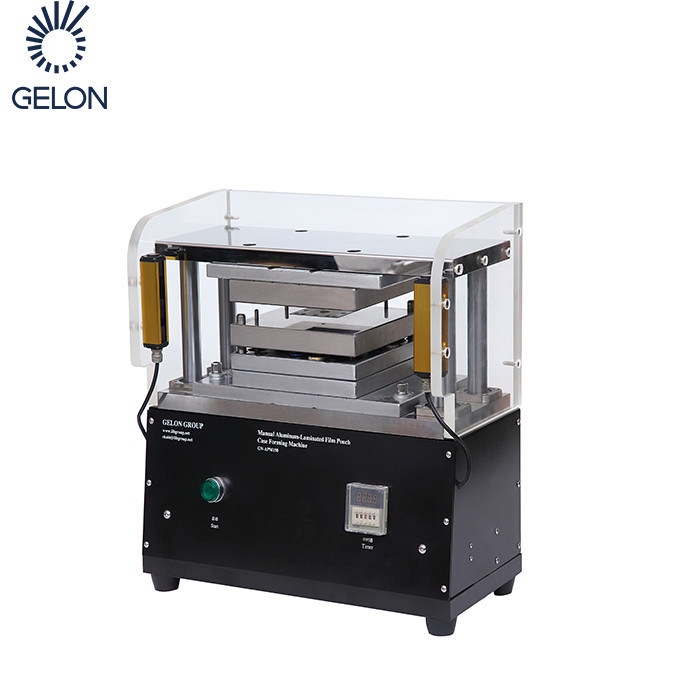

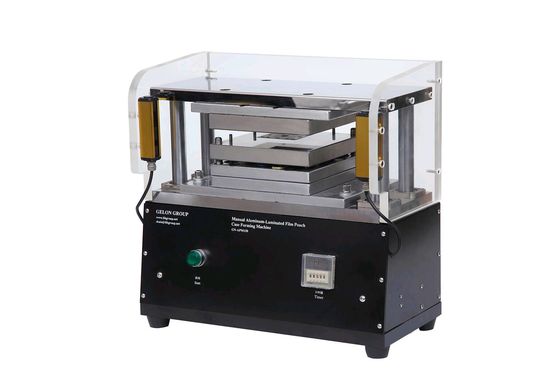

Pouch Cell Aluminum Laminated Film Pouch Former Die Machine
Semi-automatic electrode punching machine is used for cutting cathode &anode electrode of li ion battery.It can die sheet electrode by pneumatic,and can be put in the glove box,also offer customized any cutting die to make molding and die cutting with different size of electrodes .
1.Gas source:0.5~1.0MPa Argon /nitrogen,or 0.7MPa compressed air(No in glove box)
2.Punching size:Max. L80*W60mm
3.Standard die:Cathode56*43mm Anode58*45mm,customized as request
4.Life of cutting die:About30 thousand times(Normal use)
5.Punching pressure:Max. 1T,For electrode 500Kg(0.5MPa)
6.Punching precision:±0.1mm
7.Punching thickness:Max. 0.5mm(aluminum-plastic film)
8.Punching stroke:12mm
9.Installment size:L370mm*W245mm*H245mm
10.Punching burr:Vertical burr≤12μm,level burr≤20μm
11.Weight:32KG
