Product Details:
|
| Product Name: | Gelon Battery Equipment Automatic Winding Machine | The Dia. Of Winding Needleure: | φ4（standard） |
|---|---|---|---|
| Winding Dia: | 13-26 Mm | Separator Width: | 40 ~ 70 Mm |
| Separator Max Dia: | 300 Mm | Cathode And Anode Electrode Width: | 35-60mm |
| Cathode And Anode Electrode Max Dia: | 400mm | ||
| High Light: | Electrode Making Battery Production Equipment,Automatic Motor Winding Machine,Battery Production Equipment Automatic |
||

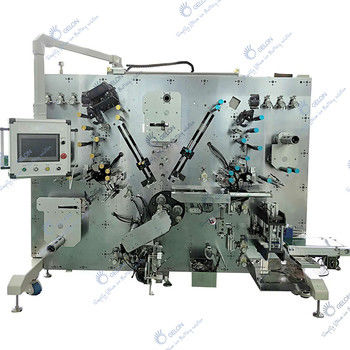

Cylinder Battery Semi-Auto Motor Winding Machine Electrode Winder 18650 Battery Production Equipment
This machine is mainly used for cylindrical lithium ion battery winding. The working process is as follows: the cathode, anode and separator are active unwinding, which are respectively treated by dedusting and removing iron and static electricity, and are introduced into the winding part and wound according to the process requirements, and the termination tape is pasted. The finished products are automatically cut off, and after short-circuit detection and defective products are removed, the good products are transported to the collection table, and the full-automatic winding process is realized.
1. The dia. of winding needle:φ4(standard)
2. Winding Dia.: φ13-26 mm；
3.Separator width:40 ~ 70 mm
4. Separator Max Dia.:φ300 mm；
5.Cathode and anode electrode width:35-60mm
6.Cathode and anode electrode max Dia: 400mm.
7. The width of terminated tape: 35-65mm 8.Winding precision: 1) Separator alignment error ±0.3mm； 2)Electrode alignment error ±0.3mm； 3) Cell height error ＜0.5mm
9.Capacity ability: Electrode <800mm,production efficiency ≥8～10 PCS／min； Electrode <1600mm,production efficiency ≥4～6 PCS／min
| The dia. of winding needle | φ4(standard) |
| Winding Dia | φ13-26 mm |
| Separator width | 40 ~ 70 mm |
| Separator Max Dia | φ300 mm |
