Product Details:
|
| Production Name: | Case Making Machine Al Laminated Film Case Press Forming Machine | Usage: | For Pouch Cell Production Line |
|---|---|---|---|
| Customzie: | Yes | MOQ: | 1 Pc |
| Video Outgoing-inspection: | Provide | Machinery Test Report: | Provide |
| Warranty: | 1 Year | Installation Guiding: | Provide |
| Supply 1: | Lithium Ion Battery Raw Material | Supply 2: | Lithium Ion Battery Production Equipment |
| Supply 3: | Lithium Ion Solid State Battery Raw Material |

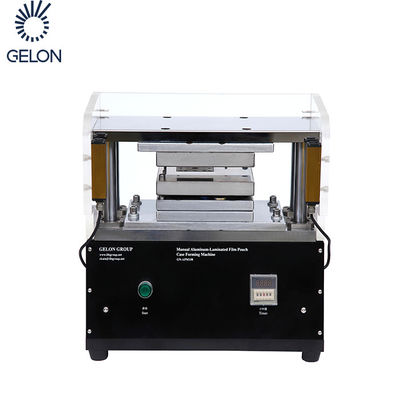

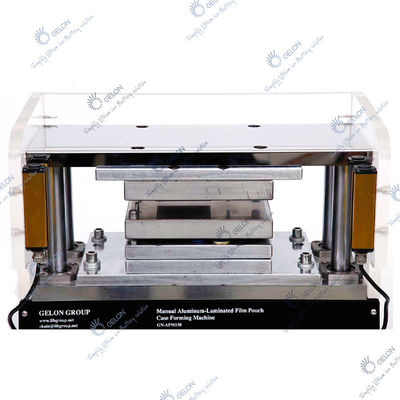

Lithium Battery Pouch Cell Case Making Machine Al Laminated Film Case Press Forming Machine
Al laminated film forming machine uses the principle of gas-liquid pressurization to realize the pressure required for punching and forming, so that the smaller air source pressure is converted into a larger hydraulic output, and the cylinder drives the mold to punch the aluminum laminated film forming as the shell.
1. This machine is driven by a gas-liquid pressurized cylinder, with low energy consumption and high output (use of low-cost gas source conversion cost, high output hydraulic pressure), energy saving, compact structure and high efficiency
2. The machine adopts full air control, easy to operate, and realizes automatic pressurization through pneumatic logic air circuit
3. The upper and lower templates have high strength and stable performance

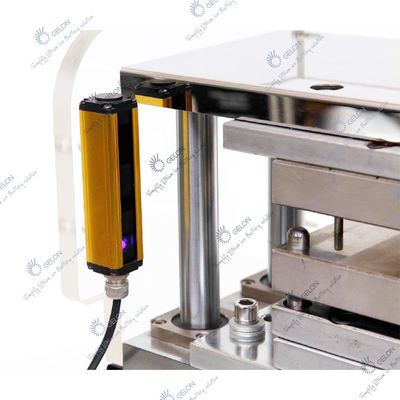

4. The machine has perfect safety protection performance and double button operation protection
5. Small size, can save space;
| ITEMS | Parameter |
| Working area | Table panel area 400*500 |
| Machine mold | With 1 set of al laminated forming mold |
| Vacuum source | ≥ 1 5 L/S |
| Al laminated film thickness | 0.11-0.3MM |
| RH | 20 ～ 90%RH |
| Power | 100W |
| Punching depth | 0-8MM |
| Air source | ≥ 0.6Mpa |
| Capacity | 350EA/H(depending on battery size) |
| Weight | 500KG |
| Equipment dimensions | LxWxH≈1250*800*1900MM |
