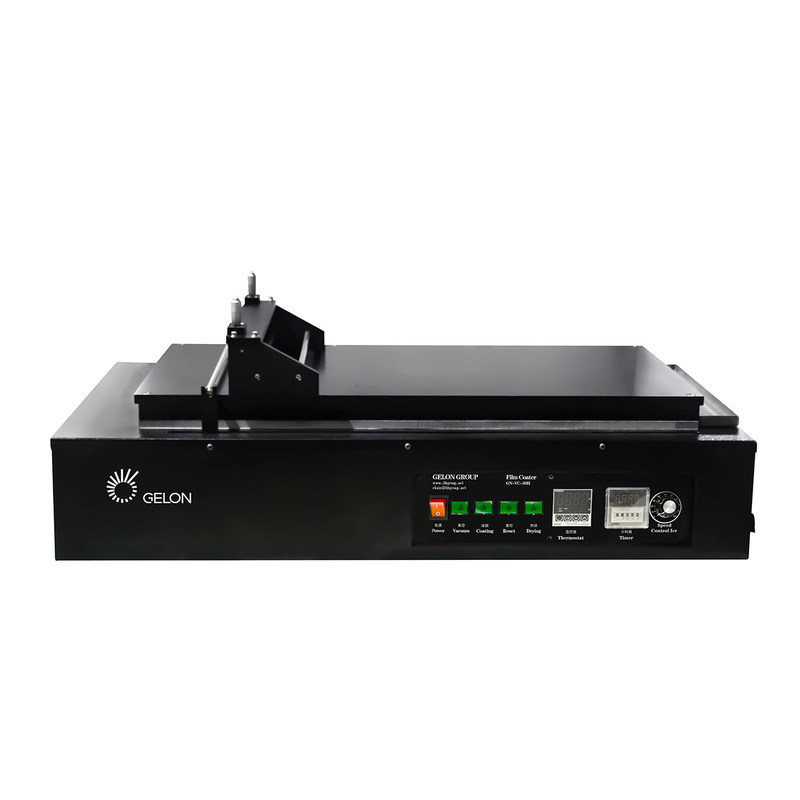

Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine

Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine
Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine

Large Image :  Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine

Product Details:
Place of Origin: china
Brand Name: Gelon
Certification: ce
Model Number: GN-VC-350H
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD5324/pcs
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging
Delivery Time: 15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine

Description
Product Name: Lab Coating Machine Application: Battery Slurry Coating
Usage: Battery Electrode Making Warranty: 1 Year
High Light:

Lab Battery Manufacturing Machine

,

Desktop battery manufacturing equipment

,

Pouch Cell Battery Manufacturing Machine

Desktop Portable Heating Coating Machine Lab Pouch Cell

Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine 0

Overview:

This product is adjusted with a micrometer to achieve the thickness of the film to be applied. The instrument is equipped with a precise adjustable membrane device, and the moving push rod pushes it to move at a constant speed at a constant speed, so as to achieve the uniformity of the slurry coating on the substrate. The cathode/anode material density is uniform throughout the sheet.



Features:

1. Drying and heating, digital display temperature control, the maximum working temperature is 150 ℃.

2. Digital display timer, the drying time can be set freely.

3. The appearance is exquisite, and the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.



Precautions:

1. Carefully wipe the applicator and body with a soft cloth dipped in alcohol before each work to keep it clean.

2. Do not collide with high-precision parts such as film applicator, micrometer or digital display, and handle it with care. When adjusting the micrometer or digital display, the left and right should be symmetrical and evenly adjusted.

3. Regularly check the screws, nuts, pins and other fasteners of various parts of the machine to prevent loosening and prevent machine quality accidents and personal accidents.

Temperature

Recommended120°C

Gas source

0.5~0.8MPa argon, nitrogen cylinder, or 0.7MPa compressed air

power supply

AC220V/50Hz.110V/60Hz

Vacuum pump capacity

≥30m³/h

Power

3000W

Equipment net weight

About 70Kg



Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine 1Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine 2

Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine 3Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine 4Lab Pouch Cell Battery Manufacturing Machine Desktop Portable Heating Coating Machine 5
