Lithium ion battery assembly line pouch cell electrode automatic stacking machine

Lithium ion battery assembly line pouch cell electrode automatic stacking machine
Lithium ion battery assembly line pouch cell electrode automatic stacking machine Lithium ion battery assembly line pouch cell electrode automatic stacking machine Lithium ion battery assembly line pouch cell electrode automatic stacking machine Lithium ion battery assembly line pouch cell electrode automatic stacking machine Lithium ion battery assembly line pouch cell electrode automatic stacking machine Lithium ion battery assembly line pouch cell electrode automatic stacking machine

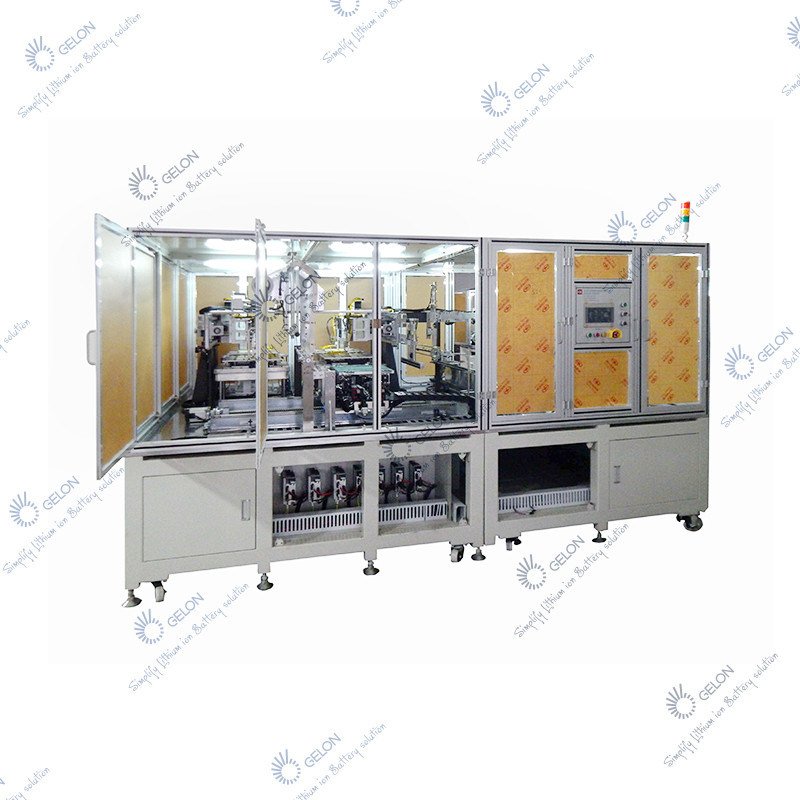

Large Image :  Lithium ion battery assembly line pouch cell electrode automatic stacking machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DA500P
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 60000-150000USD
Packaging Details: Wooden bax package
Delivery Time: 3 months
Payment Terms: L/C, T/T
Supply Ability: 30sets per month

Lithium ion battery assembly line pouch cell electrode automatic stacking machine

Description
Material Stainless Steel: Stainless Steel Efficiency: High Efficiency
Equipment Dimension: 2500×2100×1900 Mm(L×W×H) Equipment Weight: 1600KG
Power Supply: AC380V Single Phase Delivery Time: 4months

Lithium ion battery assembly line pouch cell electrode automatic stacking machine

Lithium ion battery assembly line pouch cell electrode automatic stacking machine 0



Basic parameter :

Reference Shape Size 2500×2100×1900 mm(L×W×H)
Reference Weight 1600Kg
Power source AC220V single phase;voltage pulsation±10%;
Compressed air 0.4~0.6Mpa(4-6kgf/cm2), Compressed air flow per unit 100L/min, unilization ratio 50%
Ambient temperature 20~35℃
Relative humidity 5~55%HR
Environmental cleanliness No less than 100,000 grade, no corrosive gas, liquid, explosive gas
Vacuum source Customer-owned
Air supply -0.6Mpa(Self-provided air source )
Rate of movement (failure caused by equipment only) ≥95%
Pass rate (except bad incoming materials) ≥98%



This device uses the manipulator left and right to move, in the two poles limit to pick up the electrode material, in the middle position alternately put the materials to stack, and simultaneously completes the Z-shaped folding of separator during the left and right movement. So back and forth to finish the entire core’s stacking and assembling.The manipulator adopts linear servo motion module achieving high speed, smooth and accuracy.Separator put materials with constant tension, and in the process of putting materials, there is a correction mechanism to control the neatly consistent discharge. The electrode silo adopts linear servo motion module to convert different electrode sheets.

They are mainly used for production line of lithium ion pouch battery.

  • Electrode displacement Precision servo motor control ensures accurate positioning of stacking.
  • Electrode bending double-chip device for polar bending can avoid multi-sucking and strip images at a time
  • Electrode secondary re-preposition. The alignment device ensures accurate positioning of the pole
  • The separator rectifying device can ensure the accurate alignment of the separator
  • Material Box automatic air blowing device allow the pole to drift away automatically ensures that the pole does not absorb much.
  • Secondary counter-position blowing dust removal device make sure the laminated stacking electrodes are free of dust
  • Positive and negative electrode lifter guarantee the positive and negative electrodes are always at the same height;
  • The separator unwinding has the function of constant tension, which ensures that the separator tension is basically constant when stacking.
  • The separator is cut off automatically;
  • No tail coil;
  • Battery core automatic taping.

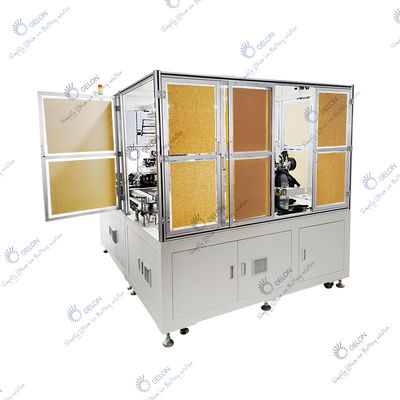

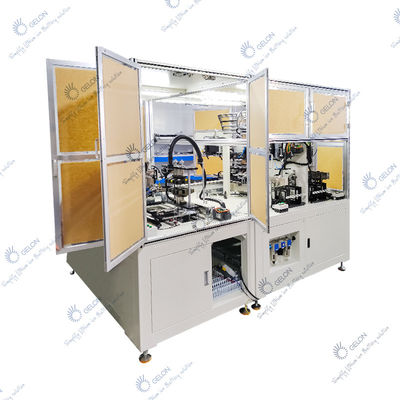

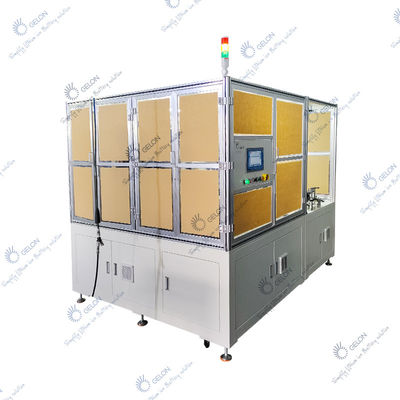

Lithium ion battery assembly line pouch cell electrode automatic stacking machine 1Lithium ion battery assembly line pouch cell electrode automatic stacking machine 2Lithium ion battery assembly line pouch cell electrode automatic stacking machine 3
