Product Details:
|
| Product Name: | 4680 Battery Winding Machine | Production Capacity: | ≥15ppm |
|---|---|---|---|
| OEE: | ≥75% | Equipment Failure Rate: | ≤2% |
| Qualification Rate: | ≥ 99.5% (after The Official Production Of Equipment | Mechanism1: | Electrode Automatic Unwinding Mechanism |
| Mechanism2: | Automatic Tape Splicing Mechanism For Electrode Biaxial Reel Change | Mechanism3: | Automatic Correction Mechanism Of Electrode And Separator |
| Mechanism4: | CCD | Mechanism5: | Electrode Dust Removal And Iron Removal Mechanism |
| Warranty: | One Year | ||
| High Light: | 4680 Tab battery equipment,battery Automatic winding machine,multi Tab battery equipment |
||

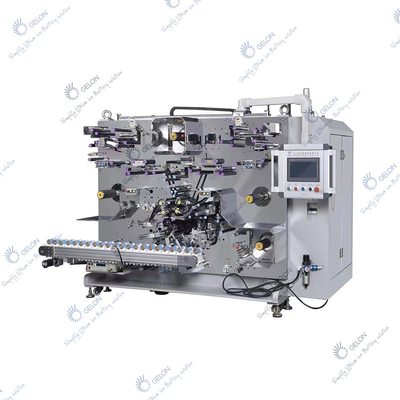

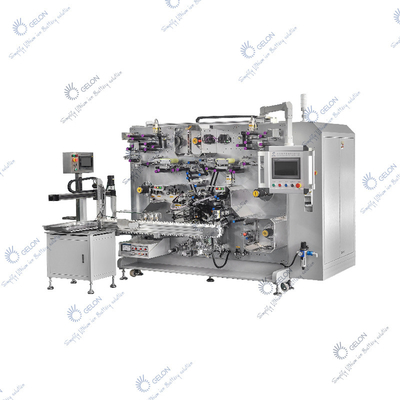

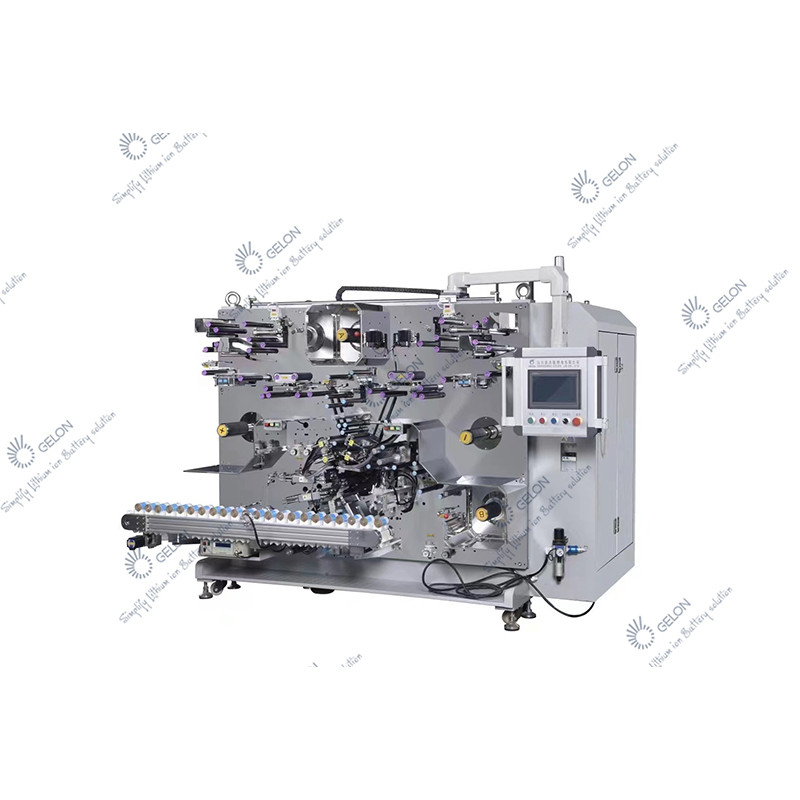

4680 Multi Tab Battery Equipment 4680 Battery Production Line 4680 Battery Automatic Winding Machine
This equipment is an automatic lithium-ion battery cell winding machine for power lithium battery cells, which is mainly used for the winding and forming of cylindrical cells. This equipment adopts a three-roll three-station needle winding structure;
Equipment configuration
1. Equipment size: about 5800mm (length) × 1800mm (width) × 2450mm (height); (excluding the fan, for reference only, the final equipment size is subject to the actual design).
2. Workshop ceiling net height from floor surface: ≥ 2600mm (total equipment height ≤ 2550mm).
3. Equipment weight: about 12.3T (equipment installation site ground bearing ≥ 1000KG/㎡).
4. Appearance color: standard ; or customer provided color plate (made according to customer color plate).
5. Working power: AC380V±10﹪, power 65KW, frequency 50Hz.
6. Compressed air: 0.5~0.7 MPa, using flow rate about 3000L/min, usage rate 90%.
7. Vacuum source: minimum -60Kpa.
8. Using environment: temperature 10～35℃, dew point below 20℃, no combustible and corrosive gas, no dust (cleanliness not less than 10K Class).
Equipment noise: ≤75db (measured 1m from the outer wall of the equipment)
Adapt to below Incoming materials
| material | Hang Scroll no. | width (mm) |
Single piece length (mm) |
thickness (μm) |
Thickness difference (m) | Roller diameter (mm) | Max outer diameter of coil (mm) |
weight (KG) |
| Cathode electrode | 2 | 60～150 | 1600～6000 | 60～280 | ≤3μm | Ф76.2±1 | Ф 800 | Max 200 |
| Anode electrode | 2 | 60～150 | 1600～6000 | 60～280 | ≤3μm | Ф76.2±1 | Ф 800 | Max 200 |
| Separator | 2 | 60～150 | 1600～6100 | 8～25 | — | Ф76.2±1 | Ф 600 | Max 80 |
| Tape 1 | 2 | 10～30 | 60～120 | 15～40 | — | Ф76.2±1 | Ф 200 | — |
