Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-PM-2L
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD11240-13000/SET
Packaging Details: Wooden Case/Can Custom
Delivery Time: about 20days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month

Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller

Description
Max. Loading Volume (L): 2 Product Name: Planetary Mixer
Application: Powder, Battery Coating Slurry Processing Core Components: Motor, PLC
Mixing Shaft/propeller Rotate Speed: 0~65rpm Can Be Adjustable Linear Speed: 0~12m/s
Barrel Volume (L): 2 Range Of Spindle Speed(r.p.m): 1 - 50 R.p.m

Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller

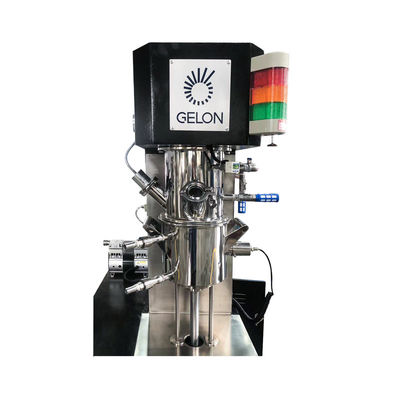

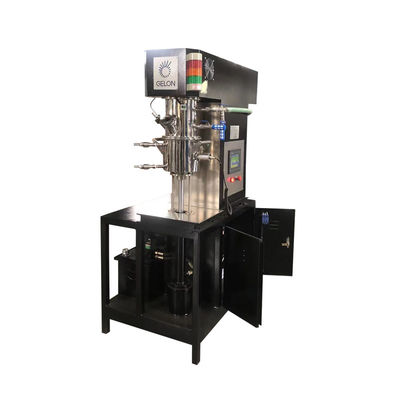

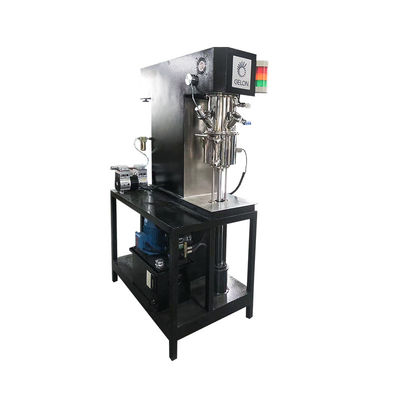

Tri-Shaft Planetary Vacuum Mixer with a 2-liter container and PLC Touch Panel Control. Such a vacuum mixer incorporates the unique tri-shaft stirring design to ensure a gas-bubble free blending of complex materials under vacuum with extreme uniformity.
Furthermore, an observation window on the mixing tank provides a better way to monitor the entire mixing process. GN-PM-2L is an excellent tool for preparing LiCoO3, LiFePO4, Phosphorus, and ceramic slurries and provides much better results in dispersion and uniformity.

Feature:
1.Double mixing slurry and a plurality of serrated disks mounted on a high-speed dispersing shaft rotate and rotate simultaneously.
2.Combined the low-clearance desigh of slurry ,no dead angle .
3.Strong kneading interference and up-down/left-rihgt circulation movement of low speed agitator ,and high-speed shearing and dispersing action of dispersing plate ,the materials is fully dispersed and mixed without deposition.
Power 1.85KW
Working voltage 380V/50Hz,3 phase
Effective volume 2L
Main shaft speed 0-65rpm,can be adjustable
Stirring speed 0-105rpm,can be adjustable
Dispersing speed 0-3000rpm,can be adjustable

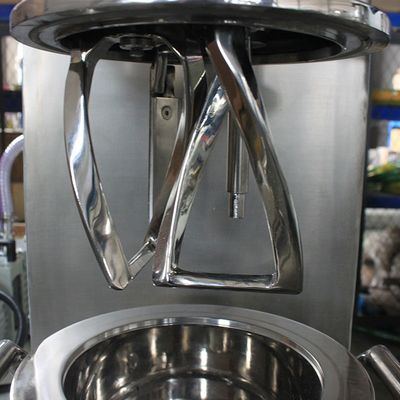

Mixing blades 3 axis planetary mixing
2 stirring blade
1 dispersing blade
1 spatula
Accessories vacuum pump and water chiller can be included



Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller 0Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller 1Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller 2Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller 3

Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller 4Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller 5

Lithium Battery Machine 2 Liter Volume Triple Shaft Planetary Vacuum Mixer Vacuum Pump Feeding Device Water Chiller 6

We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
