Cylinder Cell Spot Welder 18650 Battery Welder Machine Spot Welding Machine Nickel Tab Welding Production Lineb Gelon

Large Image : Cylinder Cell Spot Welder 18650 Battery Welder Machine Spot Welding Machine Nickel Tab Welding Production Lineb Gelon

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE,ISO
Model Number:	GN-G800W

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD2100/PCS
Packaging Details:	wood
Delivery Time:	5-8work days
Payment Terms:	Western Union, T/T, MoneyGram
Supply Ability:	100Pcs/days

Contact Now

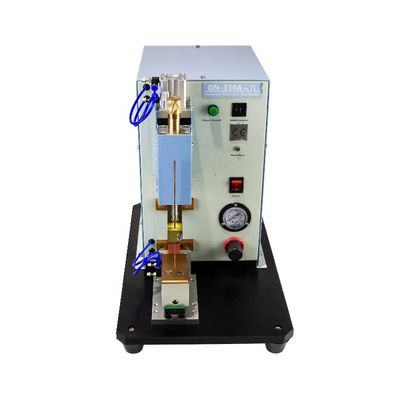

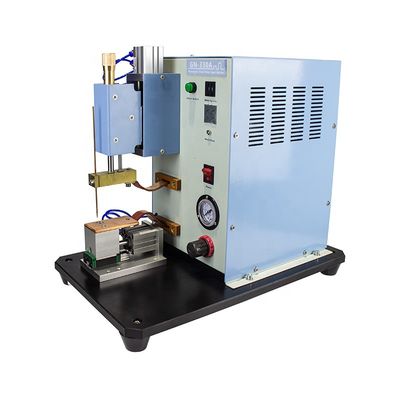

Cylinder Cell Spot Welder 18650 Battery Welder Machine Spot Welding Machine Nickel Tab Welding Production Lineb Gelon

Description

Product Description

Produce:

This precise pneumatic single point welding machine is specifically designed for professional Li-ion Battery Research.

1. It is mainly used for welding the cylinder core's negative terminal (Nickel tab) to the bottom of the cylinder case.

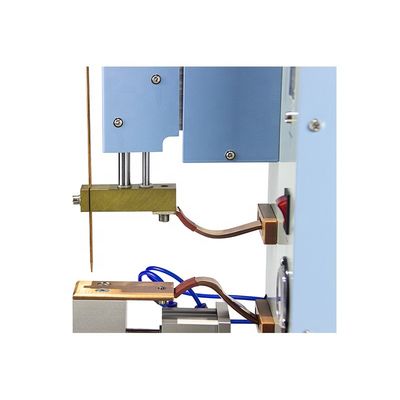

2.A diameter 2mm x 180mm length welding needle is easily inserted into the cylinder case to weld at the bottom.

3.This machine is controlled by the microcontroller, which is very easy to operate and can provide stable performance .

SPECIFICATIONS
Power Supply		220-240V, Single Phase 50/60Hz
Max. Power		10KW

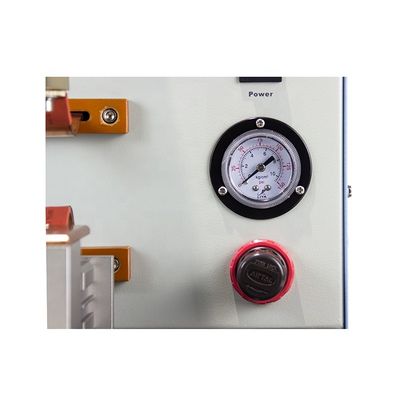

Air Pressure Range		0.1 - 0.8 MPa ( air compressor is required, pls order at related product below )
Welding Current		0-99A
Welding Thickness		0.03 - 0.25mm
Operation Temperature		-20 - 40ºC
Controller		Controlled by microcontroller,achieve monopulse, dipulse, mutiple-pulse welding
Pressure		Pressure applied on the welding needle can be adjusted independently and easy to operate
Design		Unique Photoelectric switch design Good appearance, small size and light weight *Welding spot looks beautiful,free spark, stable welding current
Weight		45 kg (100 lbs)
Product Dimensions		30.5cm(L) x 50.5cm(W) x 49cm(H)
Warranty		one year limited with lifetime support

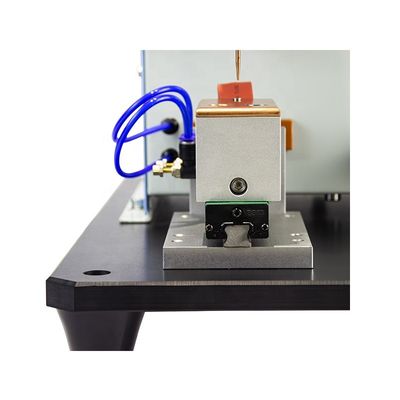

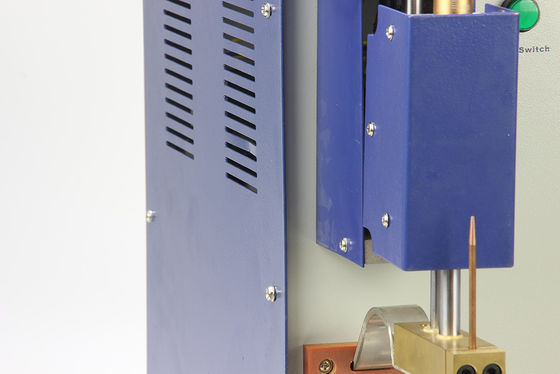

Picture:

Gelon High Quality Spot Welding Machine/Welder 18650 Battery Welding Machine Lithium Ion Battery India Ordinary Product Provided

Related Products: Nickel/Steel Strips Lithium Ion Battery Cathode Production Materials Licoo2 Lco Powder

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.

Lithium Ion Battery Anode Materials-Artificial Graphite with High Capacity

Lithium Ion Battery Anode Materials-Artificial Graphite with High Capacity

RFQ:

Q: Are you trading company or manufacturer ?
A: We are both manufacturer & trading company.

Q: Can I visit your factory?
A:Yes,very welcome.

Q:How can I visit your company?
A:You can take flight to Linyi or Shenzhen airport ,we can pick you up there.
Please mail us when you have the visit plan,we will confirm the schedule with you.

Q:What is your terms of delivery?
A:We accept EXW, FOB, CIF,DAP etc. You can choose the one which is the most convenient or cost effective for you.

Q: How is your delivery time?
A: 1-3 days for sample orders or some equipments in stock.
10-30 days for mass production order(based on different quantities)

Q: What about the after-sale service?
A: One years warranty and lifetime free technical support.

Q: Do you provide other equipments or materials?
A: Yes, we provide full set lithium ion battery materials, equipments and technology for lab line ,pilot line and production line.
