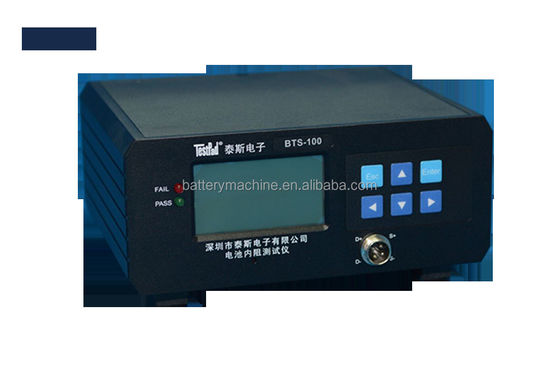

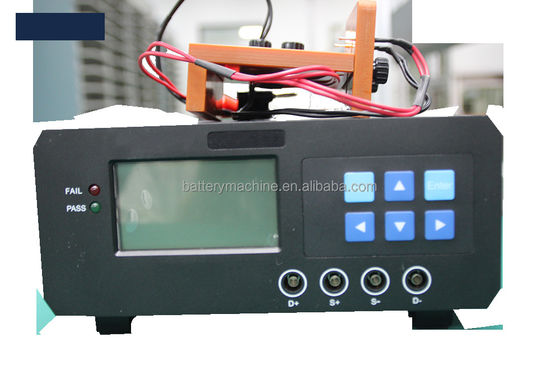

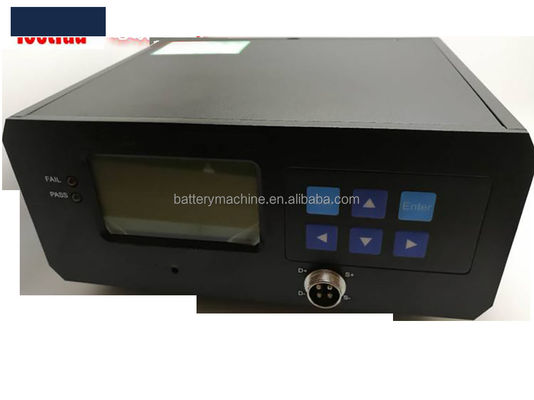

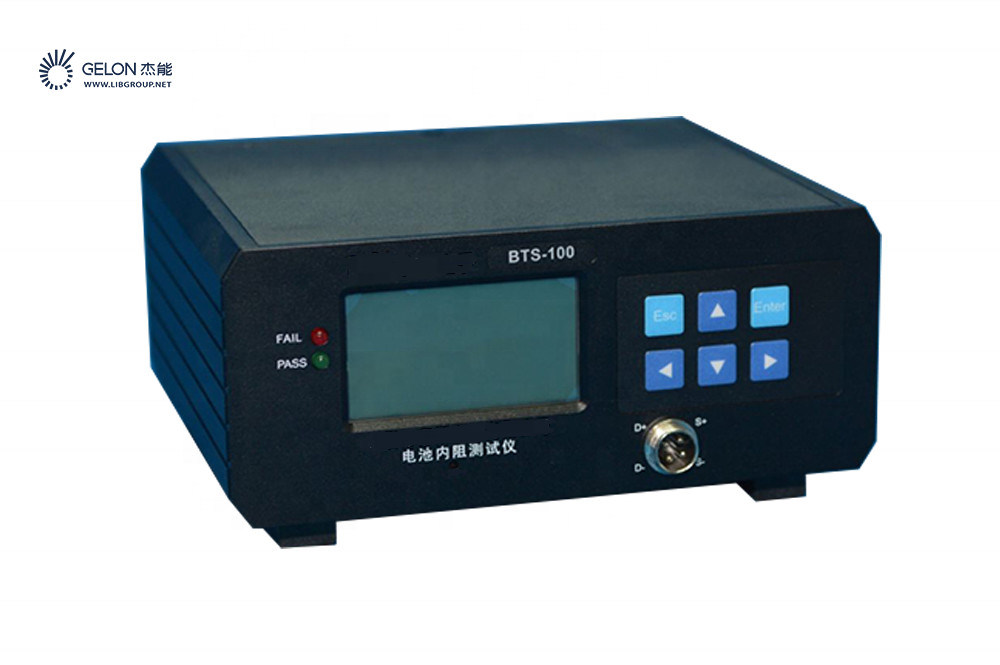

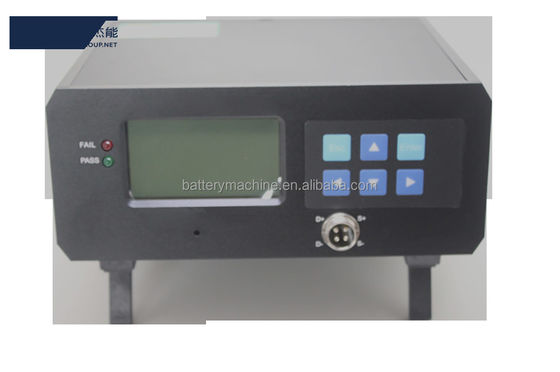

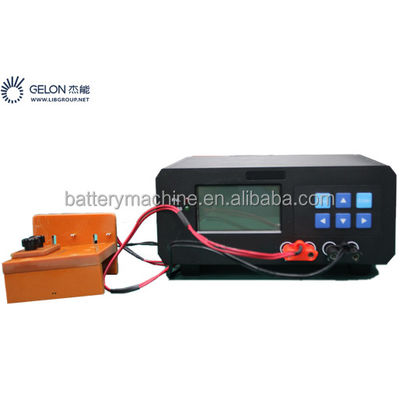

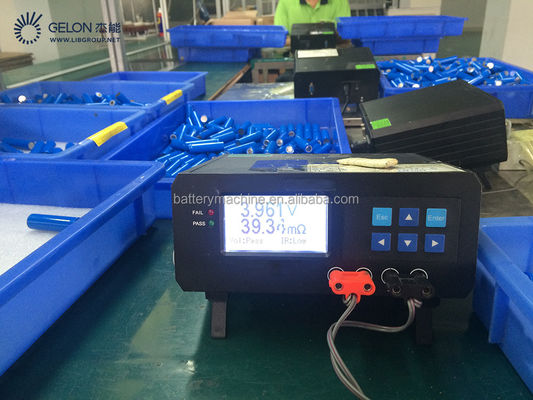

Product Details:
|
1, the initialization of the battery (charging)
2, the battery load voltage measurement
3, battery AC resistance measurement
4, the battery discharge performance test
5, battery discharge protection function detects overcurrent
6, the battery short-circuit protection function tests
7, the battery charging performance detection Detection
8, the resistance (to identify resistors, thermistors, VFR or CFR resistance) test
9, the auxiliary battery voltage (eg HDQ voltage) detection
10, the insulation resistance testing
Item |
Test range |
Resolution |
Accuracy |
battery voltage |
0-10V |
0.0001V |
±( 0.05%RD+0.2mV) |
0-20V |
0.0001V |
±( 0.05%RD+0. 3 mV) |
|
Internal Resistant |
0- 1 000mΩ |
0.1 mΩ |
±(0. 1%RD+0.5m Ω ) |
Electric current |
0-15A |
0.001A |
±( 0. 1 %RD+ 5 mA) |
| Resistance | 0-1KΩ |
0.001 KΩ |
±( 0.5%RD+0.005 KΩ ) |
1KΩ-10 KΩ |
0.001 KΩ |
±( 0.5%RD+0.005 KΩ ) |
|
10 KΩ-100 KΩ |
0.01 KΩ |
±( 0.5%RD+0.05 KΩ ) |
|
100 KΩ-1MΩ |
0.1 KΩ |
±( 0.5%RD+0.5 KΩ ) |
|
Boost Voltage |
0-5V |
0.0001V |
±( 0.1%RD+0.001V) |
Insulated resistance |
0-100 MΩ |
0.01 MΩ |
±(0. 1%RD+0.05M Ω ) |
